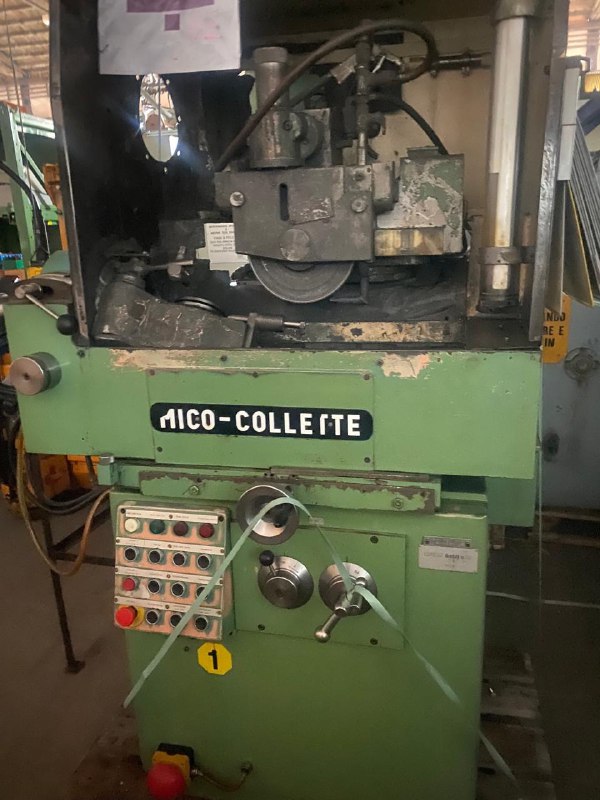

GEAR SHAPER MICO COLLETTE DH A015

MAKE: MICO COLLET

MODEL: DH A015

NUMBER OF TABLE STROKES:-per minute 20-80

LENGTH OF TABLE STROKES:-infinitely variable from 5-115mm

WHEEL SPINDLE SPEEDS:-2500 and 3200 r.p.m.

Grinding wheel diam. for standard application 200mm

max. permissible 250mm

bore diameter 76.2 mm = 3"

Advance to grinding position by means of push-button

AUTOMATIC INFEED:-Infeed range 1.1mm

Diminishing feed 0-0,035mm

AUTOMATIC GRINDING WHEEL :-Dressing infeed compensation

Provisions for manual dressing with the aid of push-button

2 Dressing speeds for rough and finish grinding

Automatic switching over of the dressing speed

Dressing performed with table in loading positions

CENTRAL LUBRICATION:- automatic

LIGHTING :-40 W - 24 Volt

MOTOR RATINGS :-Wheel motor  1 KW 3000 r.p.m.

Hydraulic motor 0,75 KW 1500 r.p.m.

Coolant pump 0,1 KW 3000 r.p.m.

Motor for spur cutters  0,25 KW 1000 r.p.m.
