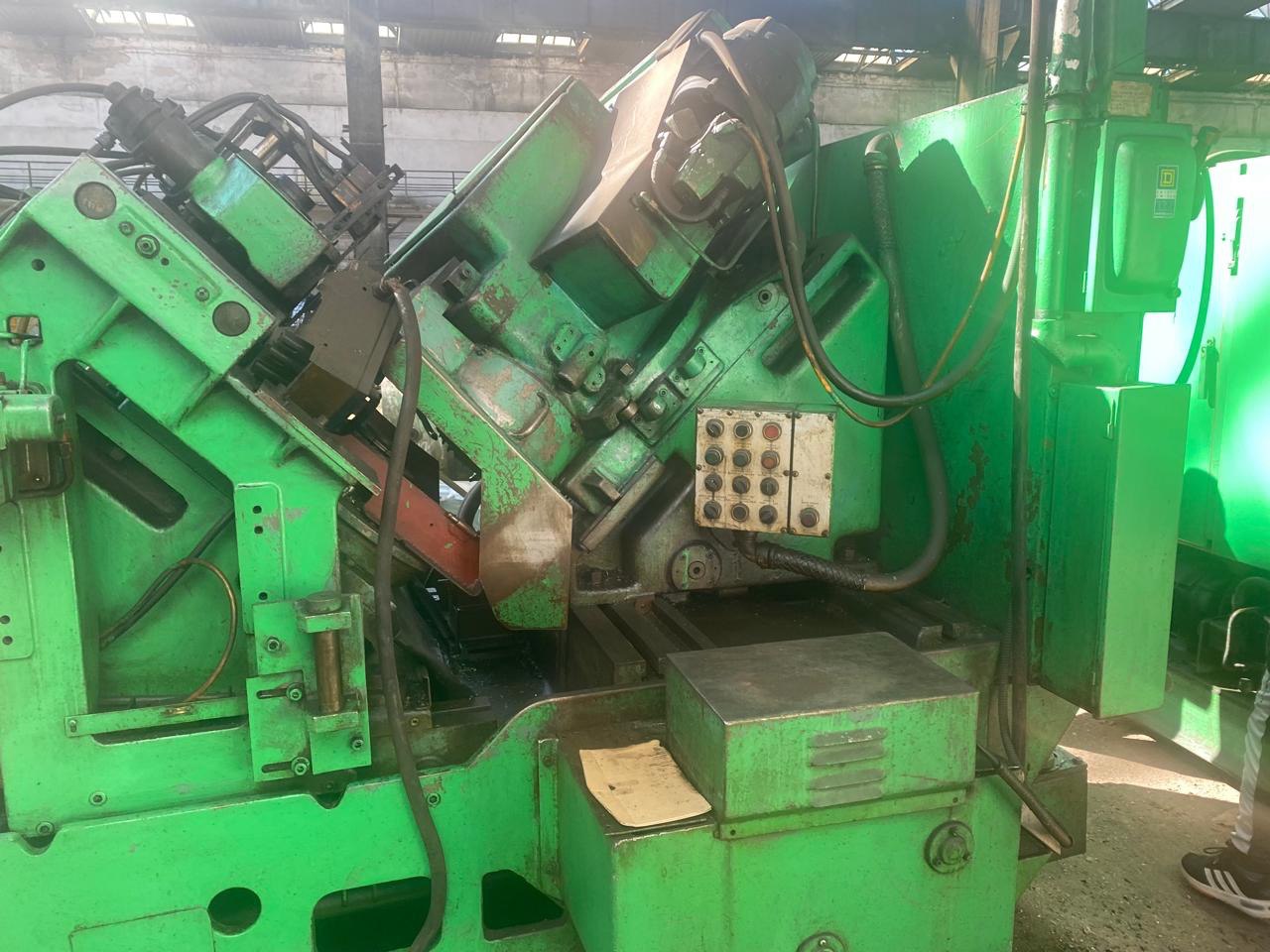

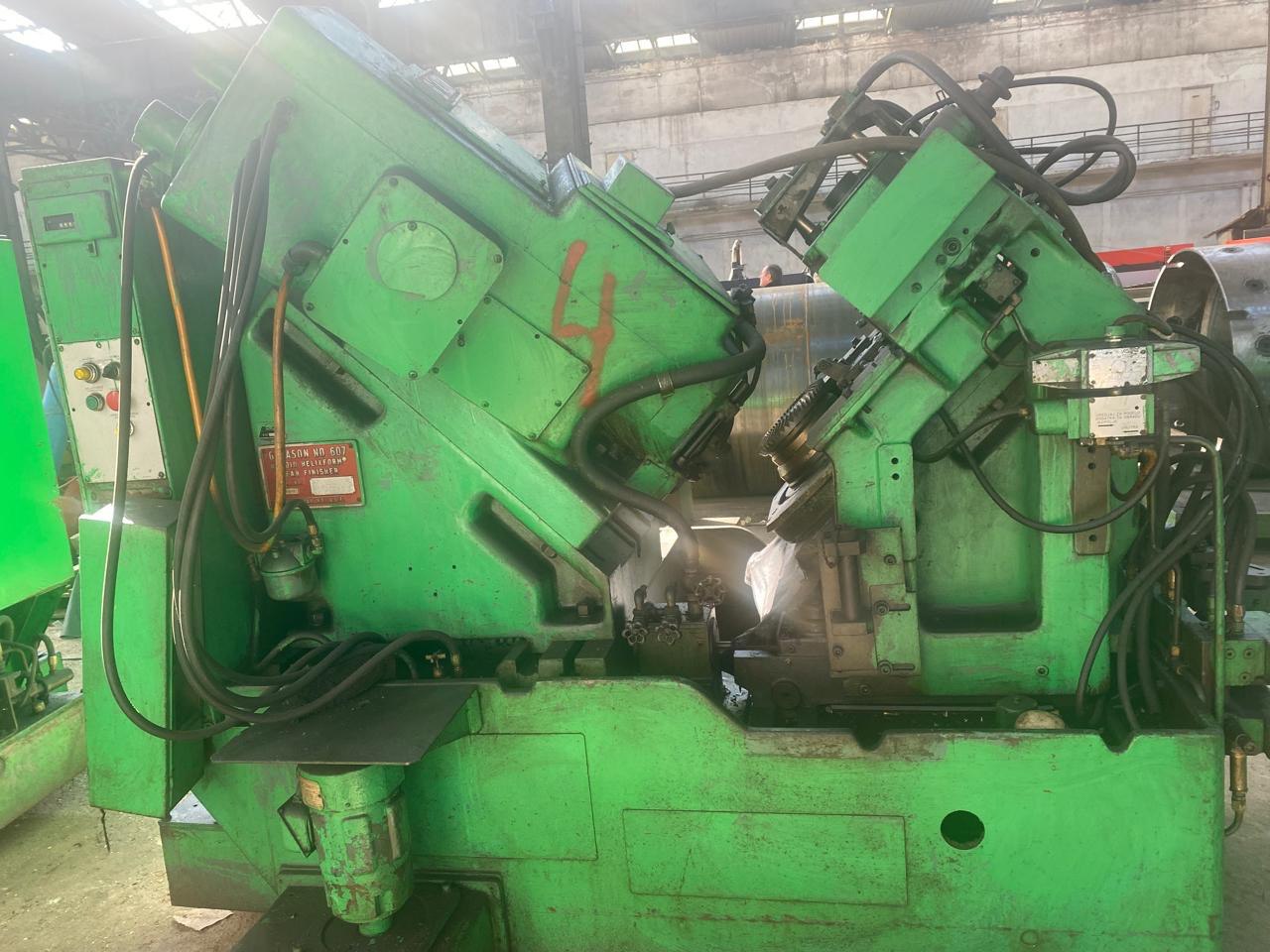

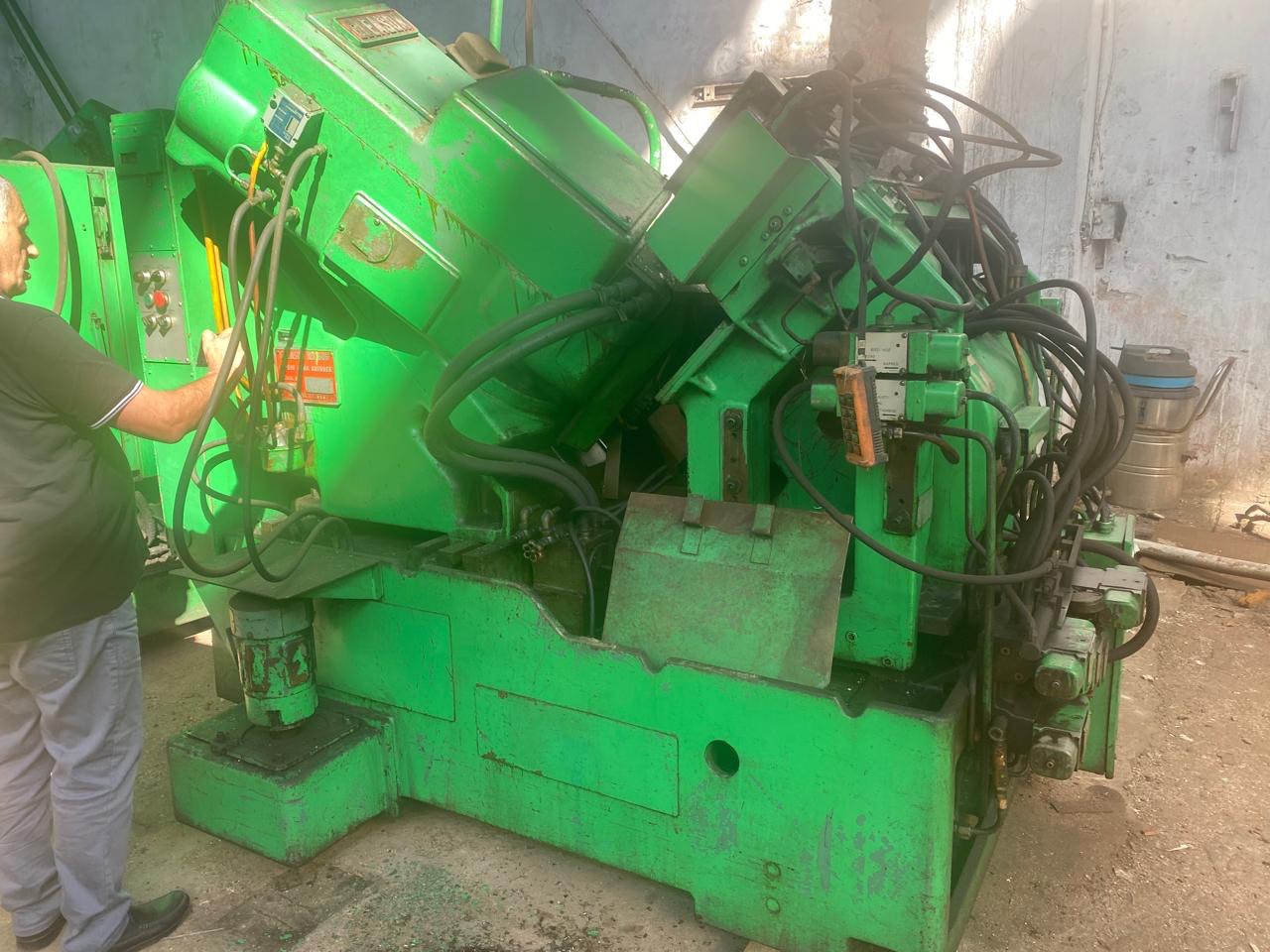

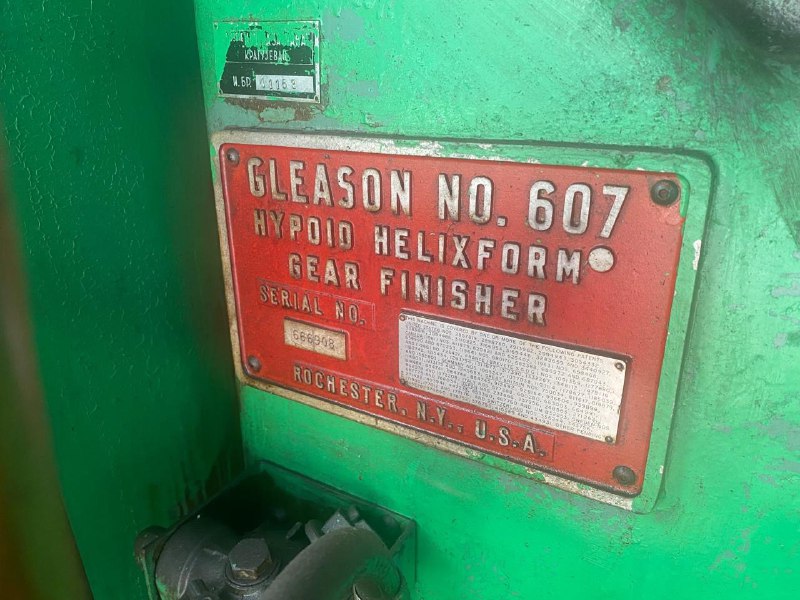

MAKE: GLEASON
MODEL: 607
Pitch Diameter (Max) 10 to 1 ratio:-
266mm, 2.5 to 1 ratio:- 238mm.
Diametral pitch (Coarsest) 10mod.
Extreme ratio (Minimum) 2.5:1
Face width (Maximum) 41mm
Full depth 19mm
Number of Teeth 20-150
Diameter taper hole at large end 3 27/64 inch
Taper per foot 1/2 inch
Depth of taper 5/8 inch
Main Motor 3HP 1500rpm,
Hydraulic Motor 3HP 1500 rpm
Coolant motor 1HP 1500rpm
Magnetic chip separator 1/8HP 1500 rpm
Engineering Tools & Machines is a trusted name among second hand machine dealers in India. With over two decades of experience, ETM45 specializes in providing high-quality pre-owned industrial machinery, including CNC machines, lathes, milling machines, and drilling equipment. Each machine is thoroughly inspected to ensure reliability and performance, offering cost-effective solutions for businesses across various industries.
