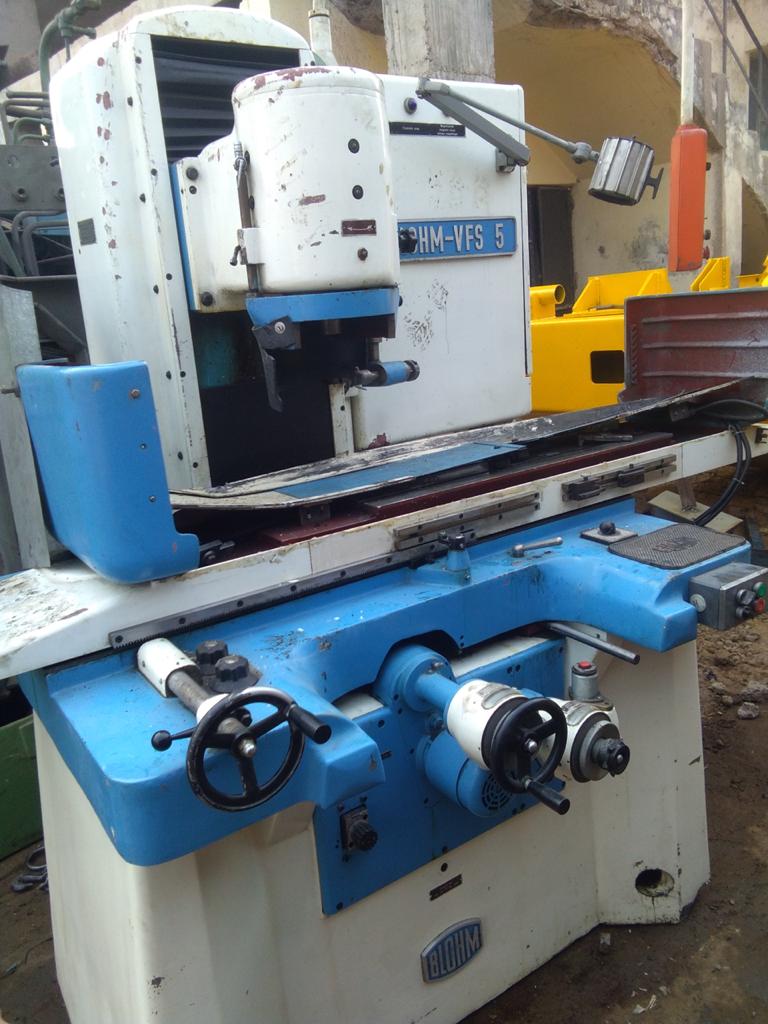

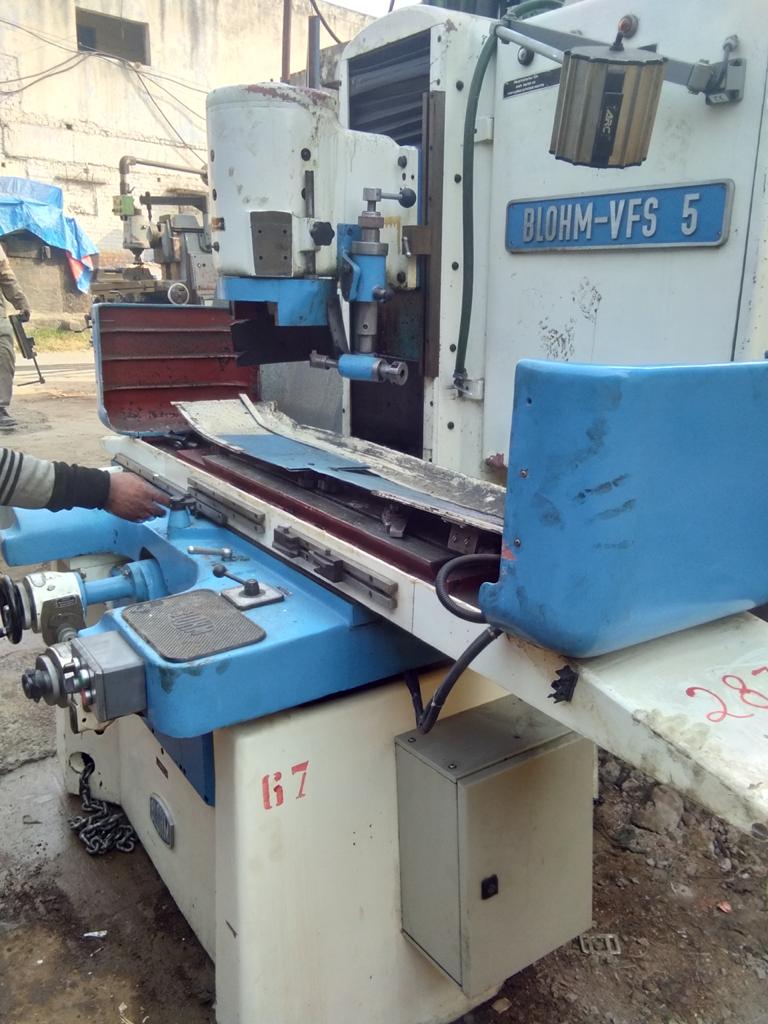

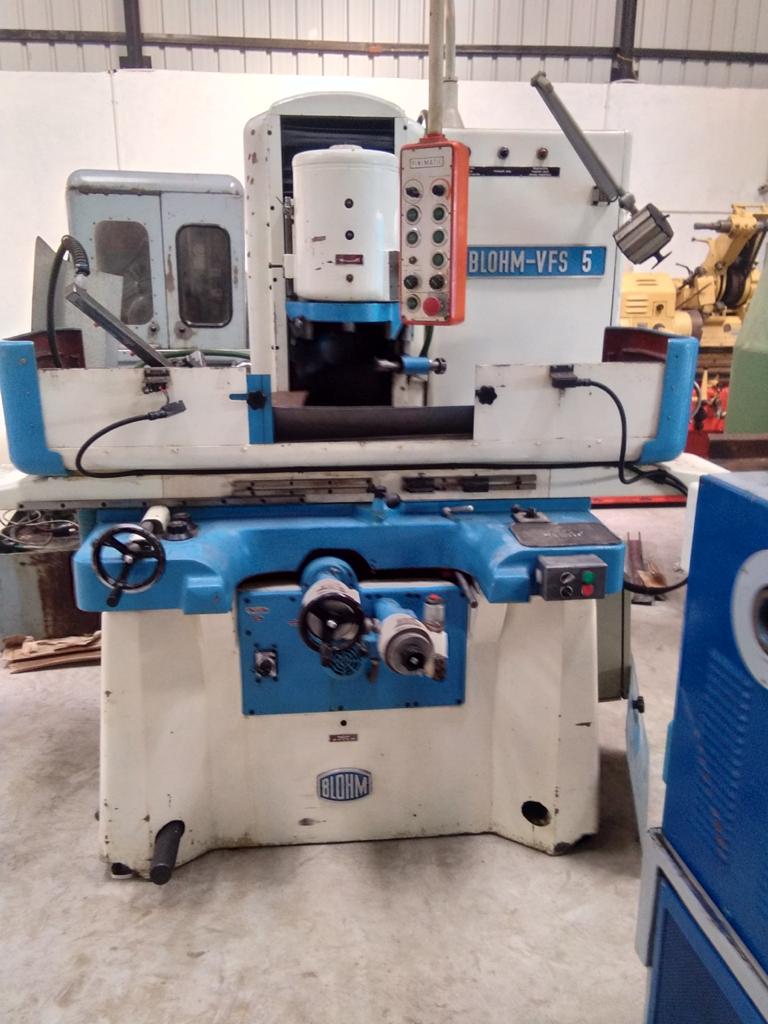

CUP GRINDER BLOHM VFS 5

🔹 Manufacturer: Blohm Maschinen GmbH (Germany)
🔹 Type: Cup Grinding / Surface Grinding Machine
🔹 Model: VFS 5

Technical Specifications:

• Maximum Grinding Length: 450 – 500 mm

• Maximum Grinding Width: 200 – 230 mm

• Table Size: Approximately 760 × 200 mm

• Max. Workpiece Height: 250 mm (approx.)

• Cup Wheel Diameter: 200 – 225 mm

• Wheel Bore Diameter: 51 mm

• Vertical Feed Adjustment: Stepless / Micrometric feed (0.001 mm precision)

• Table Feed Speed: Variable, 0.5 – 30 m/min

• Spindle Motor Power: 5 – 7.5 HP (depending on version)

• Machine Weight: Around 2,000 – 2,500 kg

• Control Type: Manual or Semi-Automatic (depending on configuration)

• Applications:

  • Precision surface grinding

  • Die and tool making

  • High-accuracy component finishing
