| Feature | Specification |
|---|---|
| Machine Type | Hypoid / Spiral-Bevel Gear Generator (Generator) |

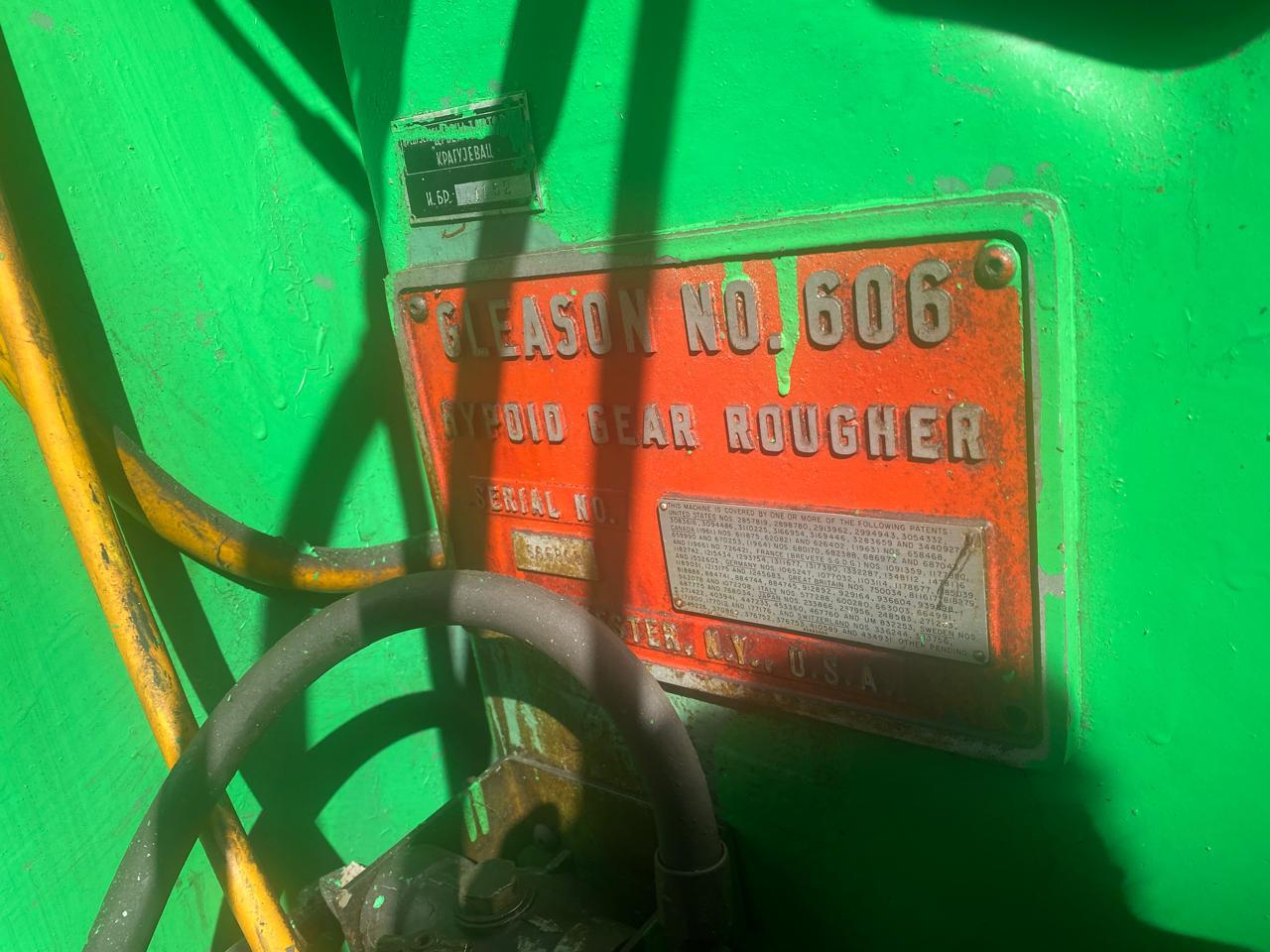

| Brand & Model | Gleason No. 606 |
| Max Pitch Diameter (10:1) | ~10.5″ (266 mm) |
| Max Pitch Diameter (2.5:1) | ~9.375″ (238 mm) |
| Coarsest Diametral Pitch | 2.5 DP (~10 Module) |
| Max Face Width | ~1.625″ (41 mm) |
| Full Depth Capability | ~0.75″ (19 mm) |
| Number of Teeth | 20 – 150 |
| Work Spindle Taper & Size | ~3‑27/64″ diameter taper hole, ½″ per foot taper, depth ~5/8″ |
| Cutter Diameters Supported | 5″, 6″, 7.5″, 9″ |
| Cutter Speed Range | ~82 – 215 ft/min (~25 – 65 m/min) |
| Feed Rate (sec/tooth) | ~2 – 10 sec per tooth |
| Main Motor | 7.5 HP (~5.6 kW) @ 1500 rpm |
| Hydraulic Motor | 3 HP (~2.2 kW) @ 1500 rpm |
| Coolant Pump Motor | 1.5 HP (~1.1 kW) @ 1500 rpm |
| Chip Separator Motor | 0.125 HP (~0.09 kW) @ 1500 rpm |
| Floor Space Requirement | ~92" × 75" (~233 × 190 cm) |
| Approx Height | ~80″ (~203 cm) |
| Net Weight | ~13,500 lbs (~6,123 kg) |
| Shipping Weight (Crated) | ~14,500 lbs (~6,577 kg) |
| Typical Features | Hydraulic chucking; auto loading/unloading; coolant; chip conveyor; chamfering; index device |
| Typical Applications | Production of spiral bevel or hypoid gears—rigid design for high-quality gear sets |
