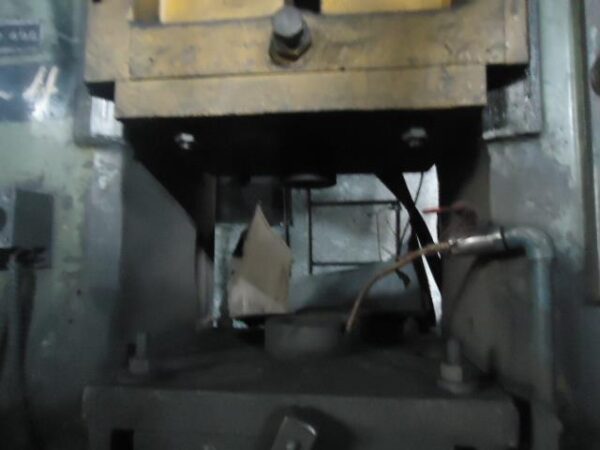

KNUCKLE JOINT PRESS 300 TON

Type: Knuckle Joint Mechanical Press
Pressing Capacity: 300 Tons
Drive Type: Mechanical (with flywheel and clutch)
Slide Stroke Length: Approx. 100 – 300 mm (varies)
Strokes per Minute (SPM): 20 – 40 (depending on stroke length)
Shut Height: Approx. 400 – 600 mm (adjustable)
Slide Adjustment: Manual/Motorized, approx. 80 – 120 mm
Bolster Size: Customizable, e.g., 900 x 1000 mm
Slide Area: Depends on design, e.g., 600 x 800 mm
Main Motor Power: Approx. 15 – 30 HP
