| Feature | Specification / Description |
|---|---|

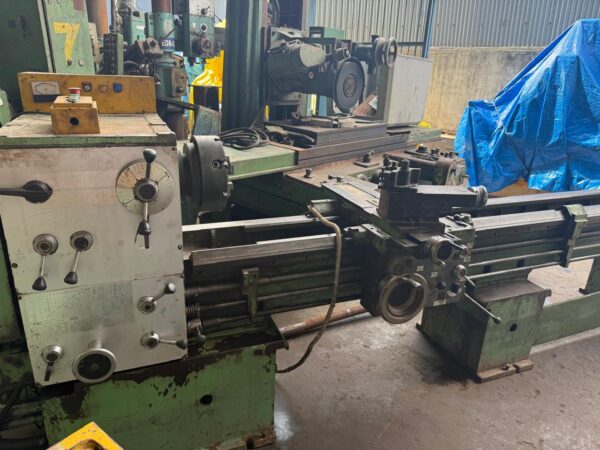

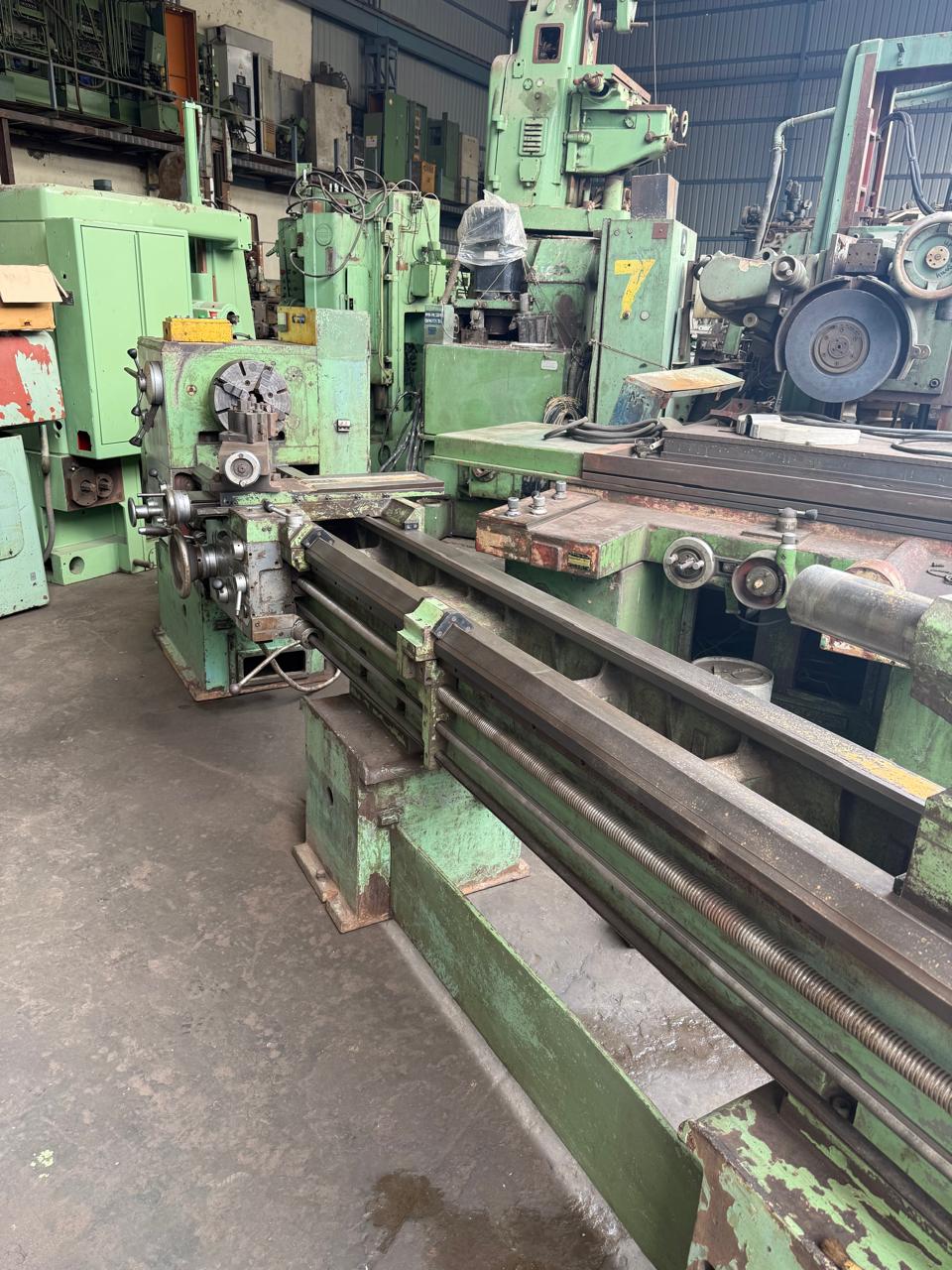

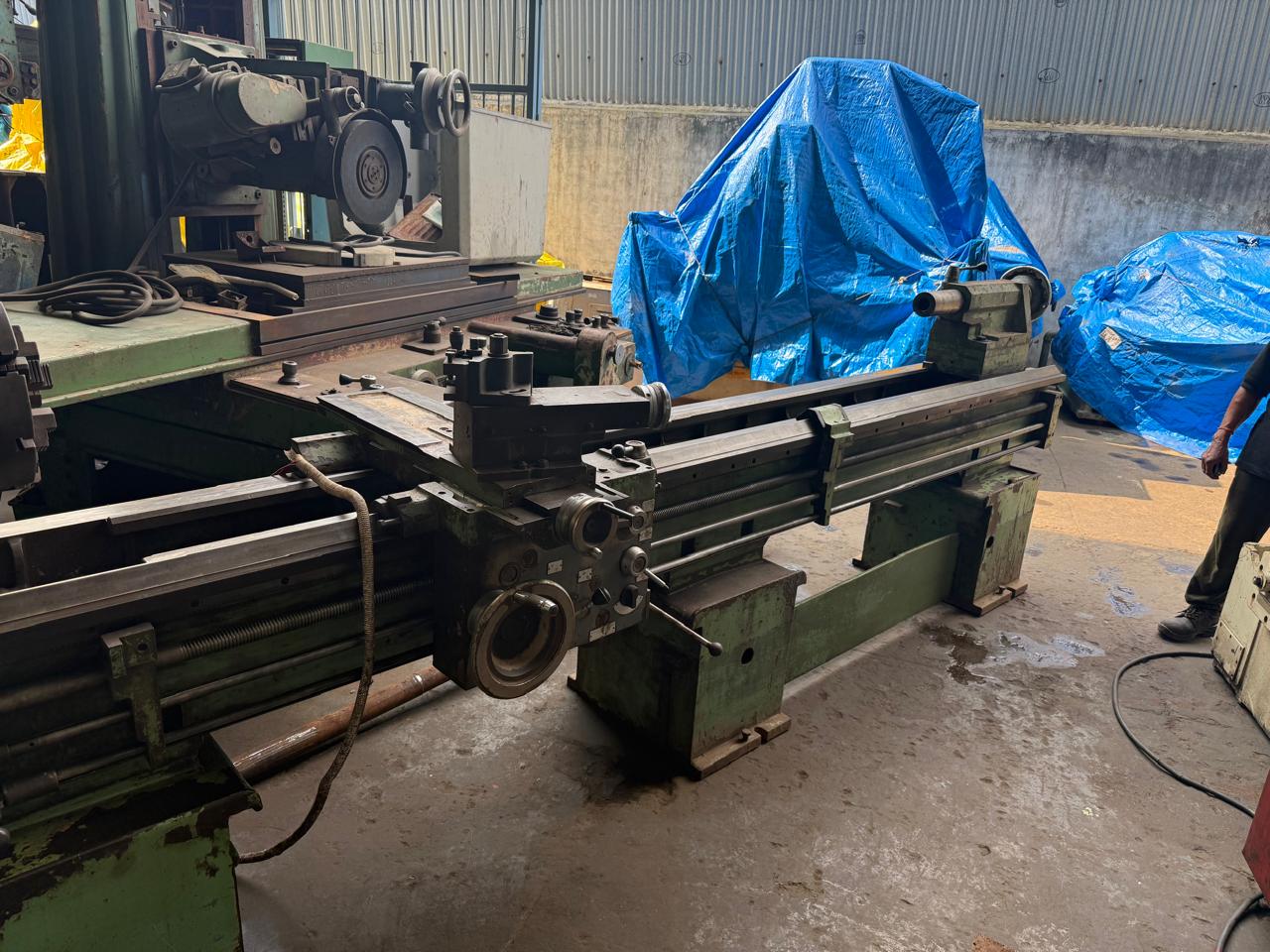

| Machine Type | Center Lathe |
| Make | HMT |
| Model | NH 26 |
| Bed Length | 3000 mm (3 Meter) |
| Swing Over Bed | 520 mm |
| Swing Over Cross Slide | Approx. 320 mm |
| Distance Between Centers | Approx. 2000 – 2500 mm (based on version) |
| Spindle Bore | 52 mm |
| Spindle Speed Range | 40 – 2040 RPM (typically 12 or more speeds) |
| Spindle Nose | Camlock / Threaded (usually Camlock D1-6) |
| Tailstock Quill Diameter | Approx. 75 mm |
| Tailstock Quill Travel | Approx. 150 mm |
Engineering Tools & Machines is a trusted name among second hand machine dealers in India. With over two decades of experience, ETM45 specializes in providing high-quality pre-owned industrial machinery, including CNC machines, lathes, milling machines, and drilling equipment. Each machine is thoroughly inspected to ensure reliability and performance, offering cost-effective solutions for businesses across various industries.
