| Specification | Details |
|---|---|

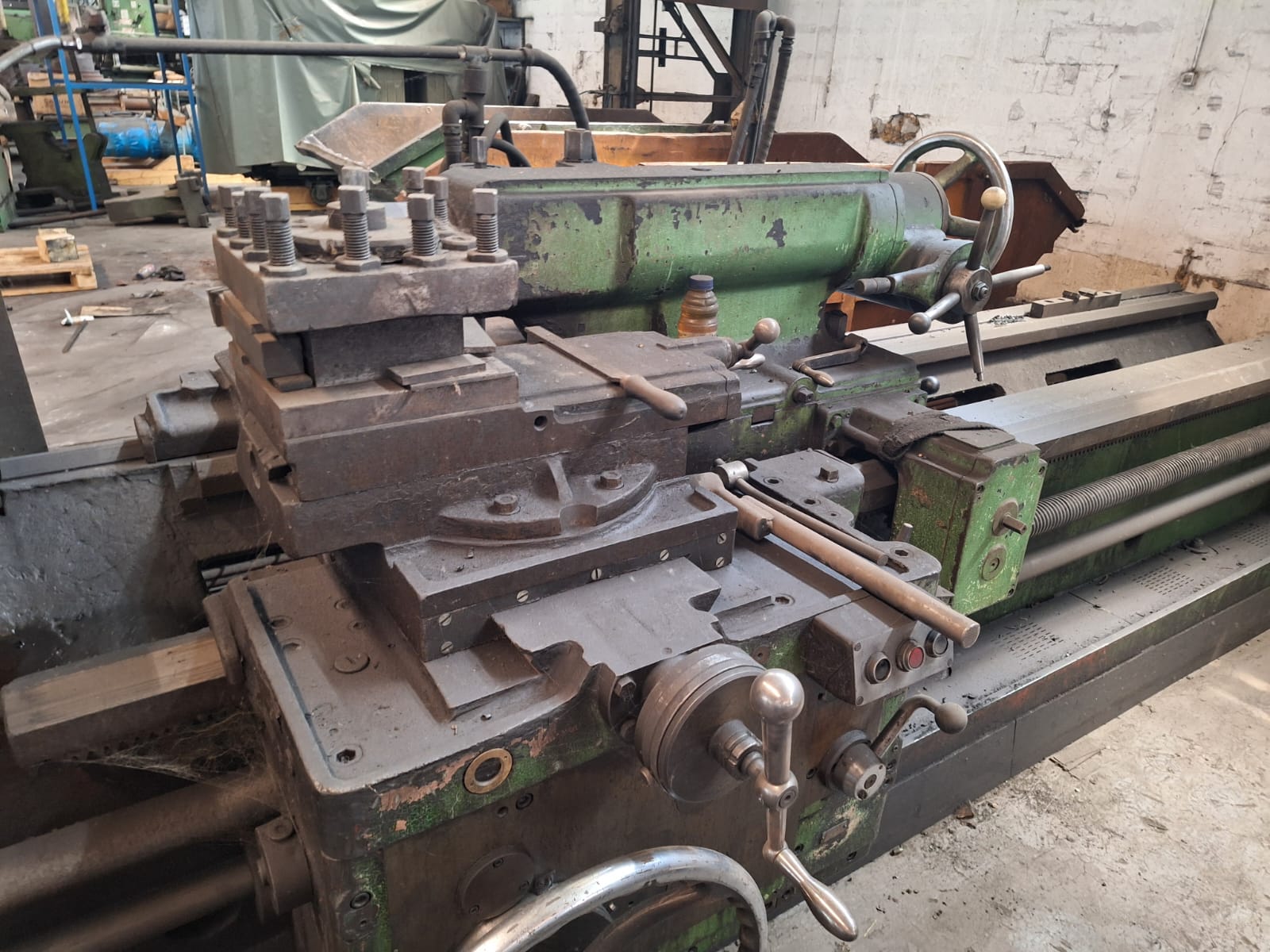

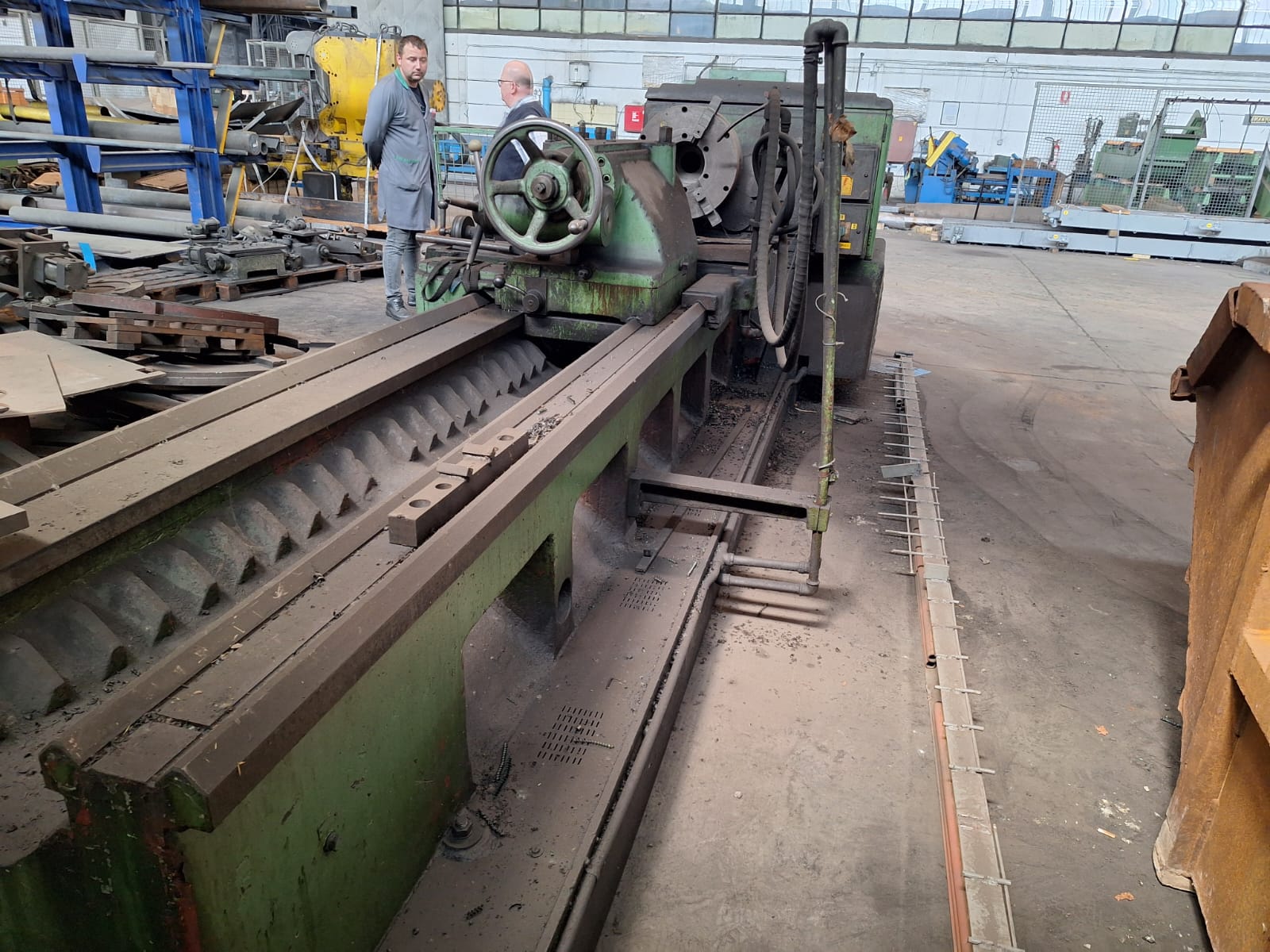

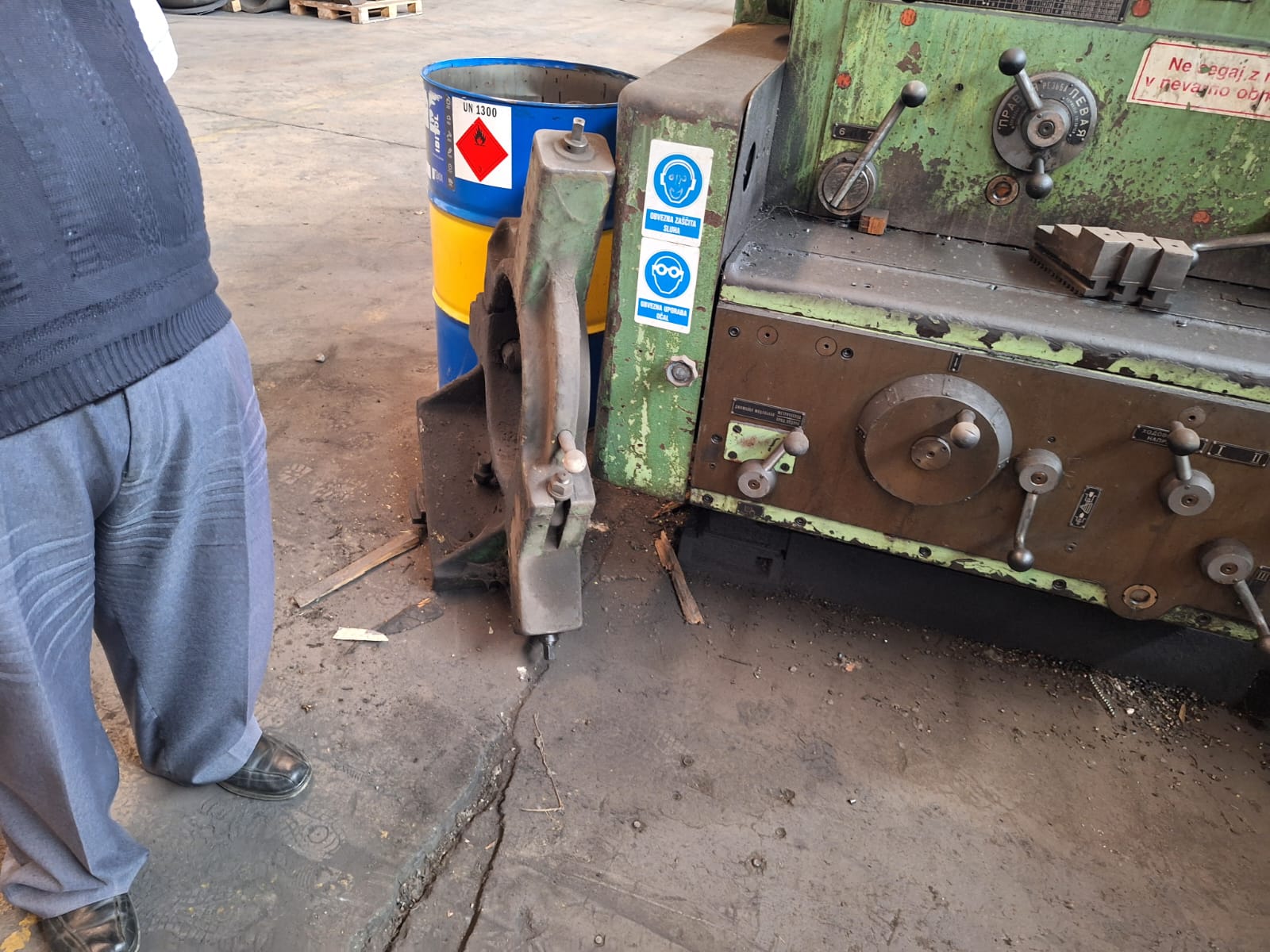

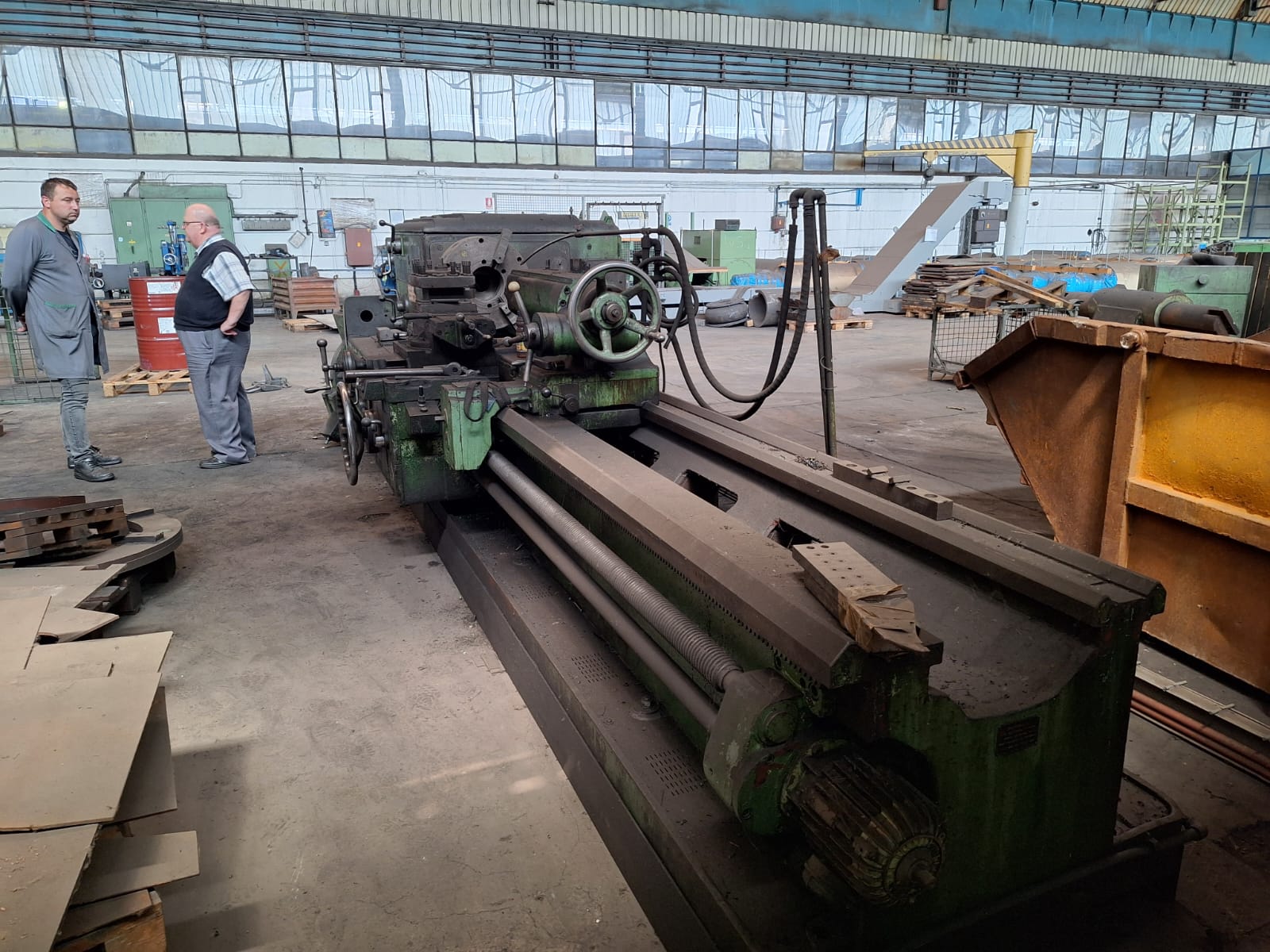

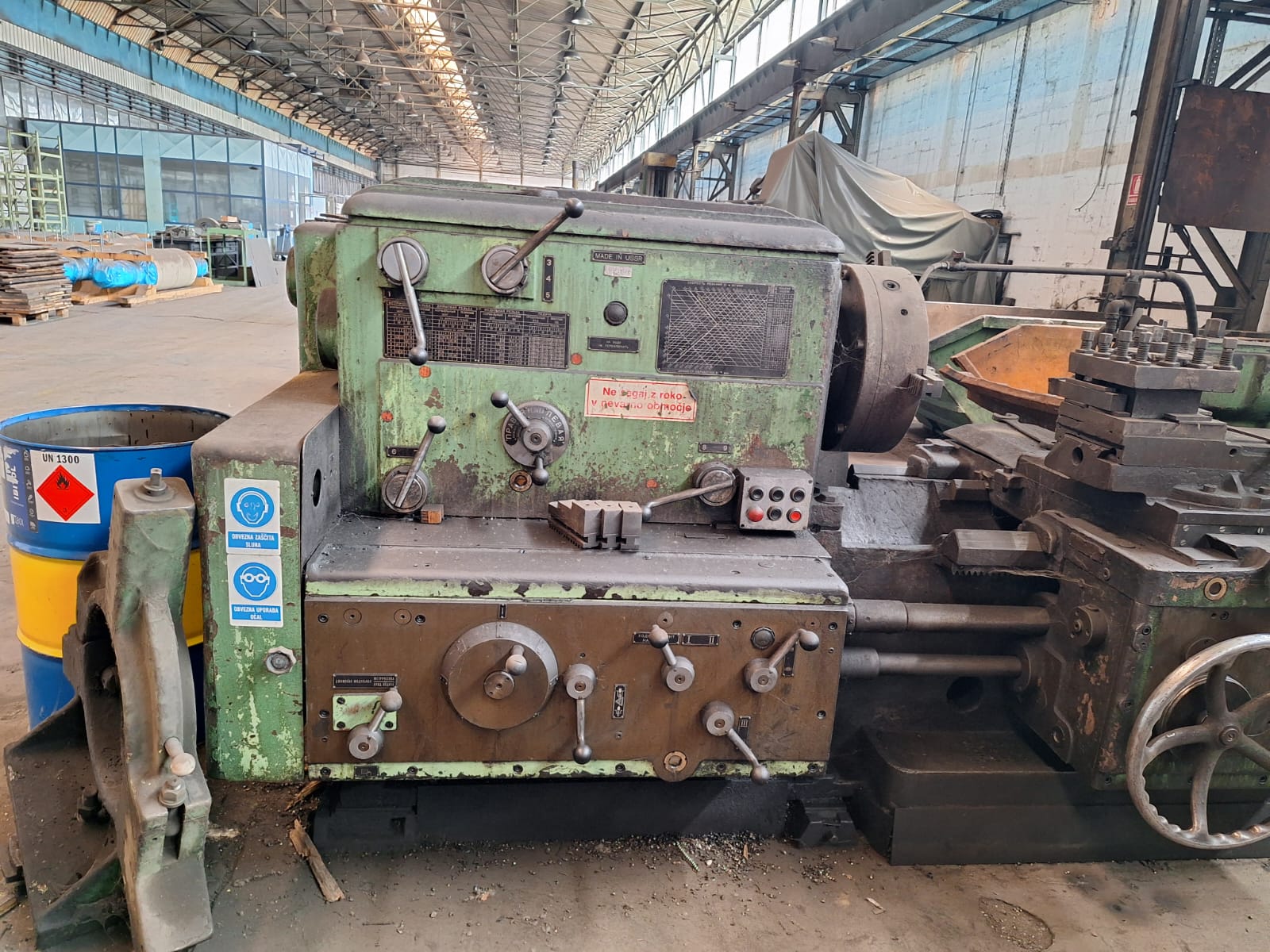

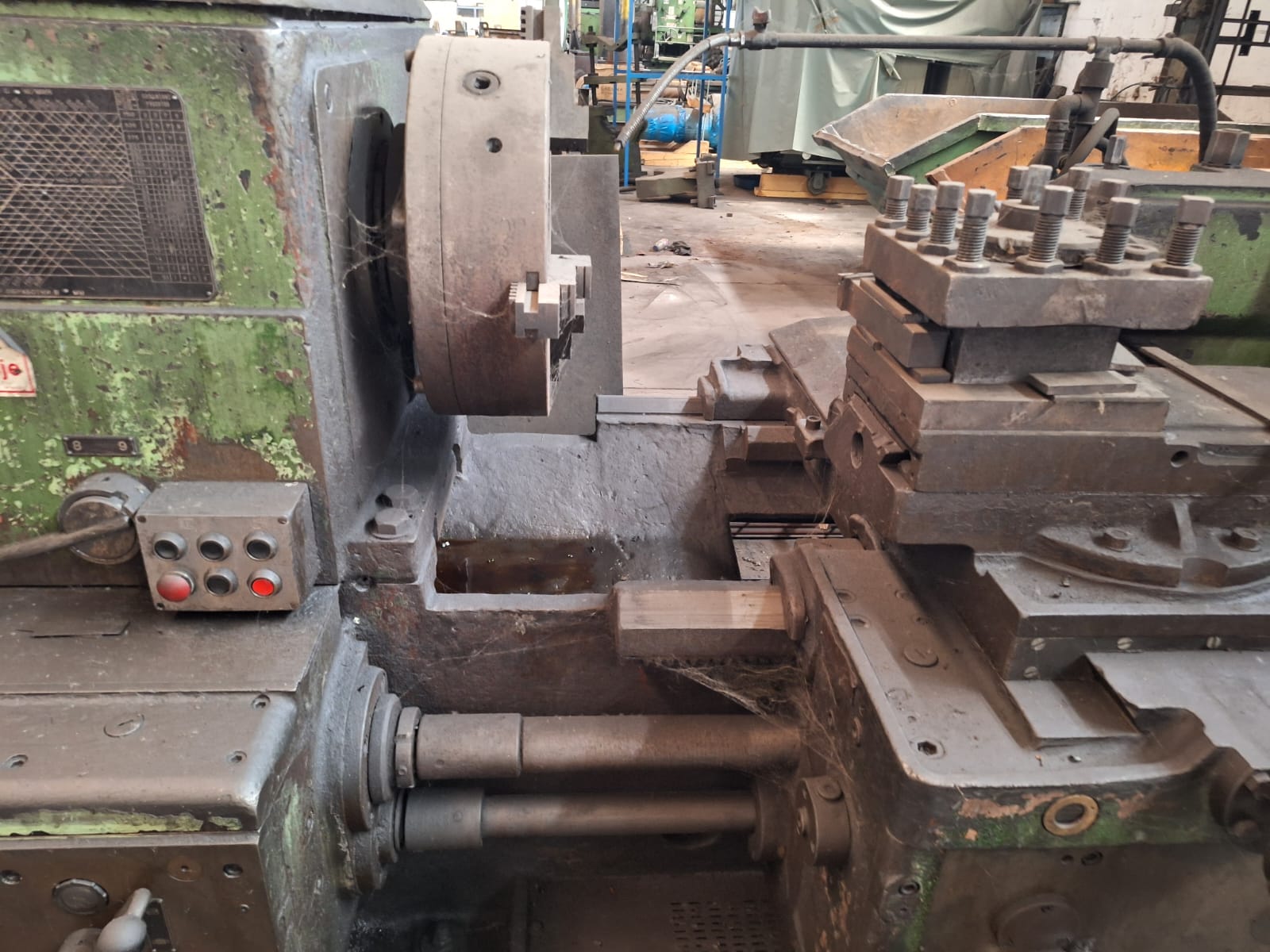

| Machine Type | Heavy Duty Lathe Machine |
| Brand / Model | STANKO 800 / 3000 mm |
| Center Height | 400 mm |
| Swing Over Bed | 800 mm |
| Swing Over Cross Slide | ~520 mm (approx) |
| Swing in Gap | ~1000 mm (approx) |
| Distance Between Centers | 3000 mm |
| Bed Type | Hardened & Ground |
| Spindle Bore | 105 mm (approx) |
| Spindle Speed Range | 12 – 1250 RPM (varies by model) |
| Spindle Nose | Camlock / D1-8 (varies) |
| Tailstock Quill Diameter | 90–100 mm |
| Tailstock Quill Travel | 250 mm |
| Feed Range | Longitudinal & Cross Feeds, multiple settings |
| Thread Cutting | Metric & Inch threads possible |
| Motor Power | 7.5 – 11 kW (depending on model) |
| Approx. Machine Weight | 4,500 – 5,500 kg |
