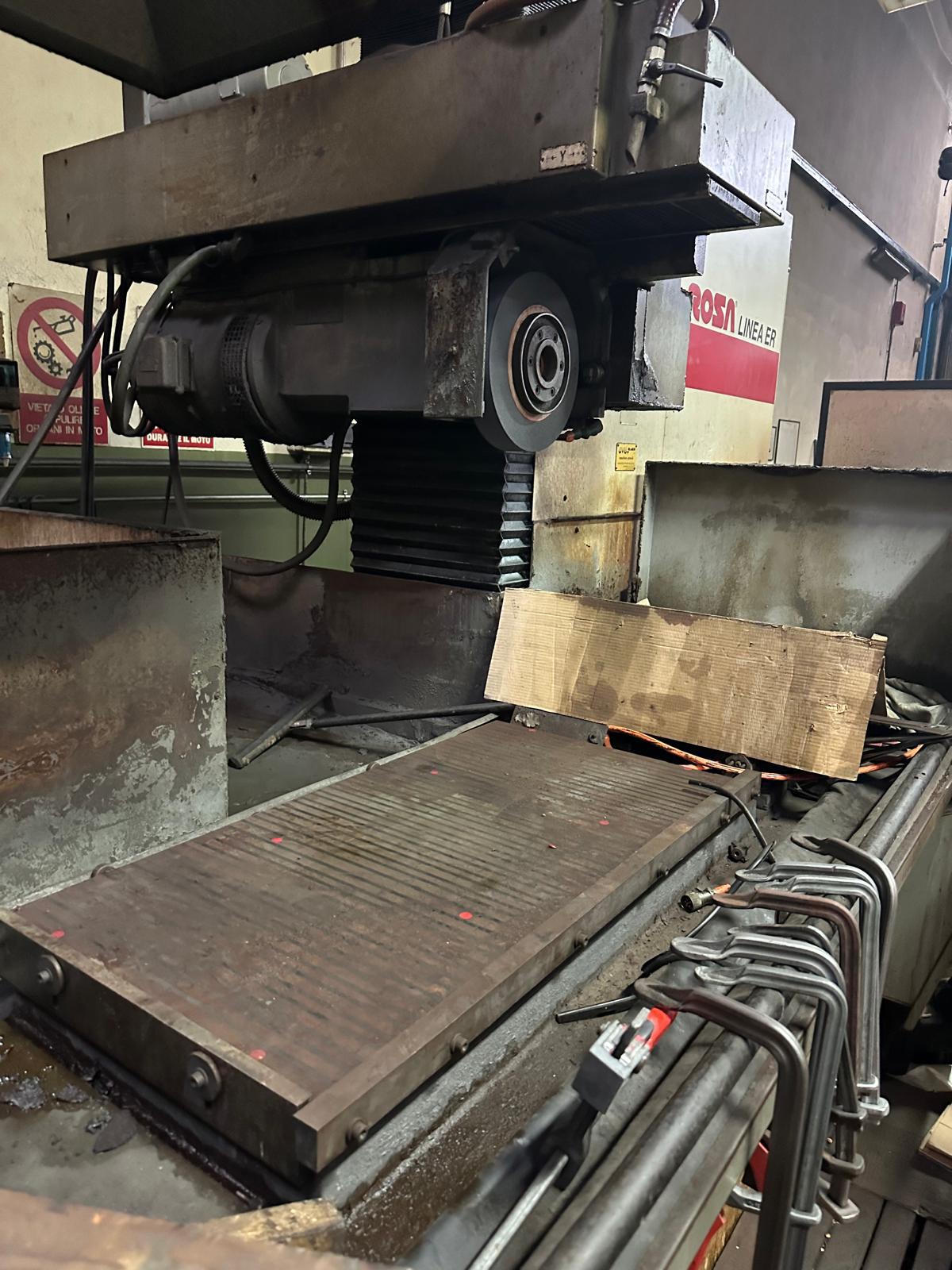

ROSSA BRAND SURFACE 1200 x 500

🔧 Key Specifications

• Model: Rosa IRON 12.6

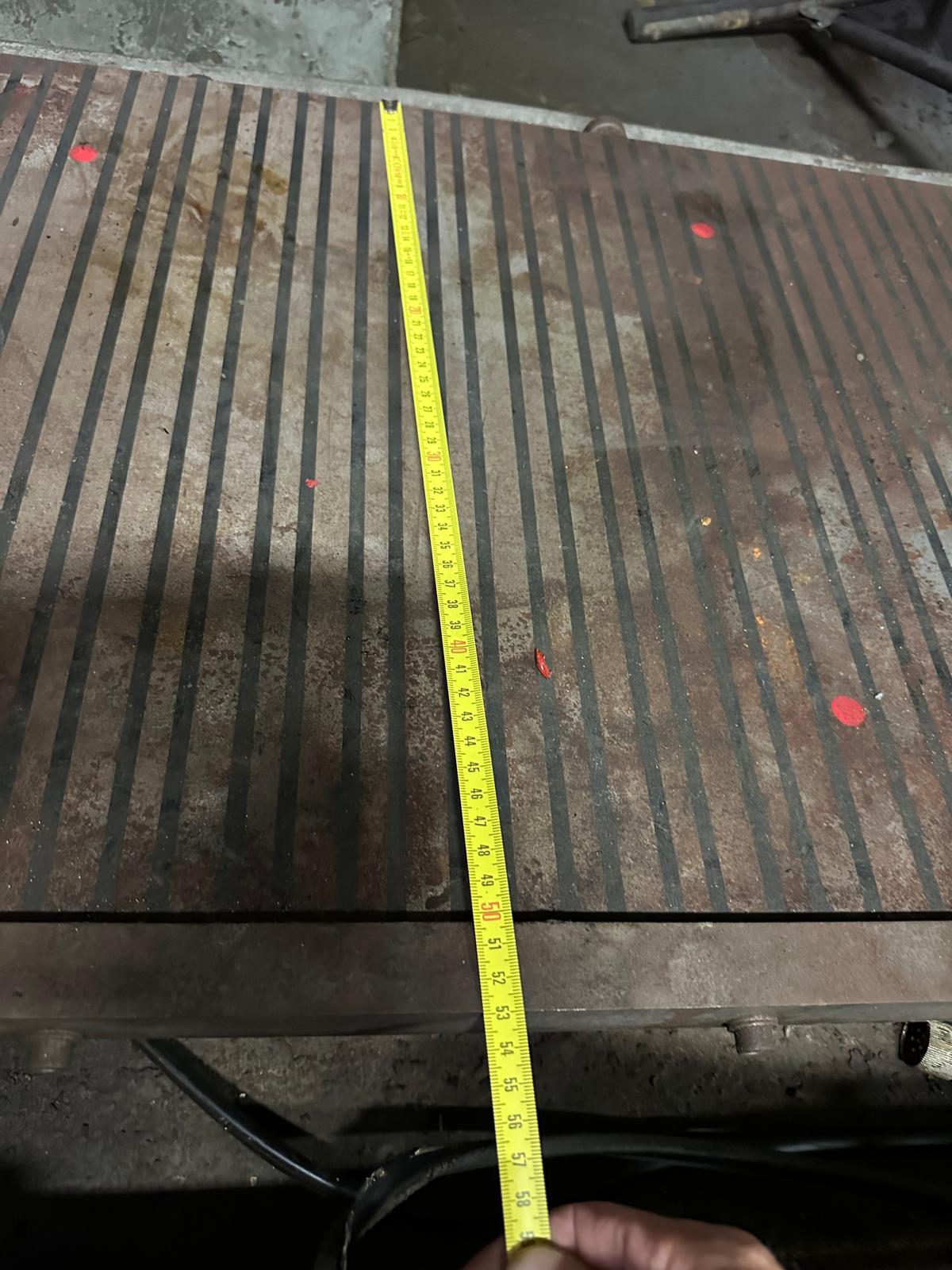

• Table Dimensions: 1200 mm × 450 mm

• Maximum Grinding Length: 1350 mm

• Maximum Grinding Width: 550 mm

• Vertical Grinding Capacity: Up to 480 mm

• Grinding Wheel Dimensions: 400 mm × 80 mm × 127 mm

• Grinding Wheel Speed: 1500 RPM

• Grinding Wheel Motor Power: 7.4 – 10 kW

• Longitudinal Stroke: 1350 mm

• Transversal Stroke: 550 mm

• Transversal Grinding Width: 610 mm

• Transversal Stroke Advances: 0–35 mm

• Transversal Speed: 0–3 m/sec

• Table Load Capacity: 1300 kg

• Machine Weight: Approximately 5500 kg

• CNC Control: Rosa System
