| Feature | Specification / Description |
|---|---|

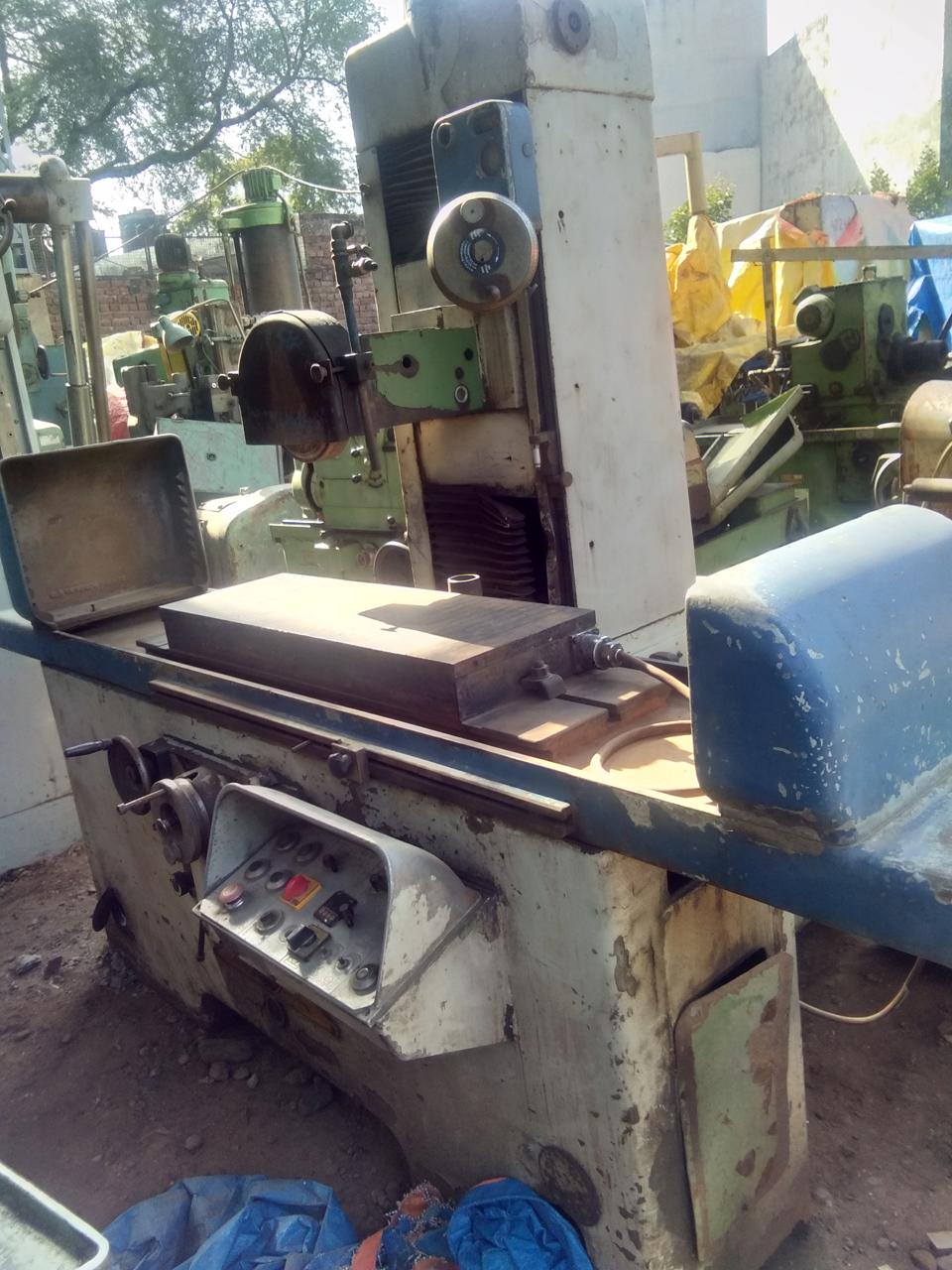

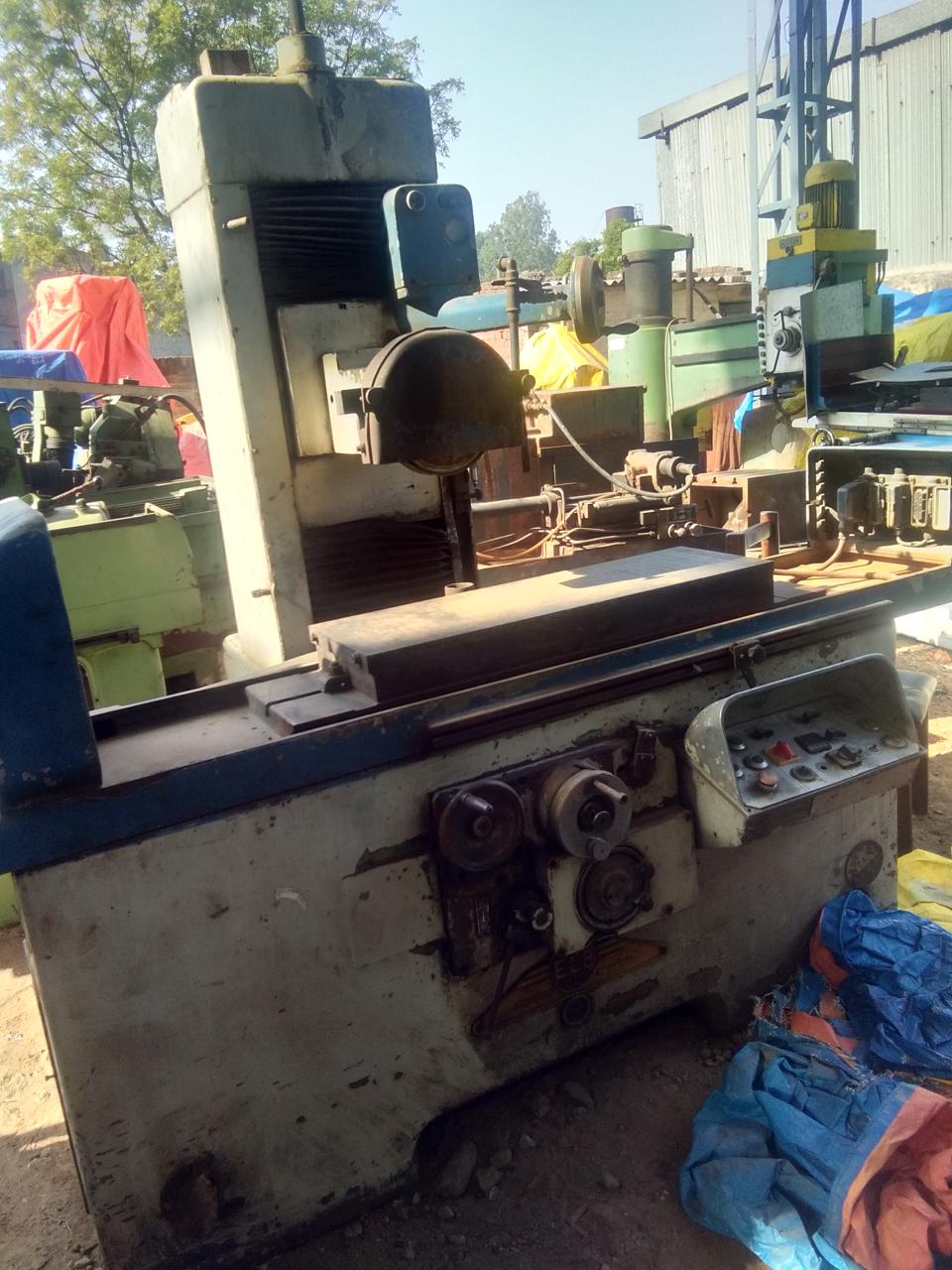

| Machine Type | Surface Grinding Machine |
| Model | ELB 1000 Ă— 300 |
| Brand / Make | ELB (Germany) |
| Table Size | 1000 mm Ă— 300 mm |
| Max. Grinding Length | 1000 mm |
| Max. Grinding Width | 300 mm |
| Max. Grinding Height | Approx. 400 – 450 mm |
| Table Travel (Longitudinal) | Up to 1100 mm |
| Cross Travel | Approx. 350 mm |
| Grinding Wheel Size | Approx. 350 Ă— 40 Ă— 127 mm (varies) |
| Wheel Head Type | Horizontal Spindle |
| Table Movement | Hydraulic (Longitudinal), Manual or Automatic (Cross) |
| Control Type | Manual / Semi-Automatic |
| Coolant System | Provided |
| Lubrication System | Provided |
| Drive Motor Power | Approx. 5 HP |
| Machine Dimensions (LĂ—WĂ—H) | Approx. 2800 Ă— 1500 Ă— 1800 mm |
| Weight (Approx.) | 2 – 3 Tons |
| Condition | (Specify: Used / Reconditioned / Operational) |
| Applications | Precision grinding of metal components, tools, dies, plates, etc. |
| Accessories Included | Magnetic chuck, wheel dresser, coolant system, control panel |
