| Feature | Specification / Description |
|---|---|

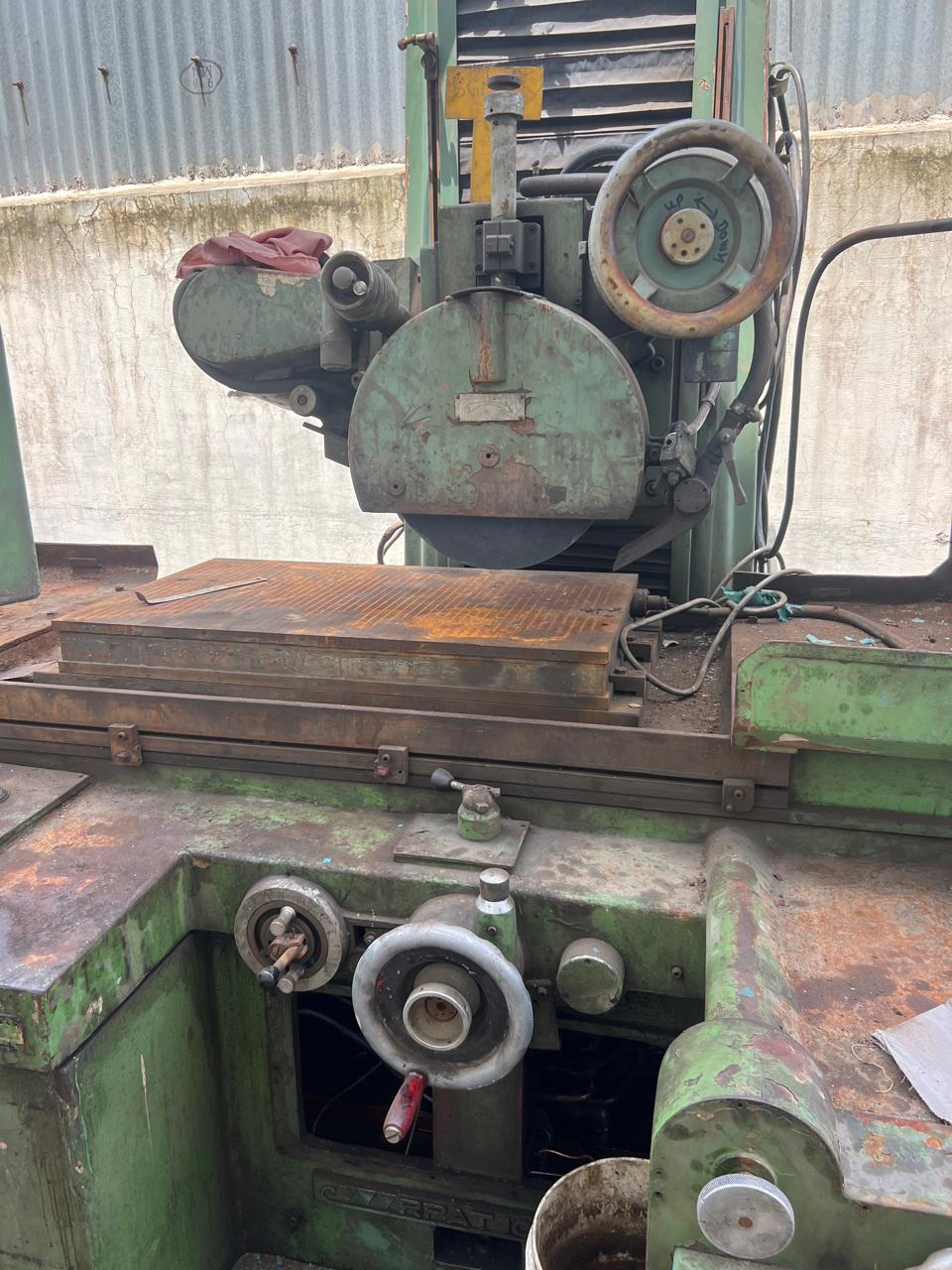

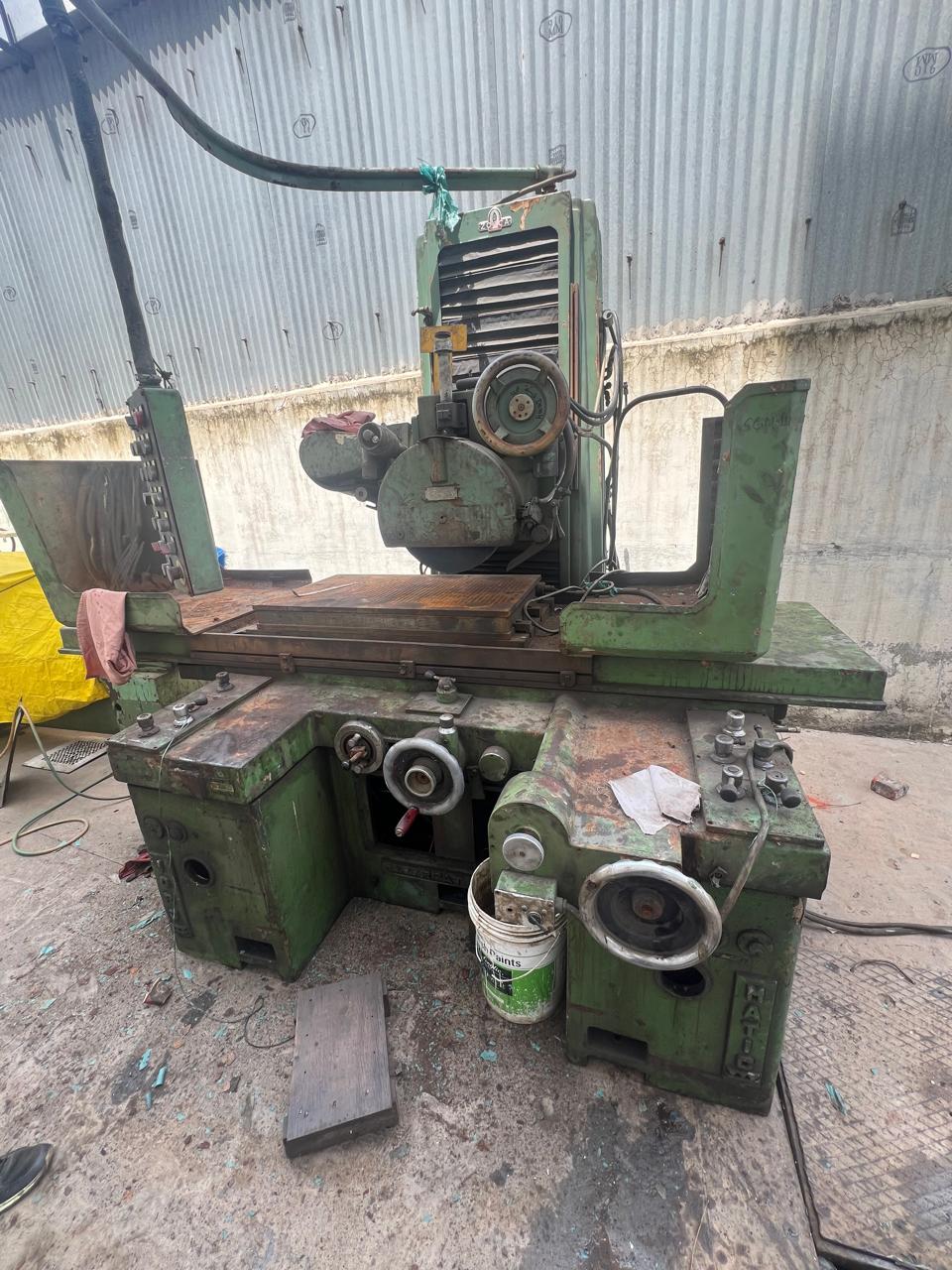

| Machine Type | Surface Grinding Machine |
| Model / Table Size | 1200 mm Ă— 700 mm |
| Brand / Make | Made in Italy |
| Table Travel (Longitudinal) | Approx. 1300 – 1400 mm |
| Cross Travel | Approx. 750 – 800 mm |
| Max. Grinding Height | Approx. 400 – 500 mm |
| Grinding Wheel Size | Approx. 400 Ă— 50 Ă— 127 mm |
| Spindle Orientation | Horizontal |
| Table Movement | Hydraulic (Longitudinal), Motorized/Manual (Cross & Vertical) |
| Control Type | Manual / Semi-Automatic |
| Coolant System | Equipped |
| Lubrication System | Centralized or manual |
| Main Motor Power | Approx. 5 – 7.5 HP |
| Machine Dimensions (LĂ—WĂ—H) | Approx. 3000 Ă— 2200 Ă— 2200 mm |
| Weight (Approx.) | 4500 – 5500 kg |
| Condition | (Specify: Used / Working / Reconditioned) |
| Applications | Precision surface grinding for large dies, plates, and industrial components |
| Included Accessories | Magnetic chuck, wheel guard, coolant tank, wheel dresser |
