| Feature | Specification / Description |
|---|---|

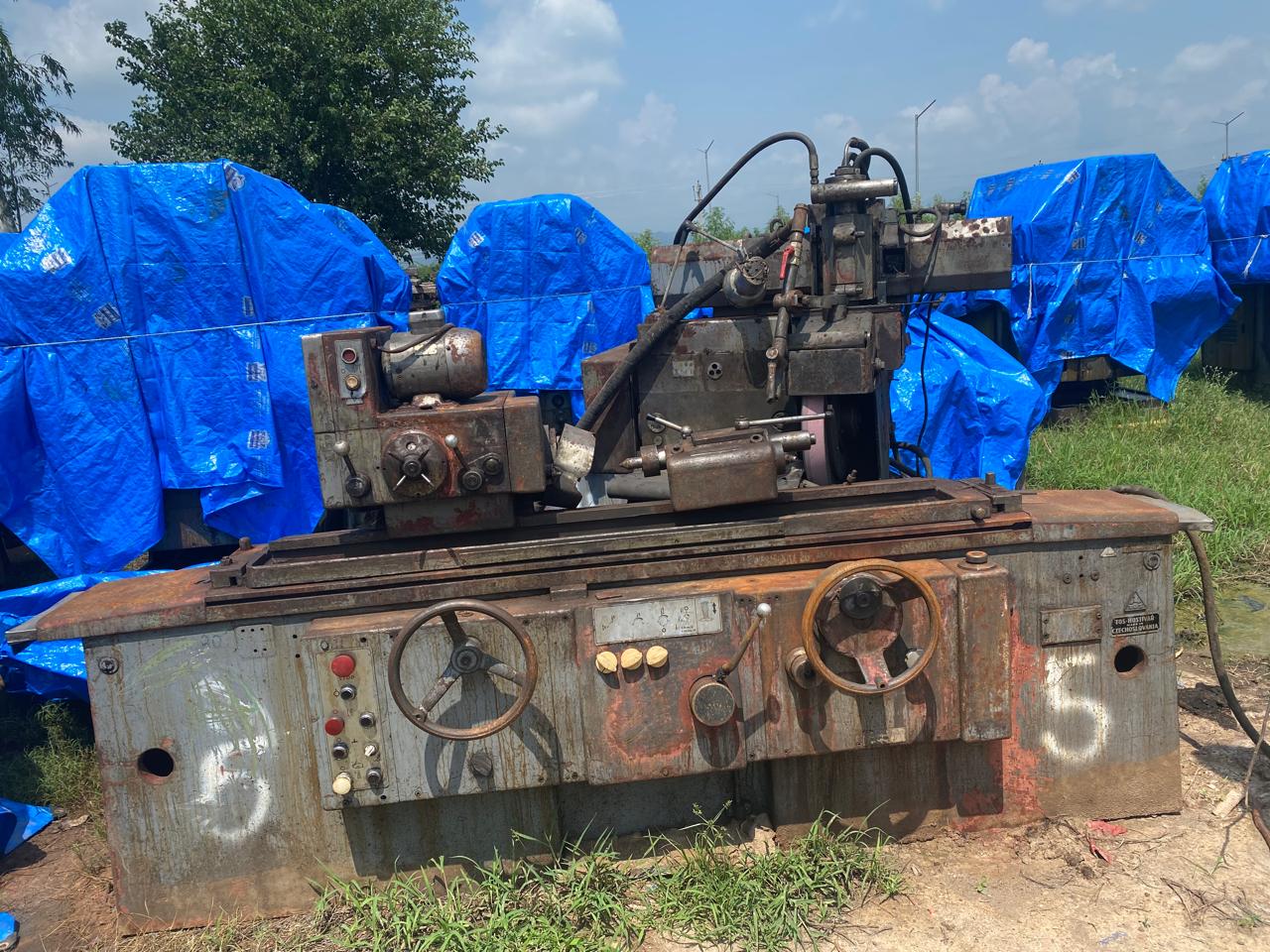

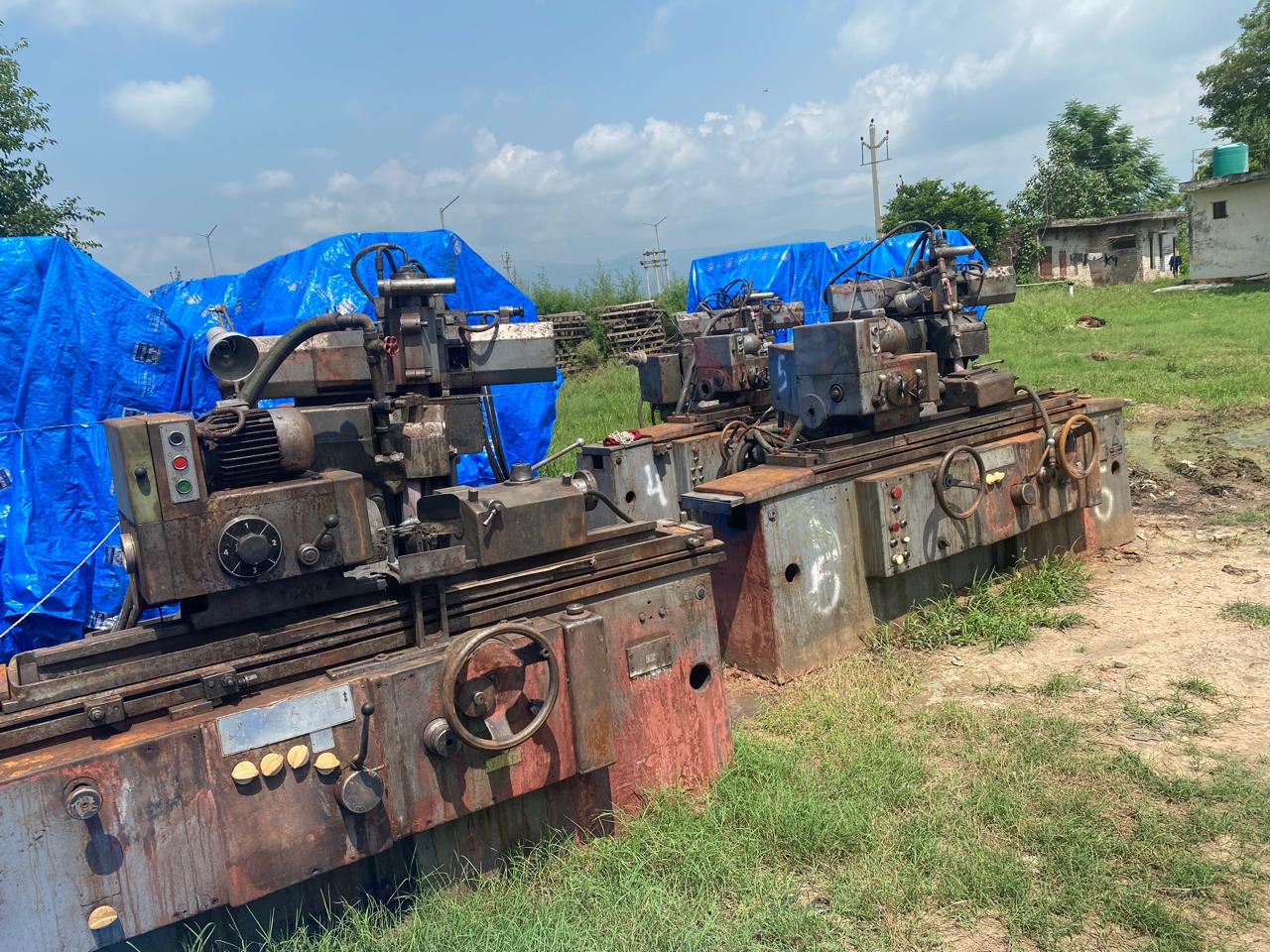

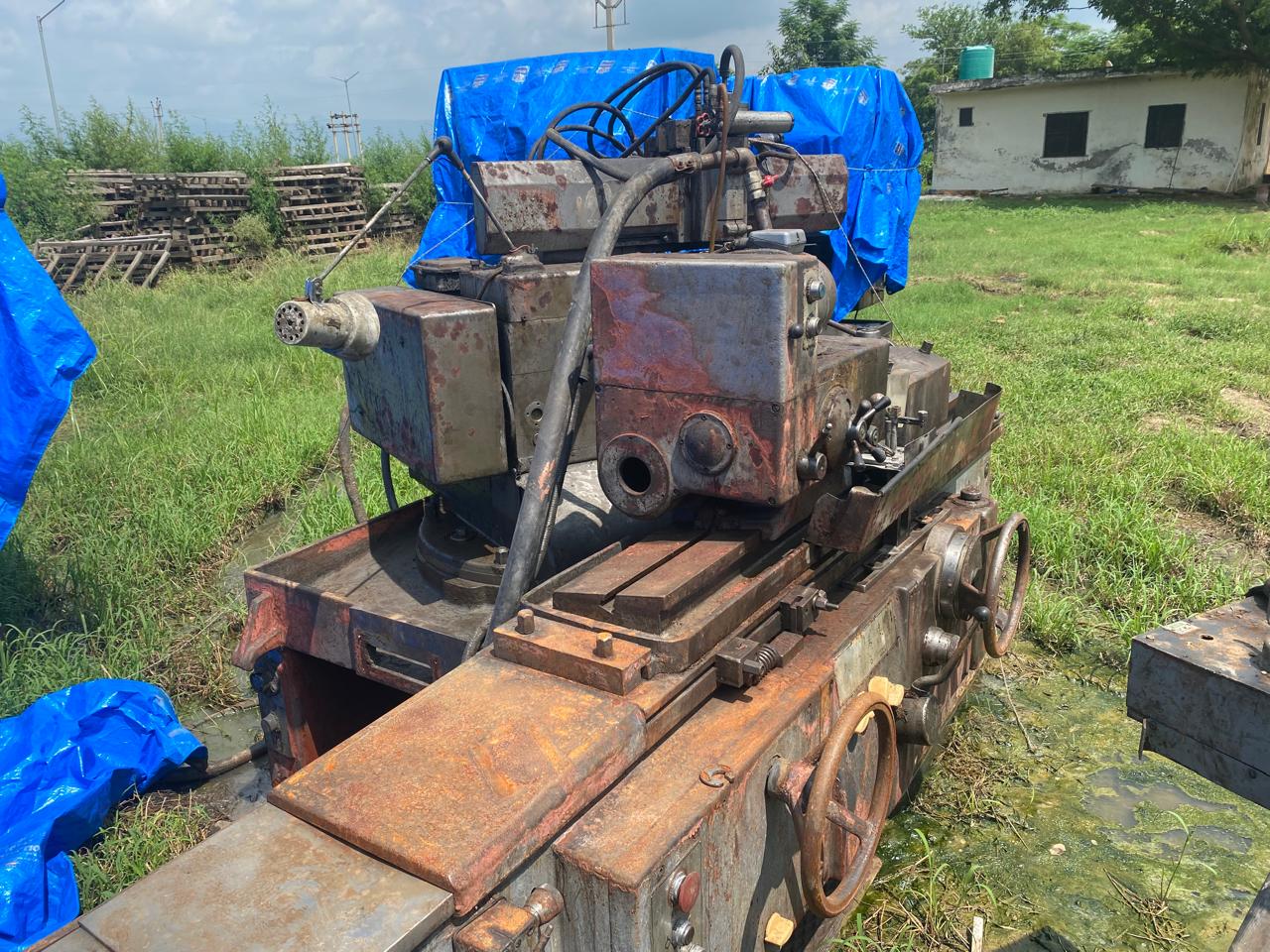

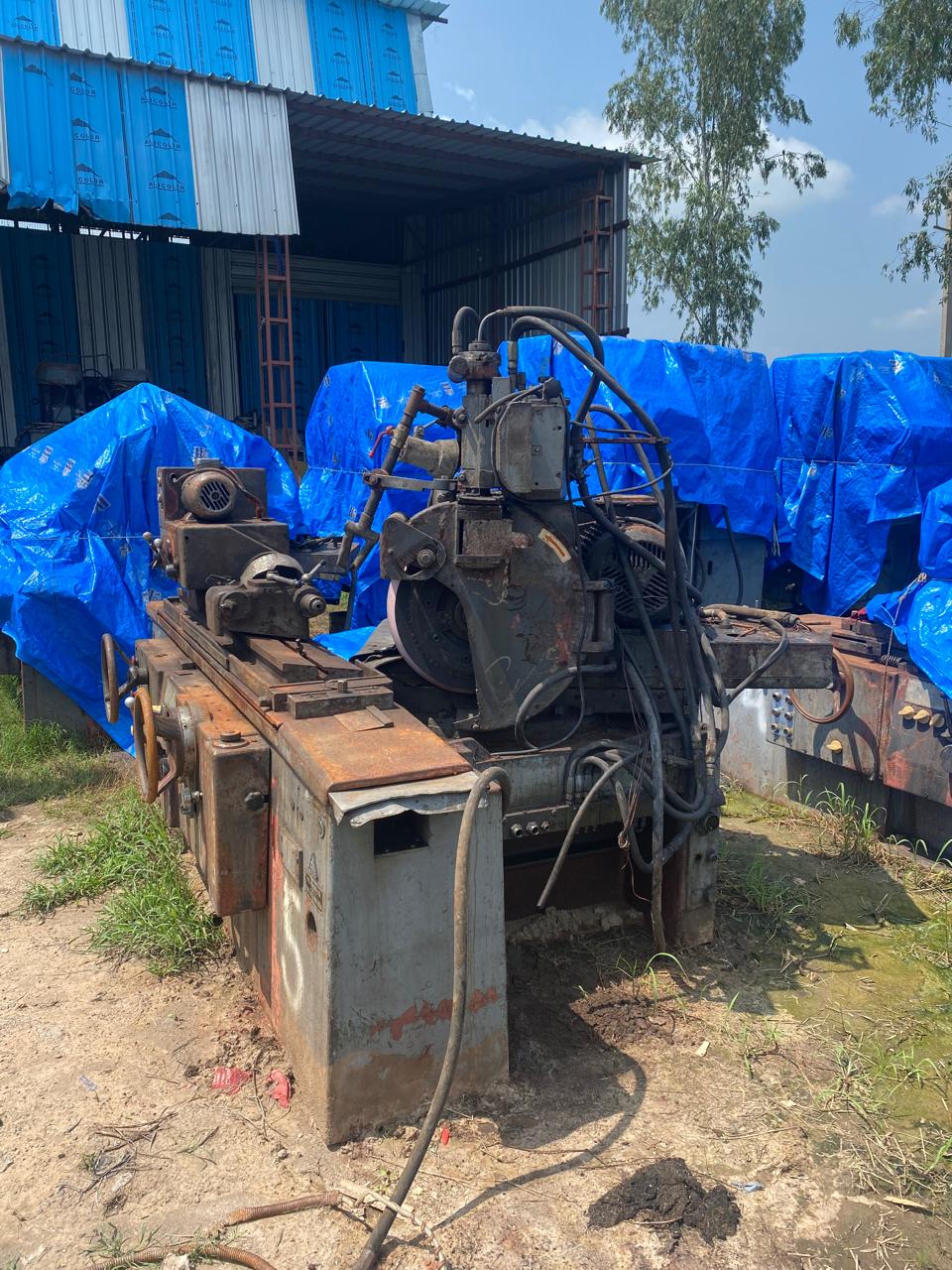

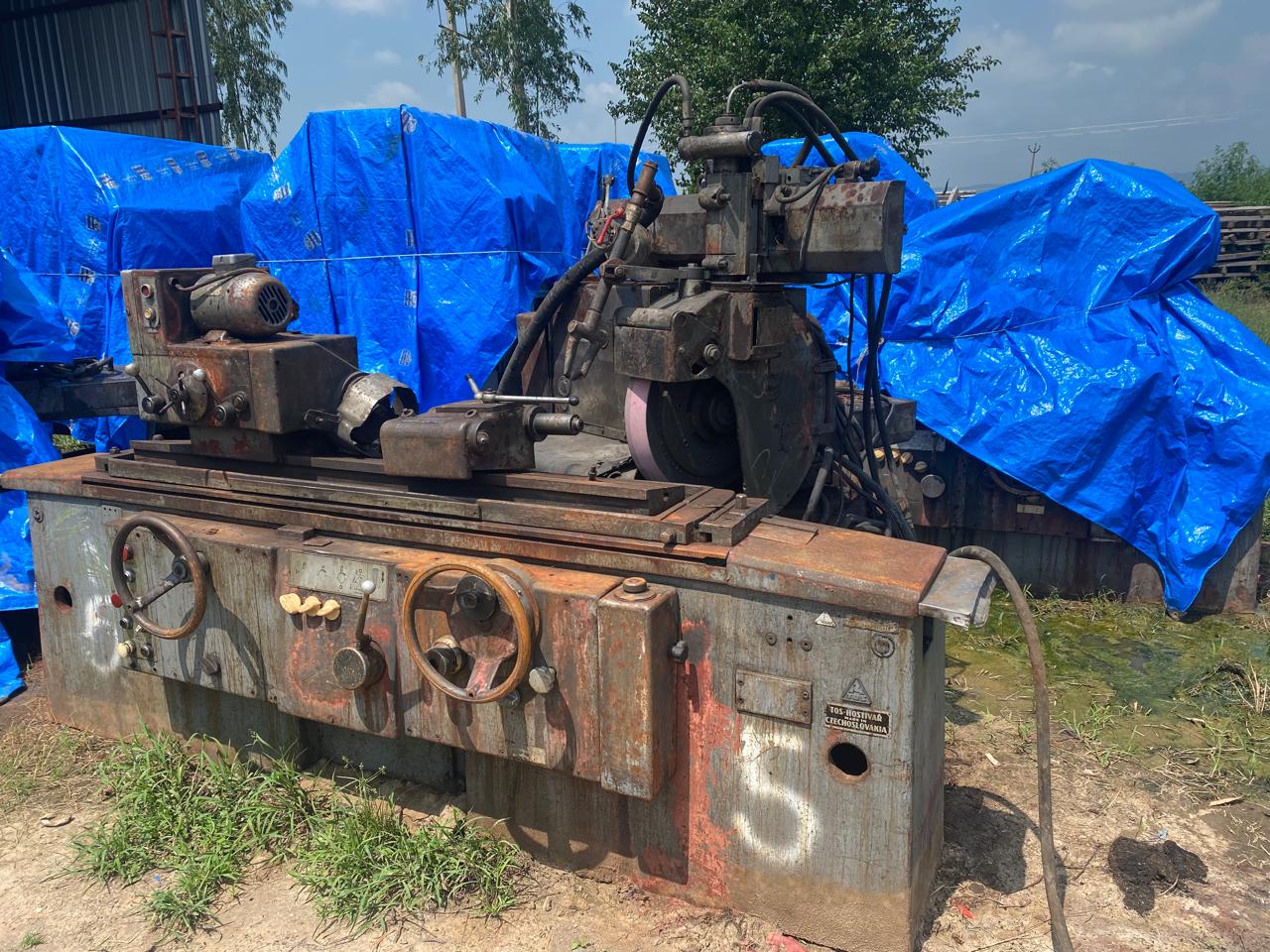

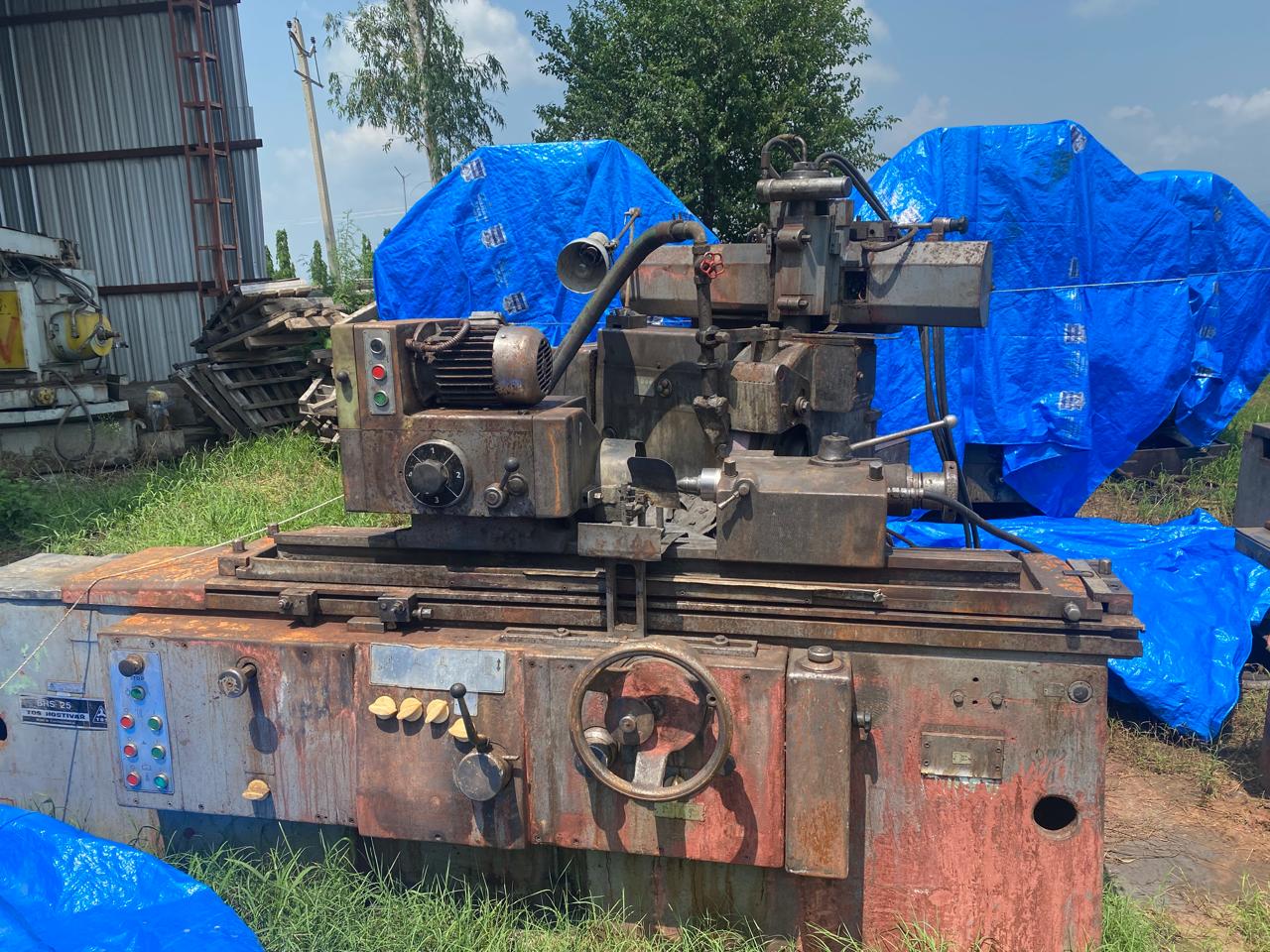

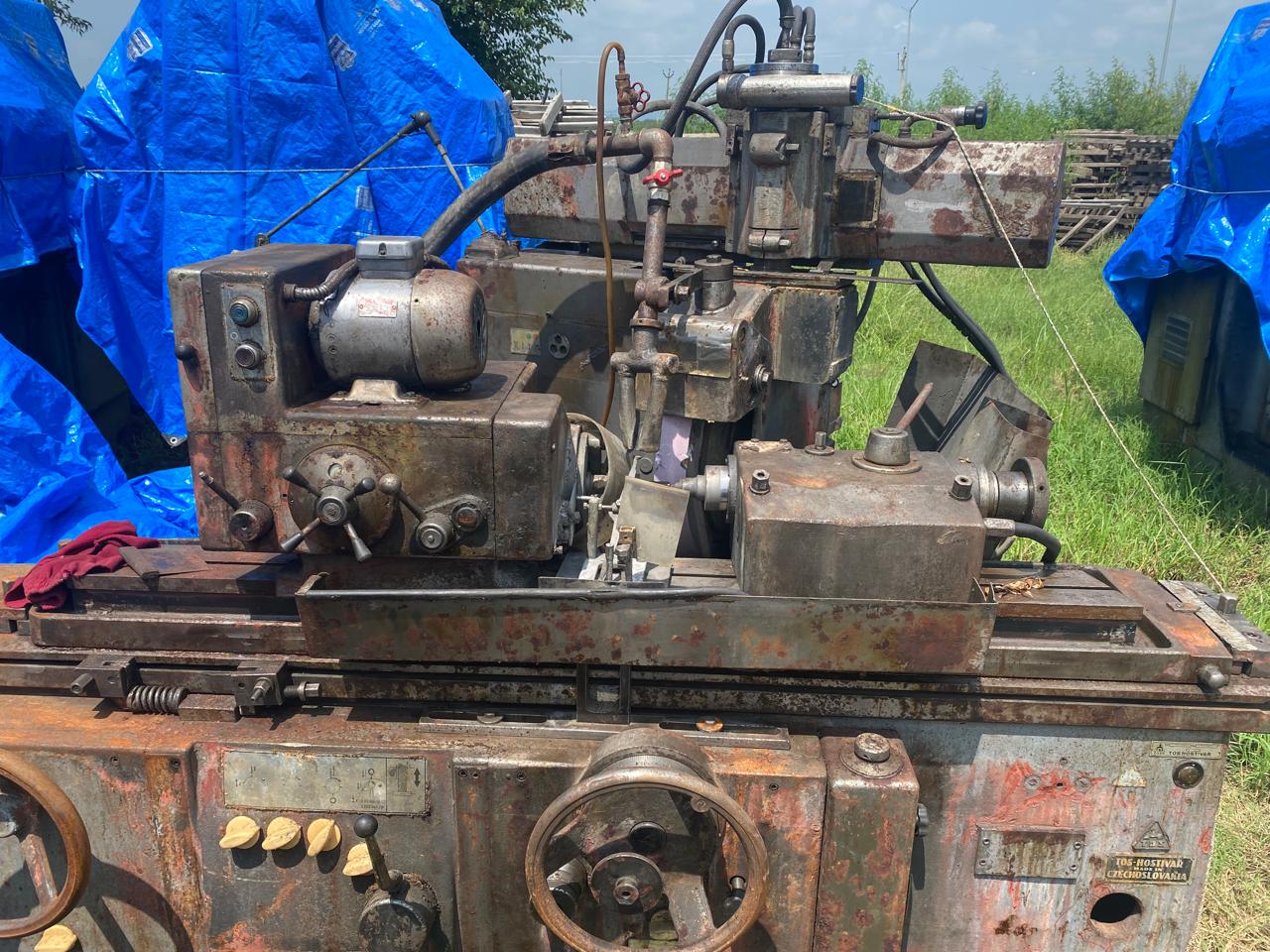

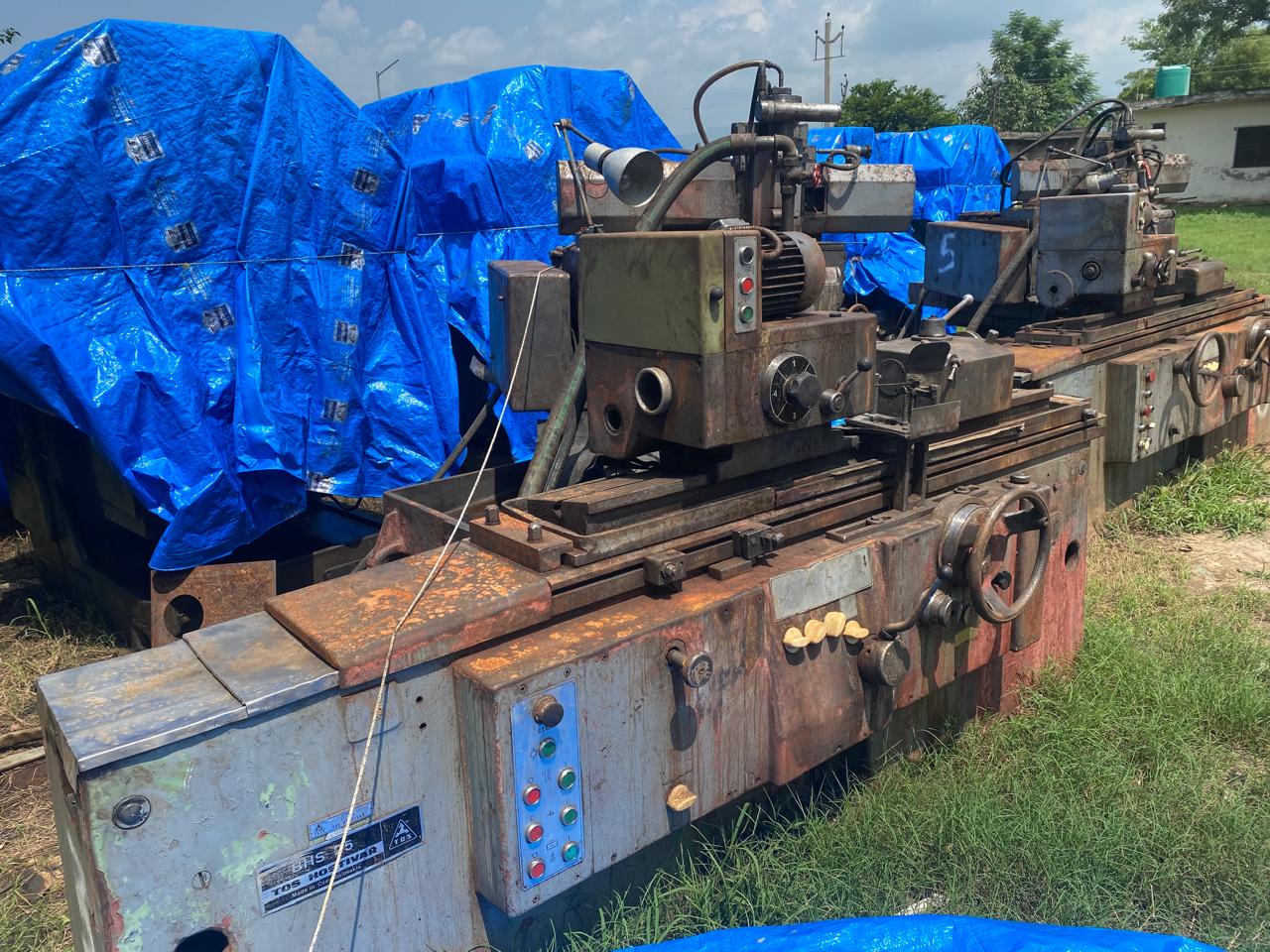

| Machine Type | Angular Head Cylindrical Grinder |
| Make / Brand | TOS |
| Country of Origin | Czechoslovakia (Czech Republic) |
| Grinding Length | 630 mm |
| Center Height | Approx. 150 – 200 mm |
| Max. Grinding Diameter | Up to Ø 300 mm (approx.) |
| Swing Over Bed | Ø 350 – 400 mm (approx.) |
| Wheel Head Type | Angular – Suitable for face and external cylindrical grinding |
| Workhead Speed | Variable / Stepped – Approx. 30 to 300 RPM |
| Grinding Wheel Size | Ø 400 mm × Width 50–80 mm |
| Tailstock | Manual / Hydraulic type |
| Coolant System | Equipped with filtration unit |
| Motor Power | 5 – 7.5 HP (approx.) |
| Machine Dimensions | Approx. 2600 × 1600 × 1500 mm |
| Machine Weight | Approx. 3500 – 4500 kg |
| Applications | Angular grinding of shafts, collars, stepped parts, and shoulder faces |
| Condition | (Specify: Used / Refurbished / Good Condition) |
| Included Accessories | Angular wheel head, coolant system, tailstock, control panel |
