| Specification | Details |
|---|---|

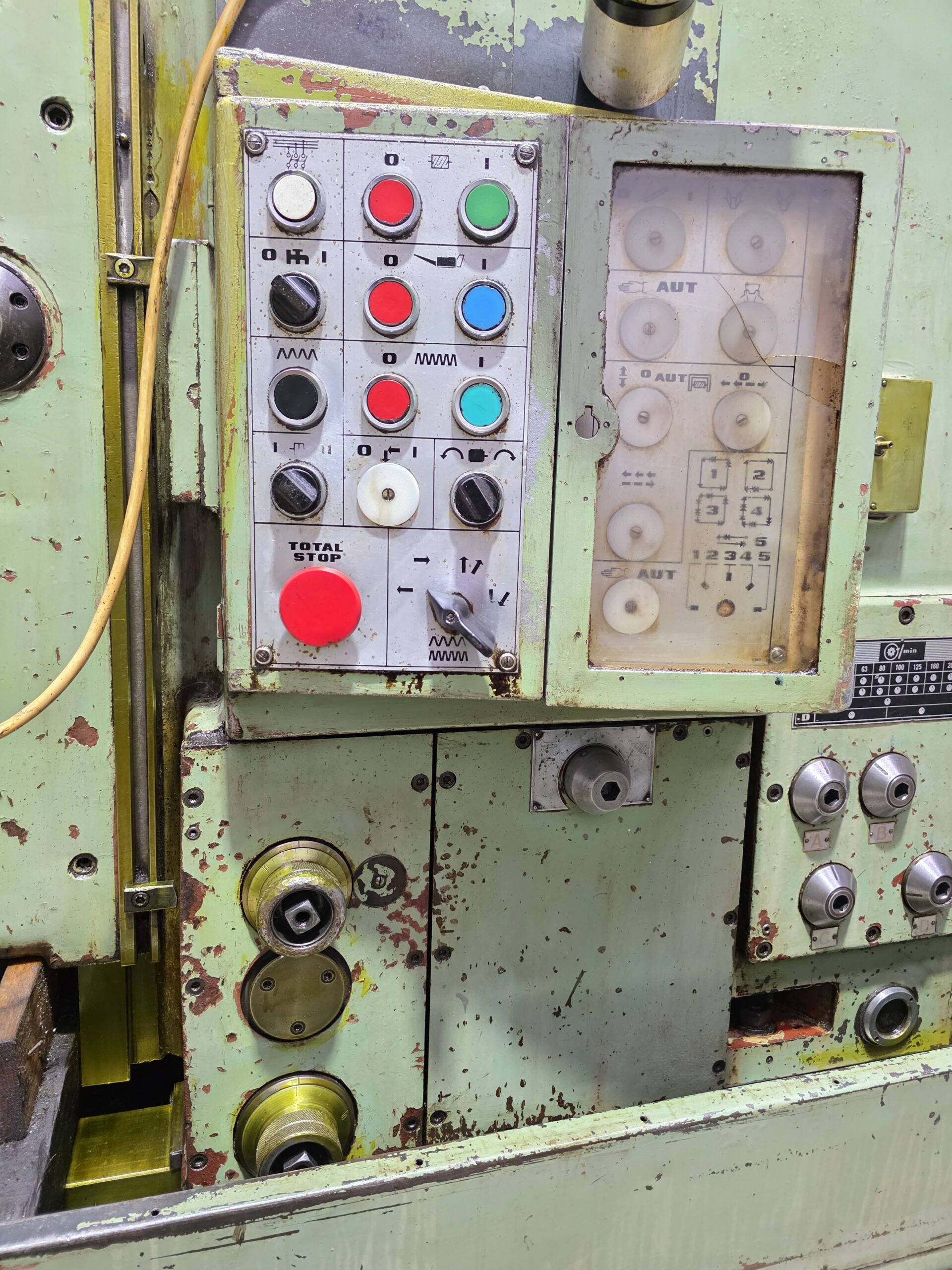

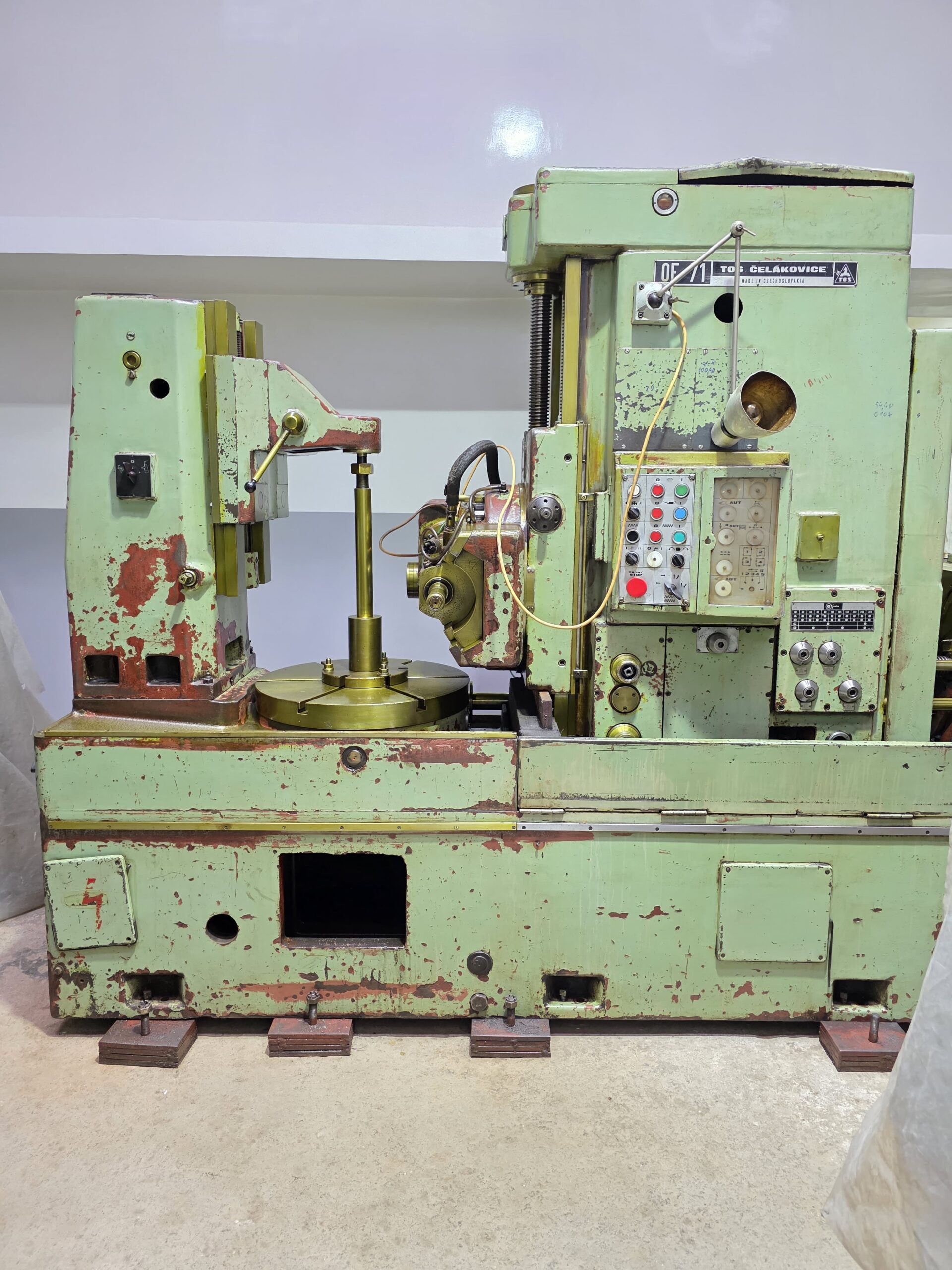

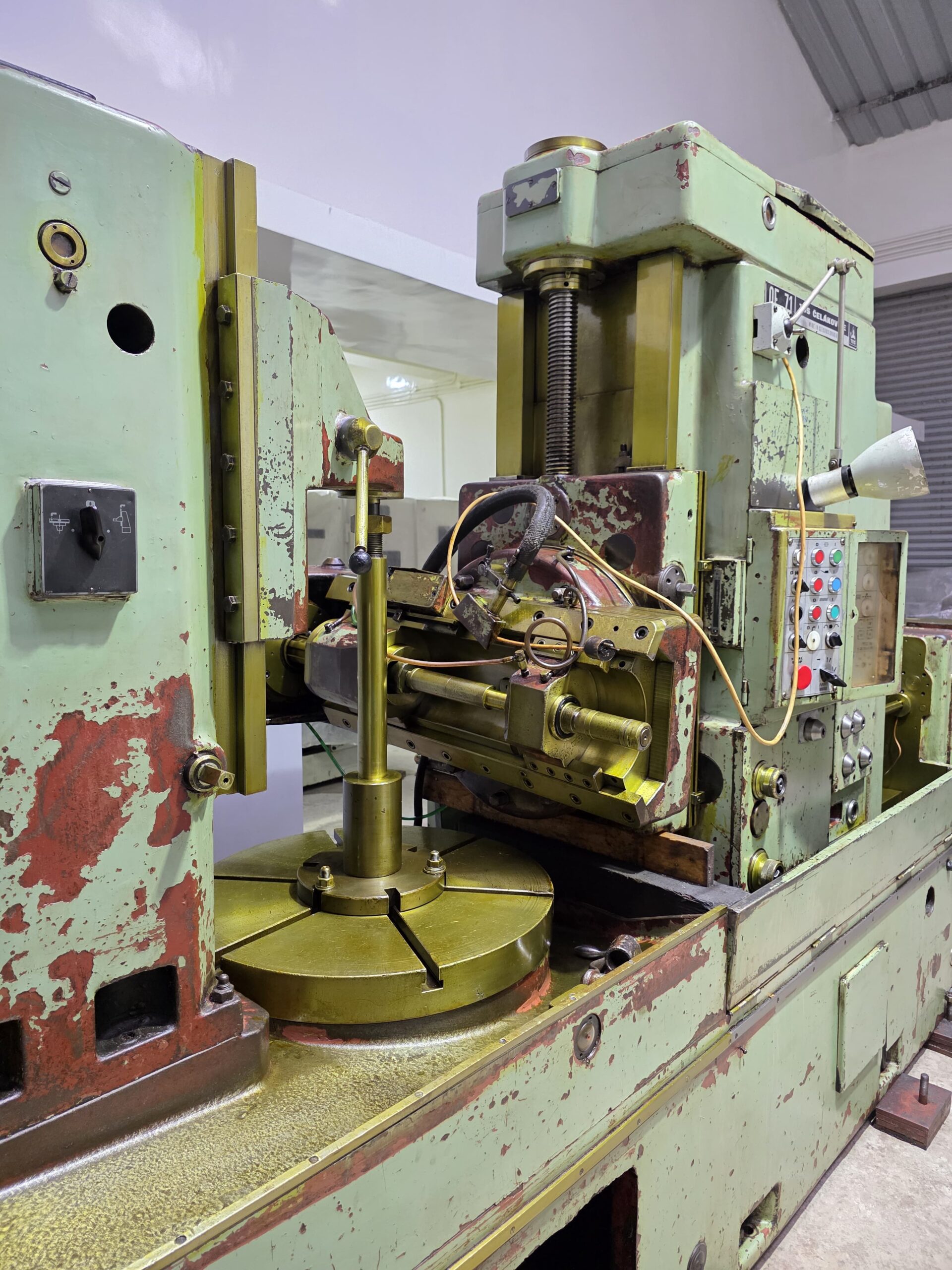

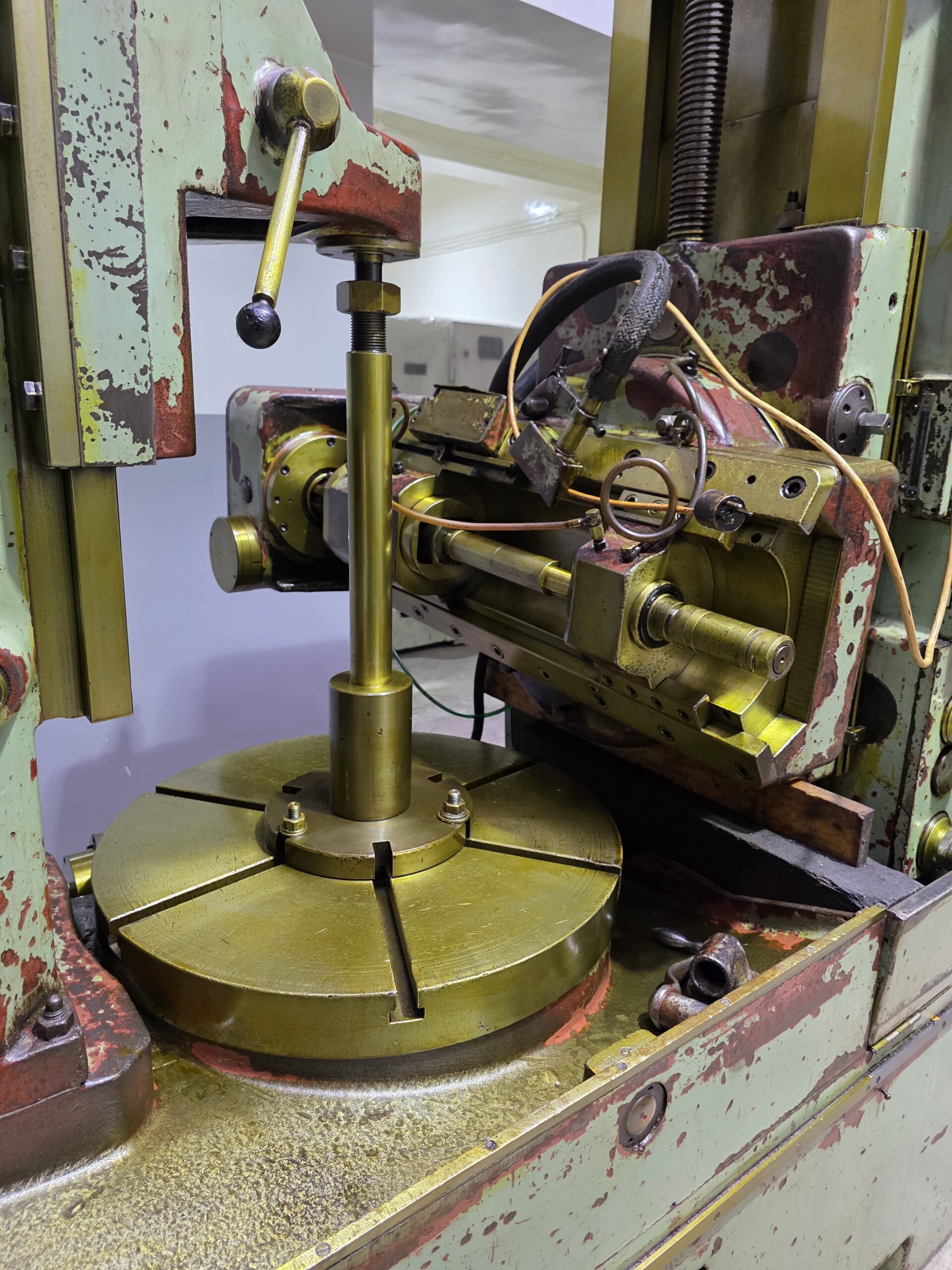

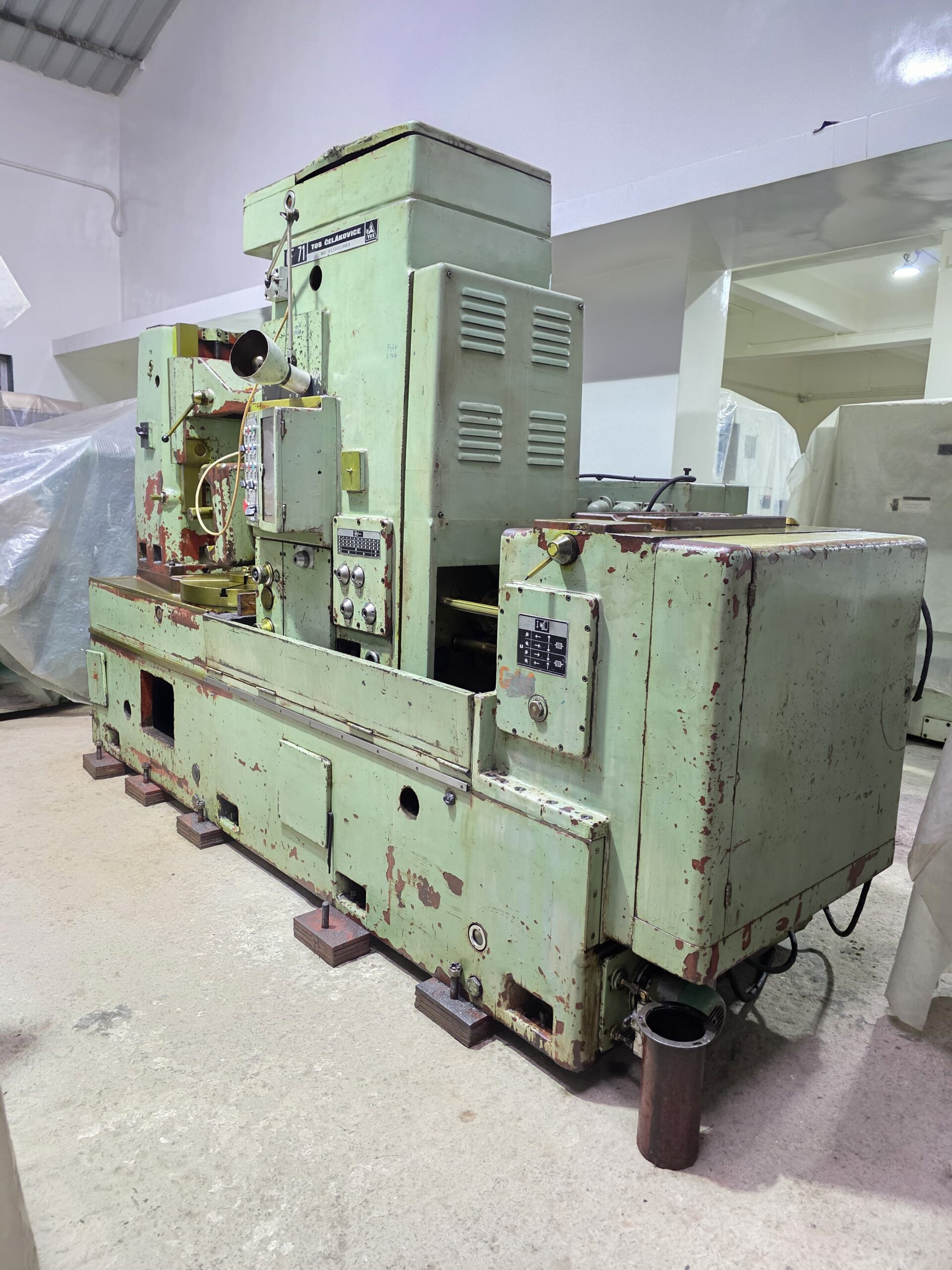

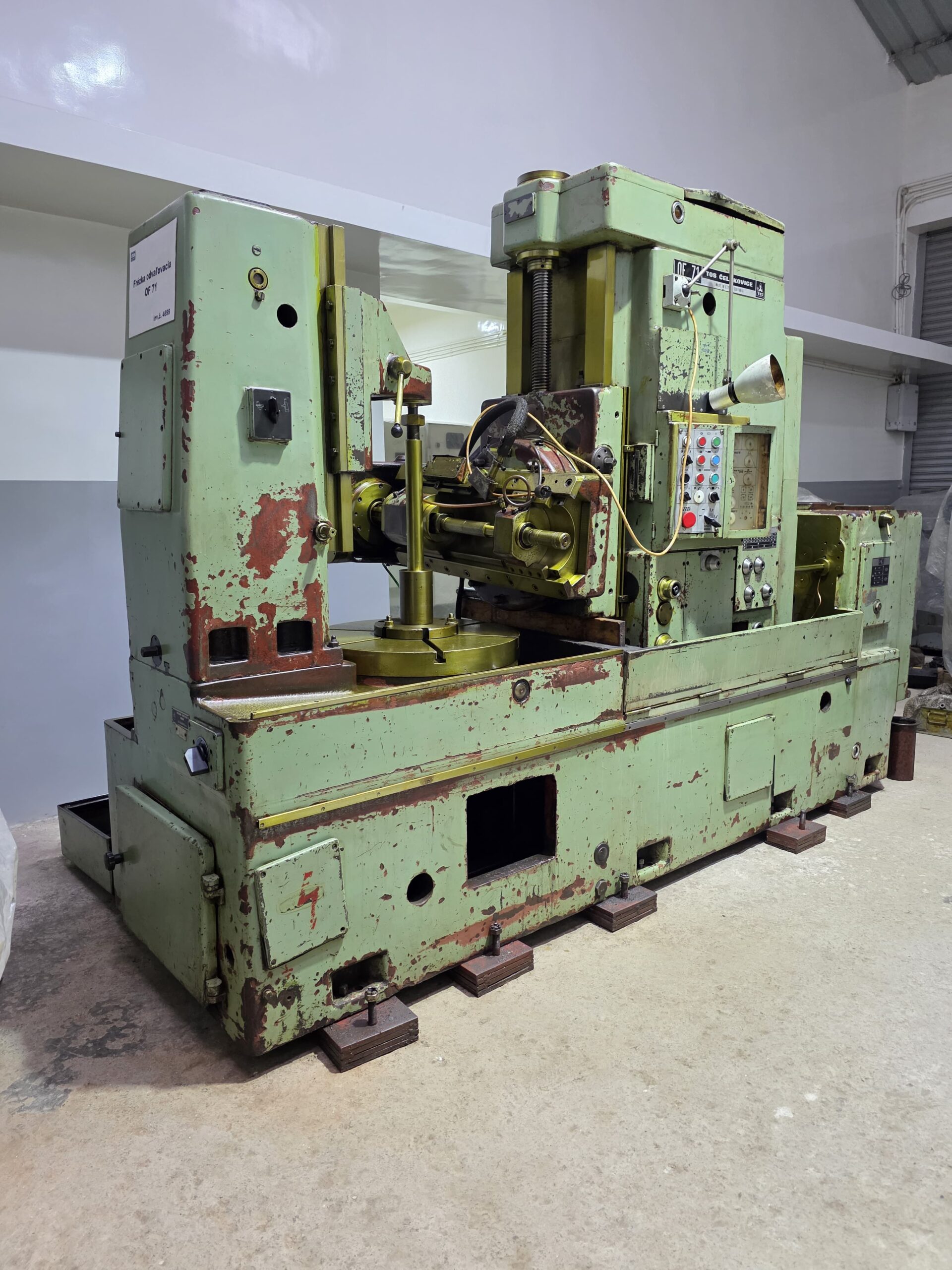

| Machine Name | TOS OF71 Gear Hobbing Machine |
| Machine Type | Horizontal Gear Hobbing Machine |
| Max Module Capacity | 7 Module |
| Max Gear Diameter | 710 mm |
| Max Gear Diameter (with Support) | 500 mm |
| Max Gear Width | 335 mm |
| Number of Teeth Range | 8 – 400 Teeth |
| Table Diameter | 630 mm |
| Max Hob Cutter Size | Ø 195 mm × Length 220 mm |
| Hob Speed Range | 40 – 315 RPM |
| Gear Types | Spur Gears, Helical Gears, Sprockets |
| Operation | Mechanical / Change Gear Driven |
| Application | Automotive, Heavy Engineering, Industrial Gear Manufacturing |
