| Technical Specification | Value |
|---|---|

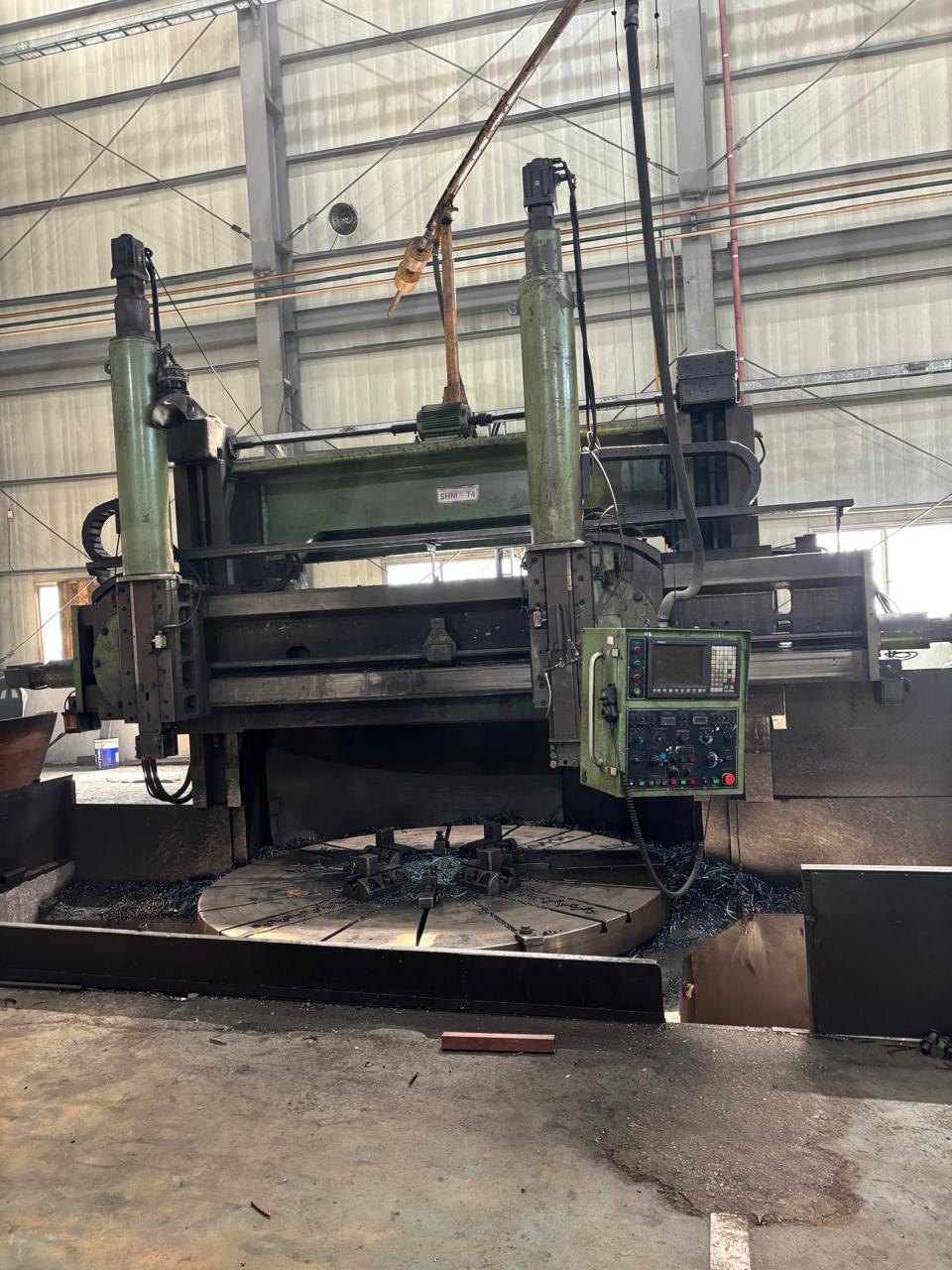

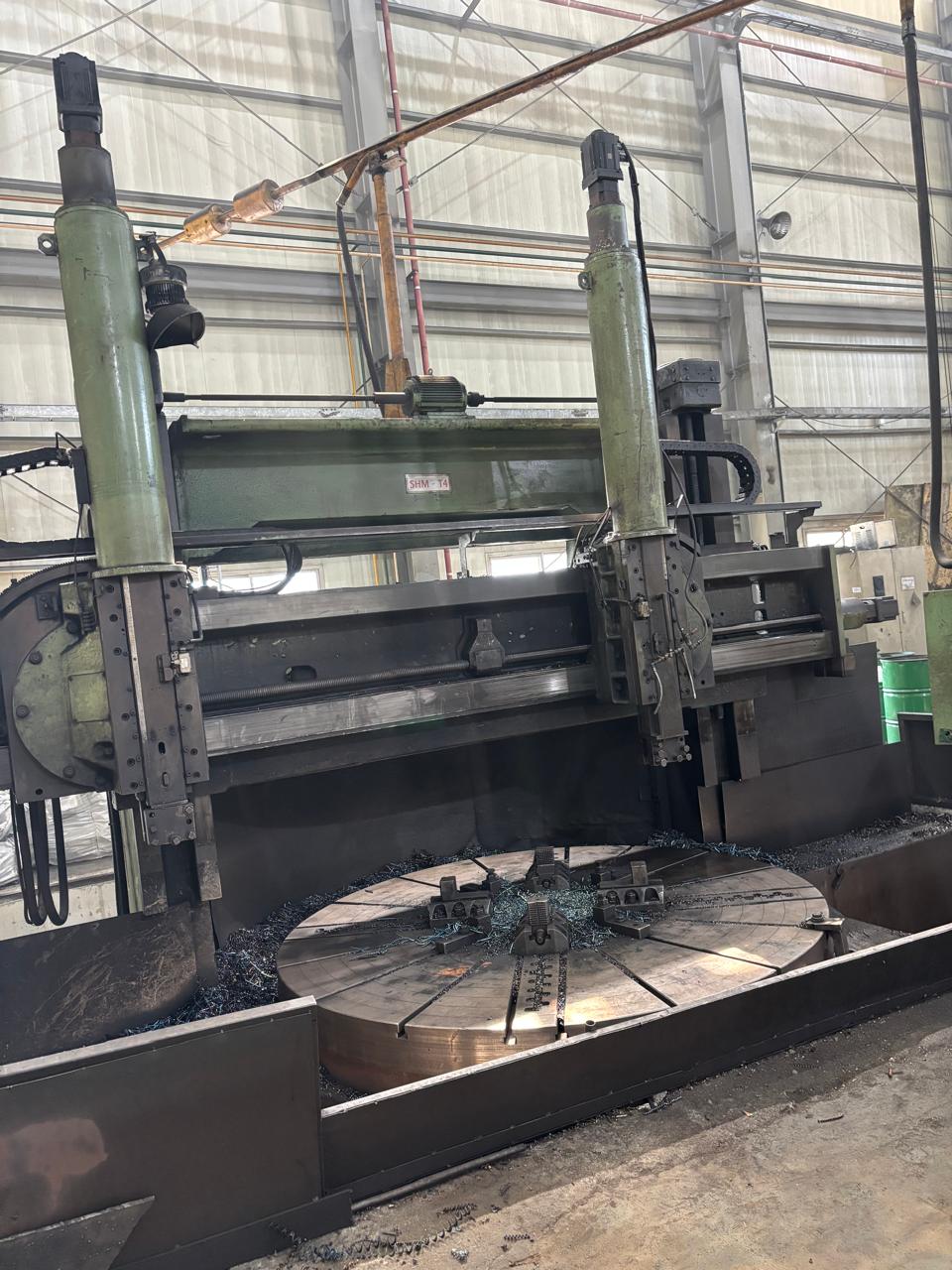

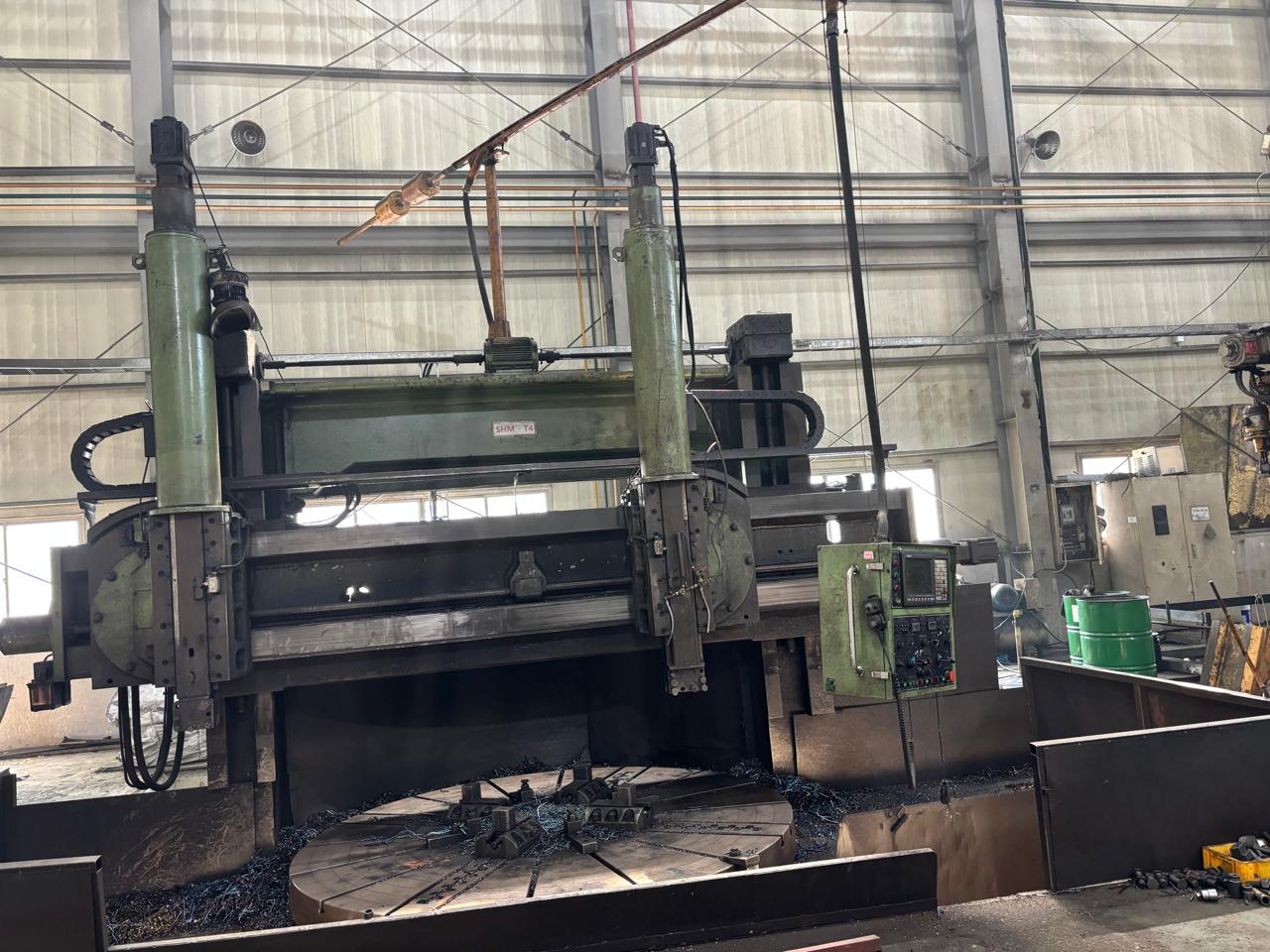

| Model | VTL 1L532 |

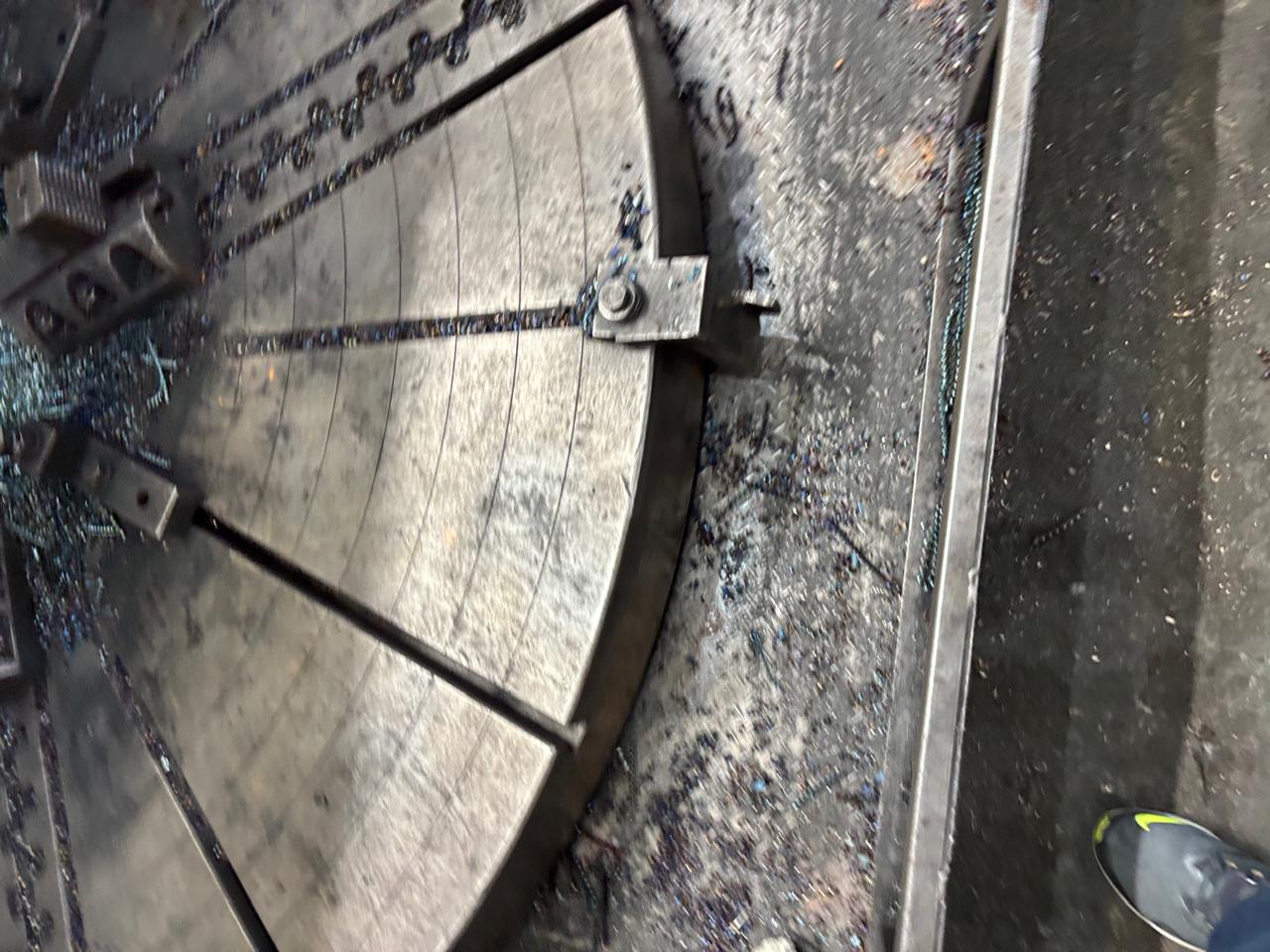

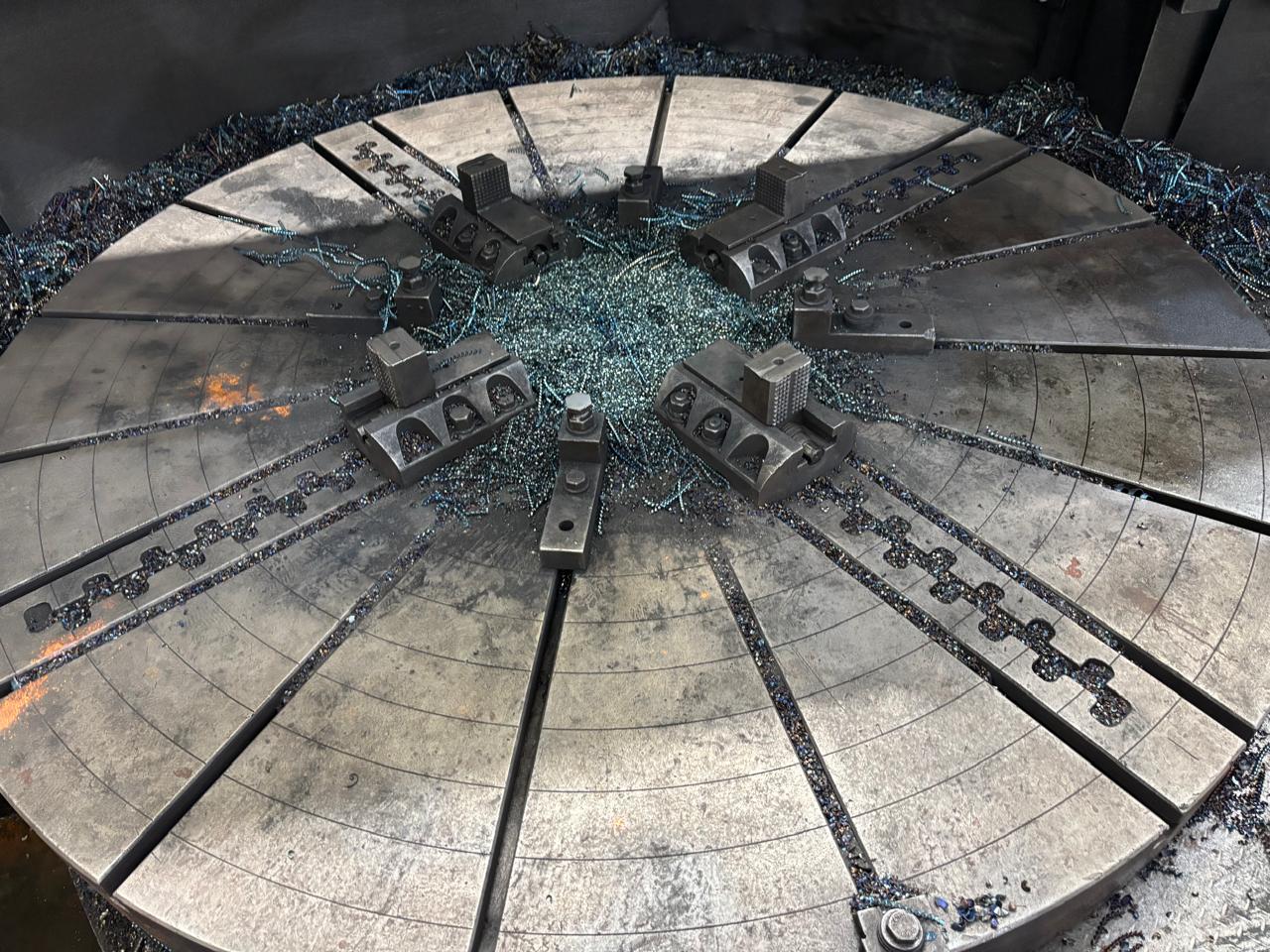

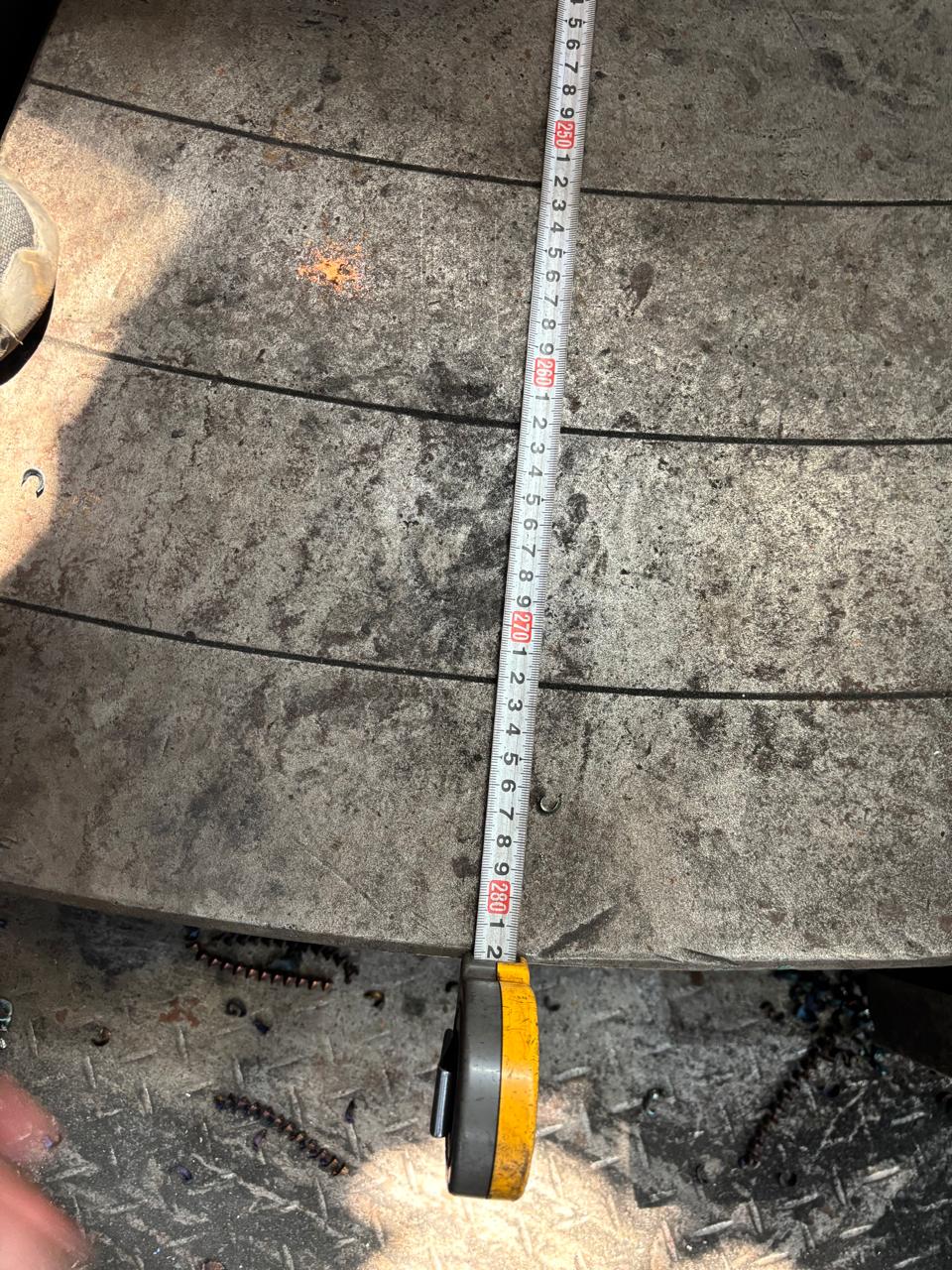

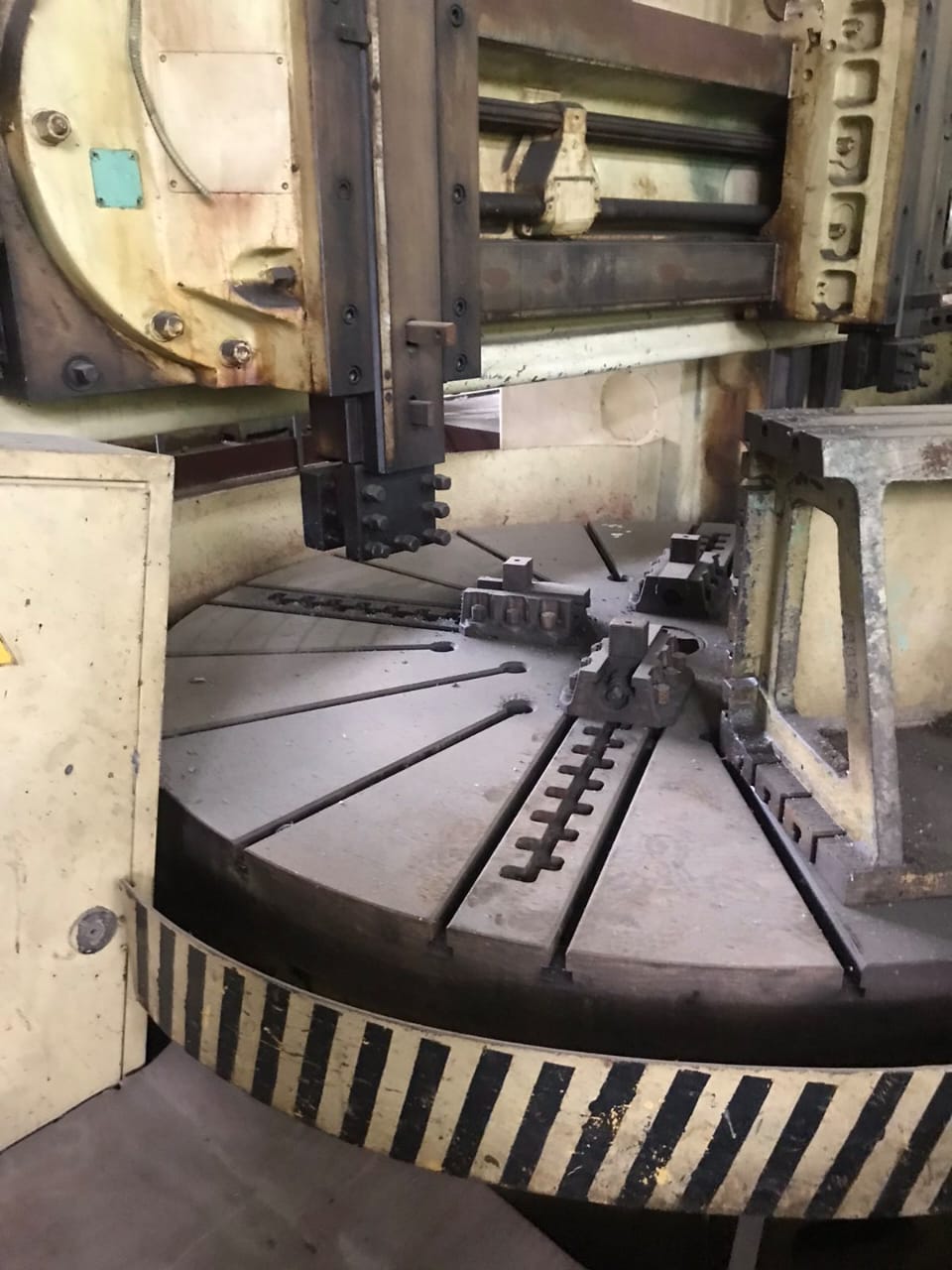

| Table Diameter | 2800 mm |
| Swing Over Table | 3200 mm |
| Maximum Workpiece Height | 1600 mm |
| Maximum Table Load Capacity | 16 Ton |
| Maximum Ram Travel | 1200 mm |
| Maximum Horizontal Carriage Travel | 1720 mm |
| Carriage Inclination | 30° |
| Number of Carriage Feeds | 16 |
| Carriage Feed Range | 0.09 – 16 mm/rev |
| Traversal Beam Feed Rate | 360 mm/min |
| Maximum Distance Between Ram Axes | 360 mm |
| Distance Between Table and Ram | 0 – 1780 mm |
| Distance Between Table and Lower Surface of Traversal Beam | 400 – 1640 mm |
| Number of Spindle Speeds | 18 |
| Table Speed Range | 1.25 – 63 RPM |
| Main Motor Power | 55 kW |
