| Specification | Details |
|---|---|

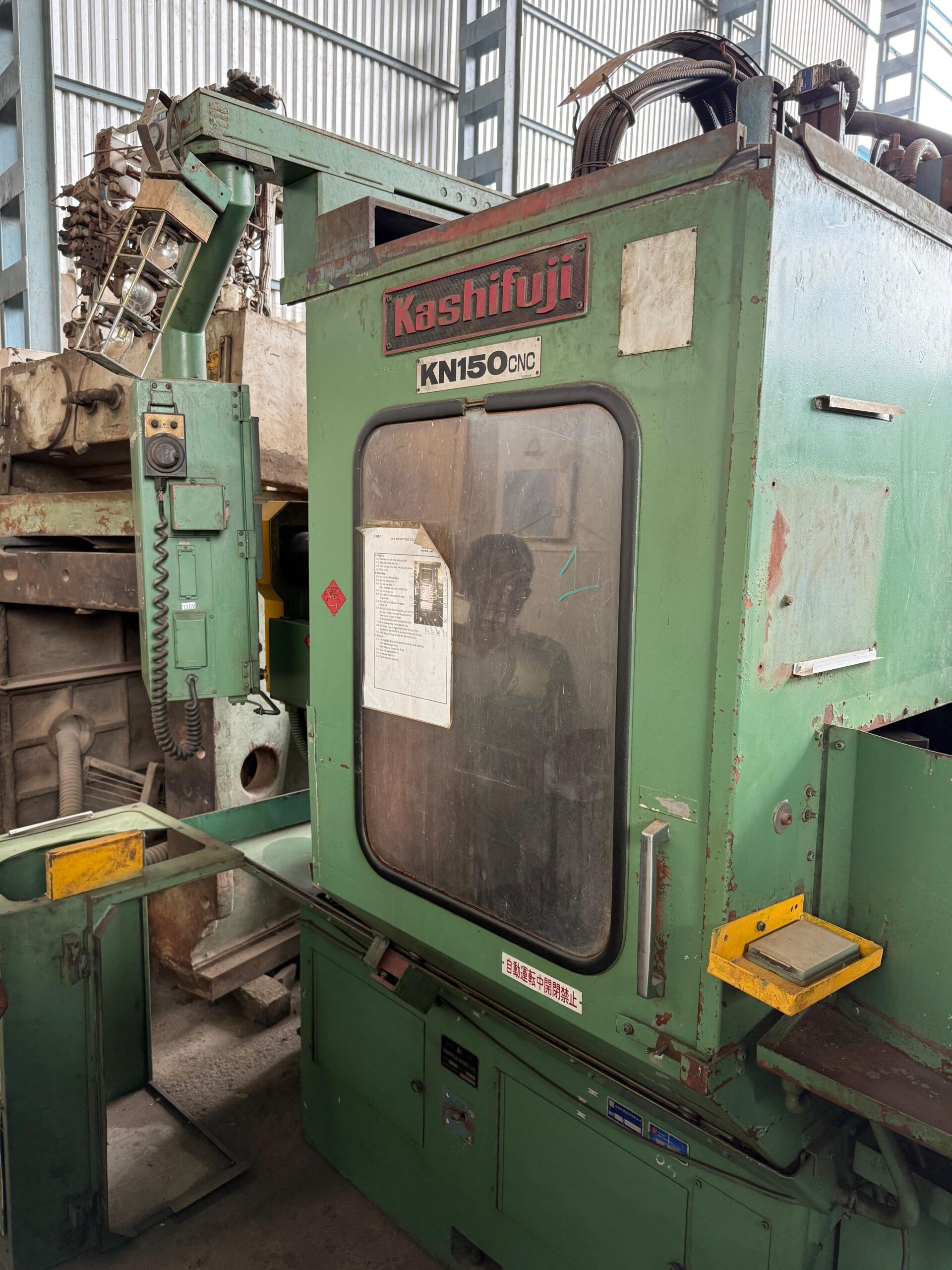

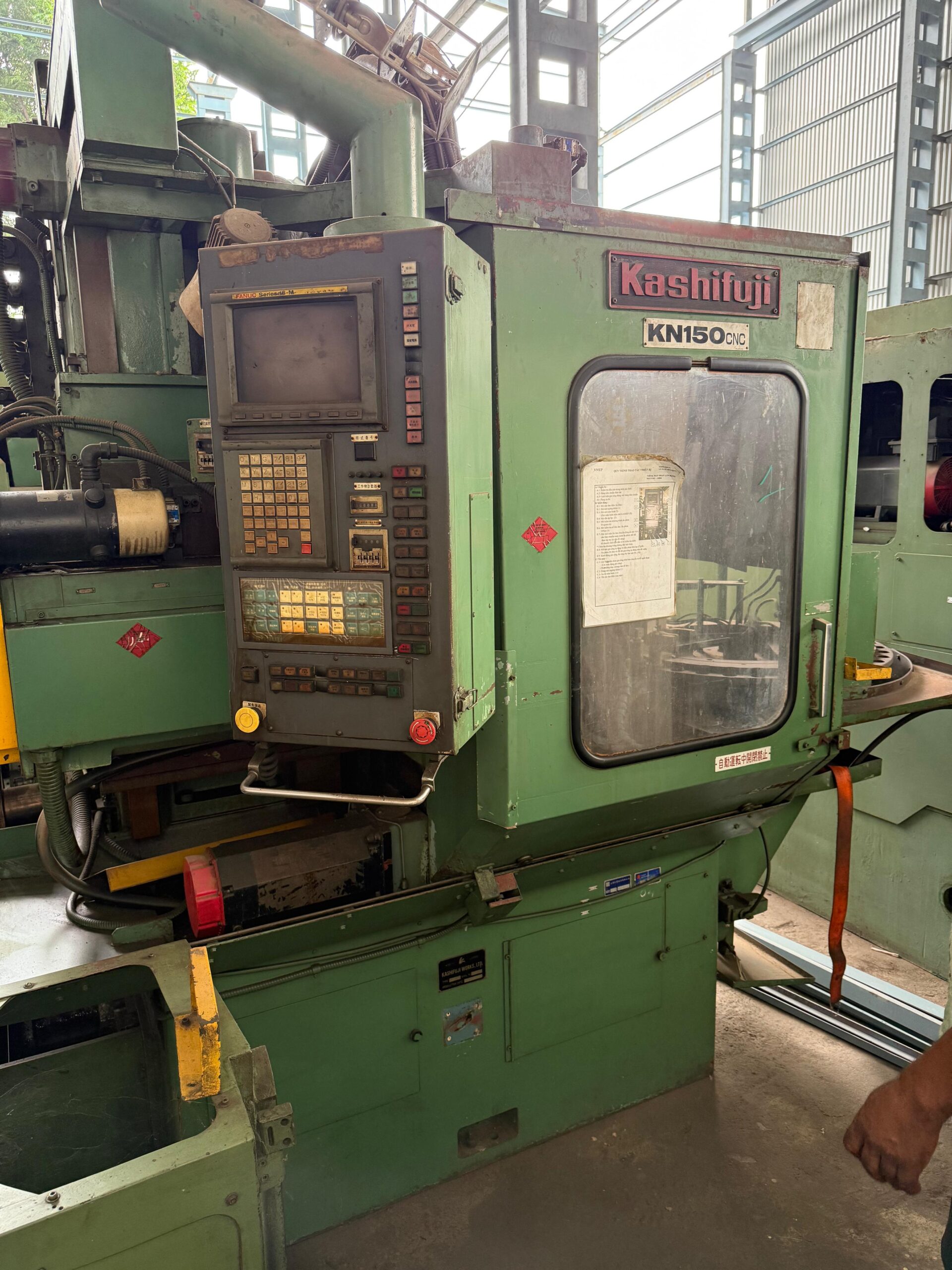

| Manufacturer / Model | Kashifuji (Japan), KNâ150 (CNC, 5âaxis) |
| Control System | FANUC 15M or 18iâMB CNC |
| Year | 1988 (one unit) / 1994 versions available |
| Max Gear Diameter | Ãâ¯150â¯mm |
| Max Module | 4â¯mm |
| Hob Axis Travel (Axial, Z) | 400â¯mm |
| Helix (Hob Tilt) Range | ±45° |
| Hob Shift Travel (Yâaxis) | 150â¯mm |
| Center Distance Range (Xâaxis) | 15â150â¯mm |
| Table Diameter | Ãâ¯190â¯mm |
| Hob Spindle Speed | 100â850â¯rpm (some units up to 1,330â¯rpm) |
| Controlled Axes | 5 CNC axes: X, Y, Z, A (hob tilt), C (table index) |
| Hob Dimensions | Ãâ¯110â¯Ãâ¯180â¯mm |
| Table Speed | 100â¯rpm |
