| Feature | Specification / Description |
|---|---|

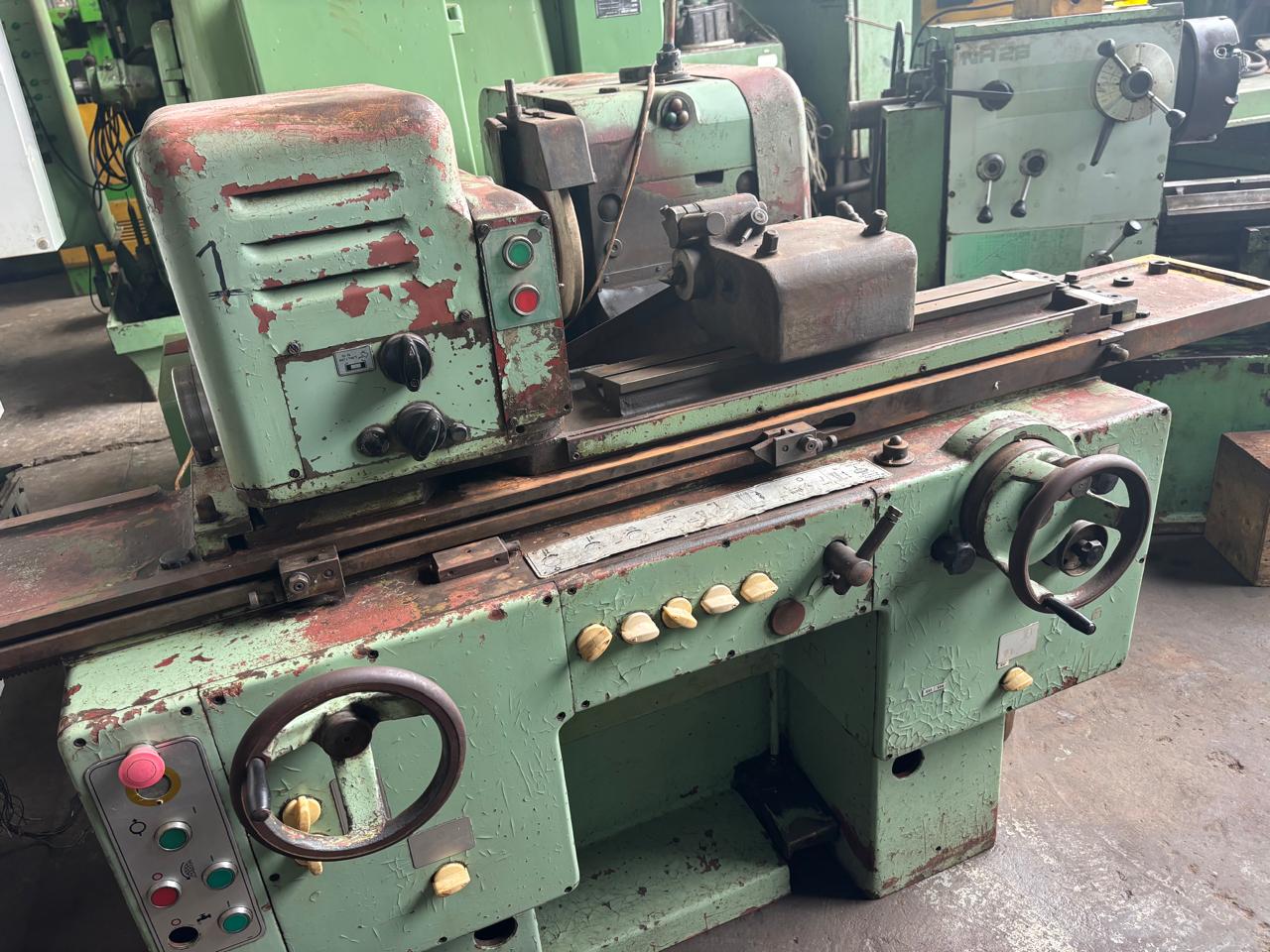

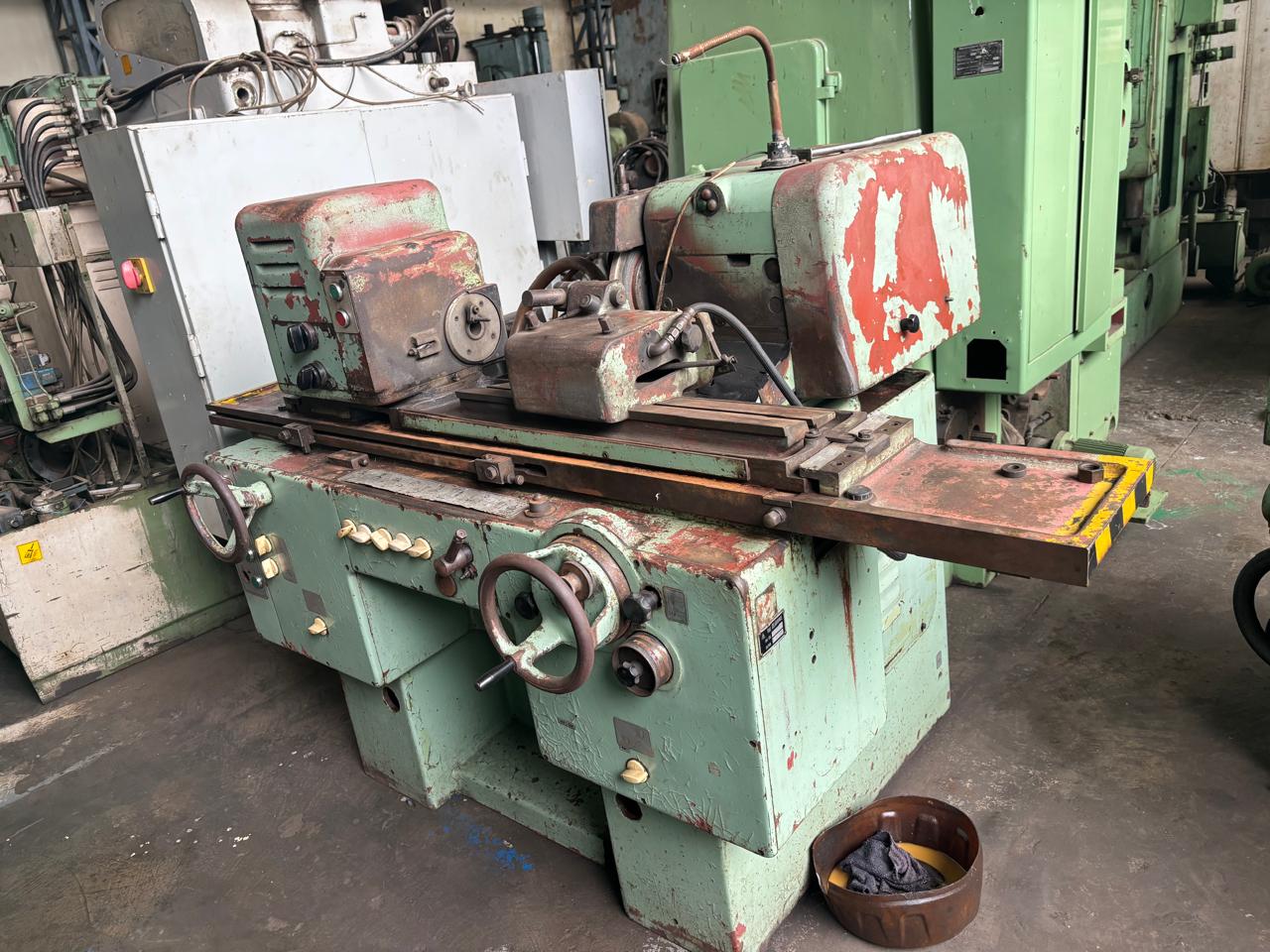

| Machine Type | Precision Cylindrical Grinding Machine |
| Make / Brand | STUDER |
| Country of Origin | Switzerland |
| Grinding Length | 500 mm |
| Center Height | 250 mm |
| Max. Grinding Diameter | Up to Ø 400 mm (approx.) |
| Swing Over Bed | Approx. Ø 500 mm |
| Wheel Head Type | Universal or Angular (depends on configuration) |
| Grinding Wheel Size | Ø 400 mm × Width 50 mm (approx.) |
| Control Type | Manual or CNC (specify model; STUDER has both variants) |
| Workhead Speed | Approx. 20 – 500 RPM (Variable) |
| Tailstock | Yes – Precision Manual Tailstock |
| Coolant System | Included with filtration unit |
| Motor Power | 5 – 7.5 HP (approx.) |
| Applications | Precision grinding of shafts, mandrels, tooling components, etc. |
| Condition | (Specify: Used / Refurbished / Good Working Condition) |
| Machine Dimensions | Approx. 2200 × 1500 × 1700 mm |
| Machine Weight | Approx. 3500 – 4000 kg |
| Included Accessories | Tailstock, internal grinding spindle (if available), dresser, coolant unit |
