| Parameter | Specification |
|---|---|
| Machine Type | Relieving Lathe |
| Manufacturer | NILES |

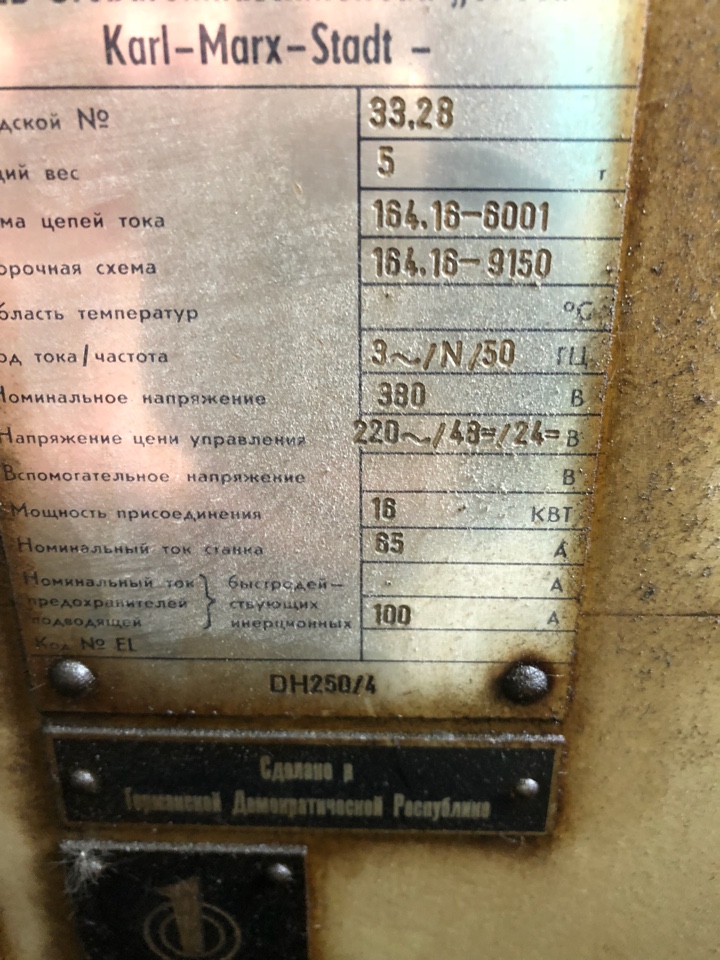

| Model | DH250 |
| Centre Height of Relief Turning Slide | 150 mm |
| Centre Height Over Bed | 300 mm |
| Max. Turning Length | 630 mm |
| Max. Centre Distance | 1000 mm |

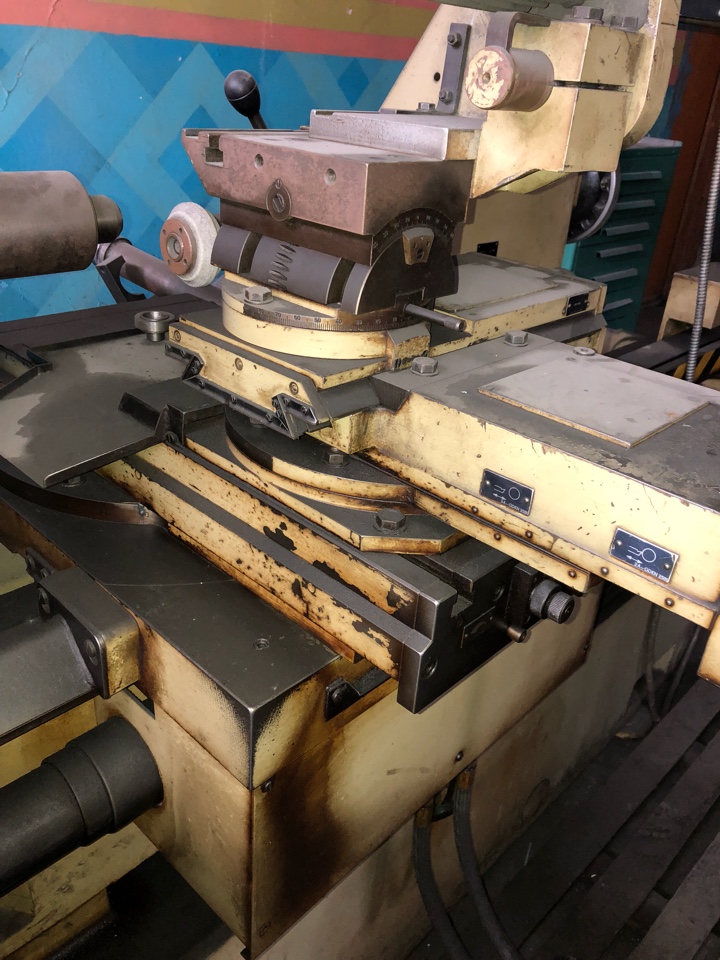

| Relief Turning & Cross Slide Swivelling | 360° |
| Work Spindle Bore | 27 mm |
| Tool Quick Draw-Back | 40 mm |
| Relief Turning Stroke | 0–32 mm (Stepless, 4-step range) |
| Spindle Speed Range | 1–400 rpm (Stepless, 4-step range) |
| Draw-Back Speed Range | 2.5–630 rpm |
| Metric Thread Range | 0.4–71 mm |
| Longitudinal Feeds | 18 feeds, 0.063–10 mm |
| Main Motor Power | 9 kW |
| Power Supply | 380 V, 50 Hz |
| Machine Weight | 6500 kg |
