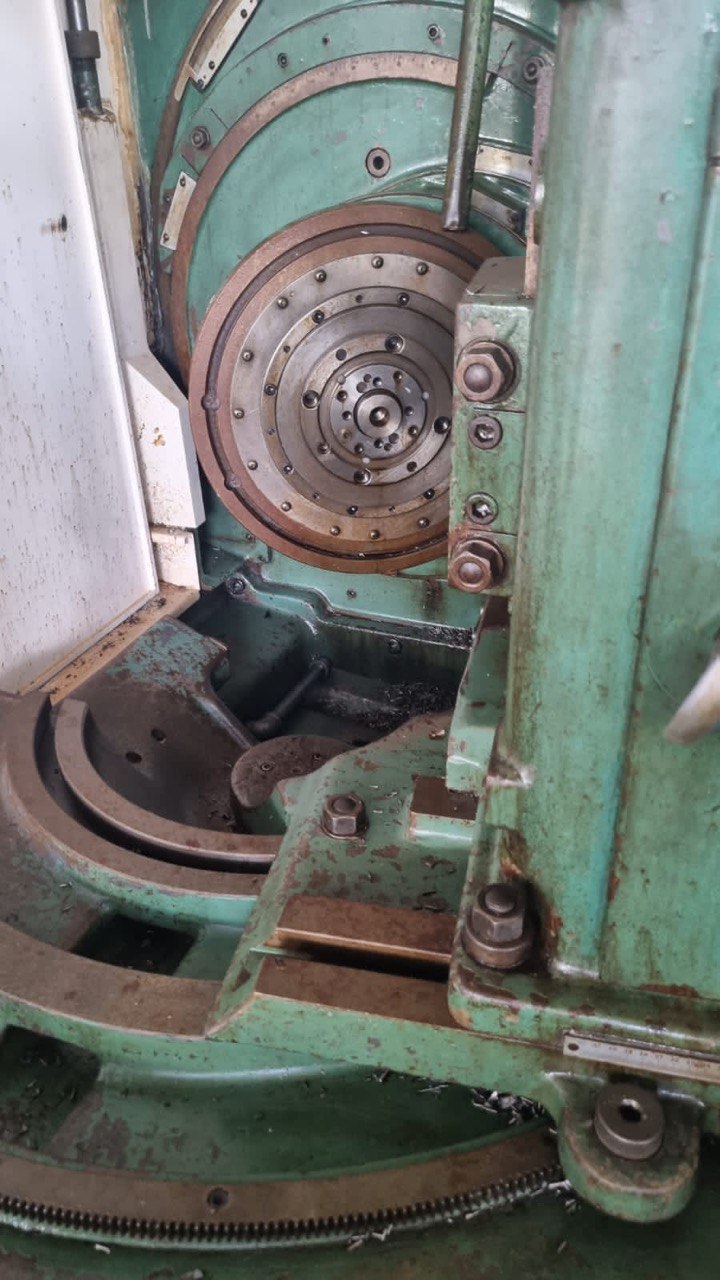

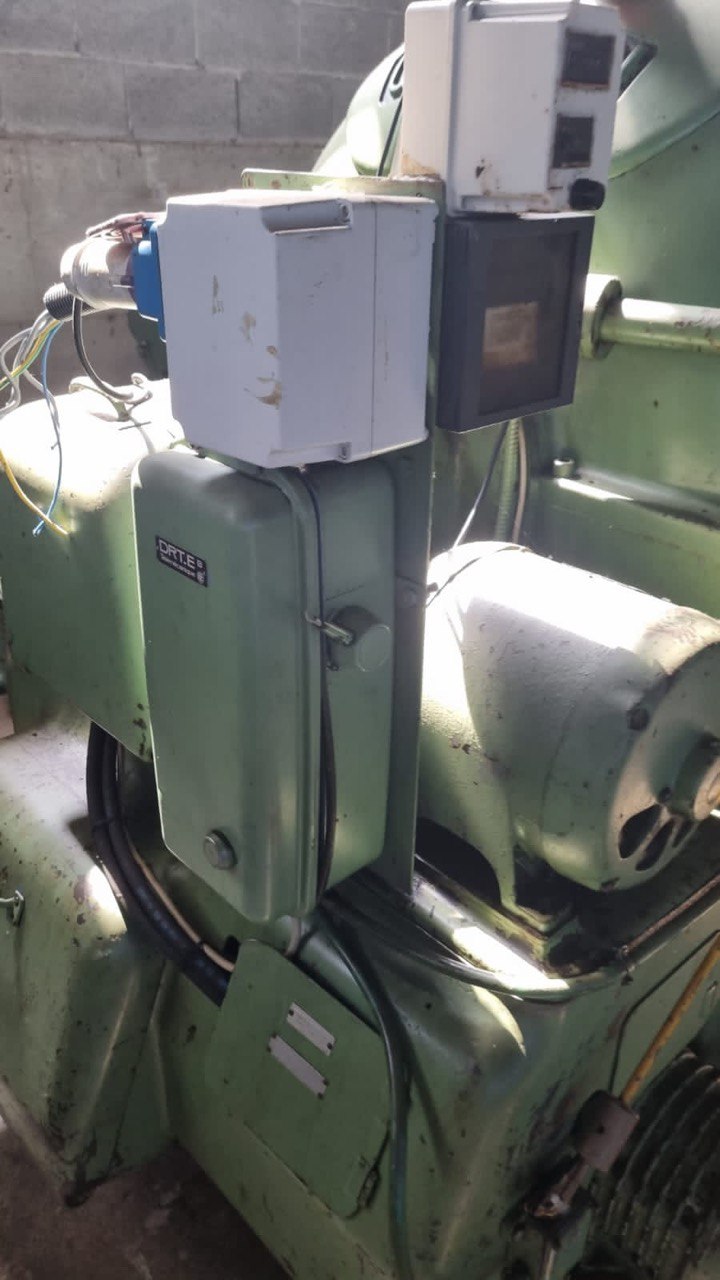

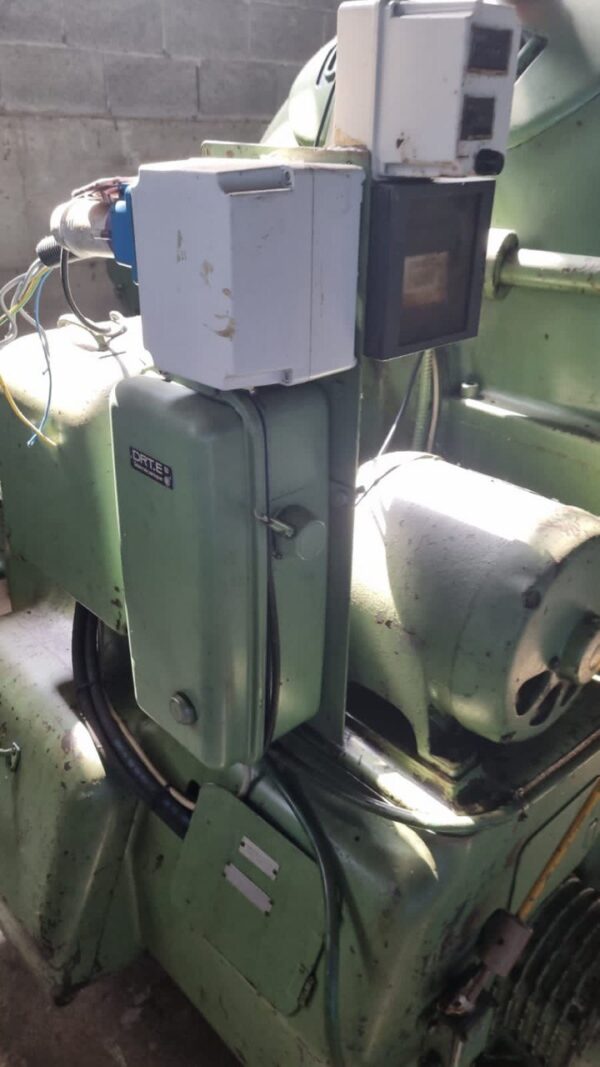

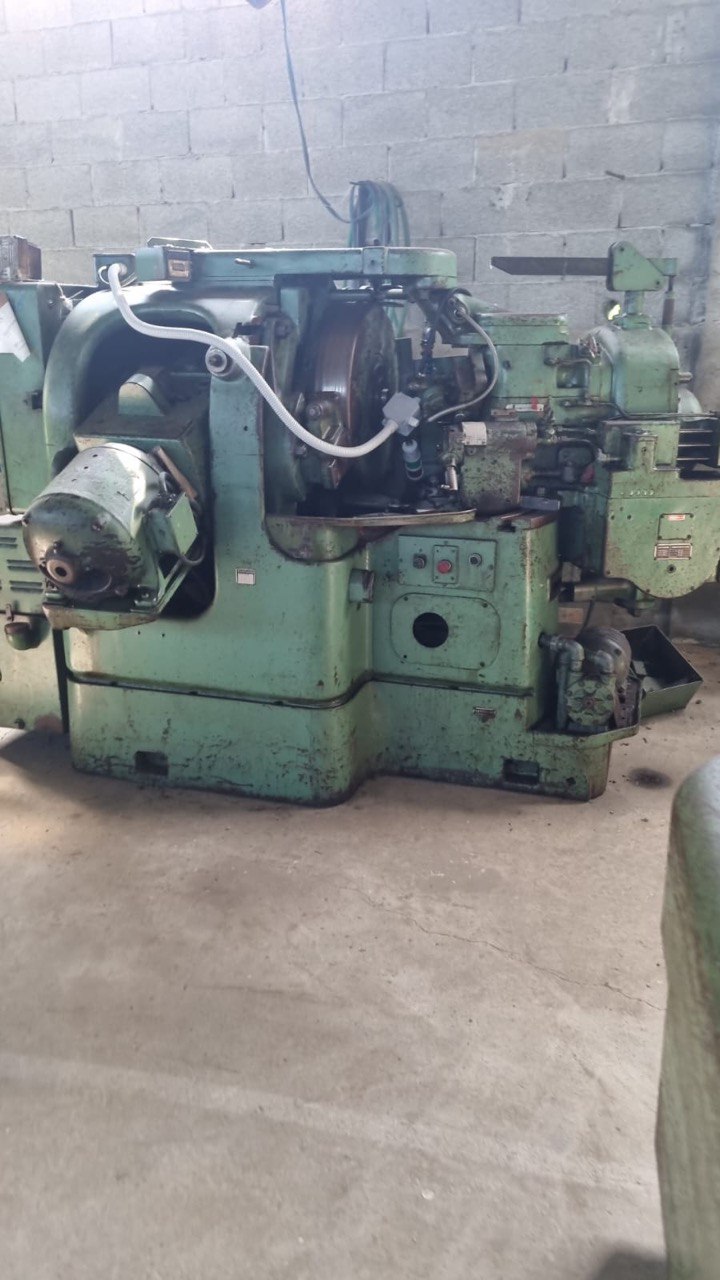

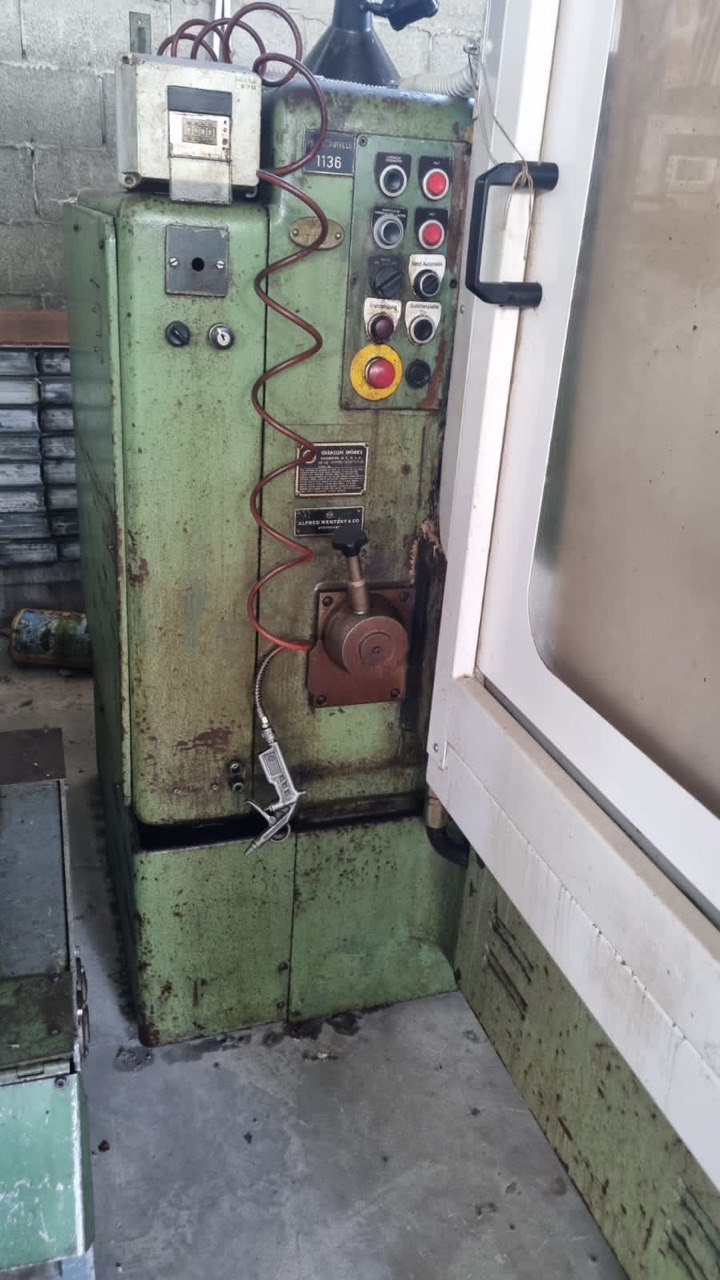

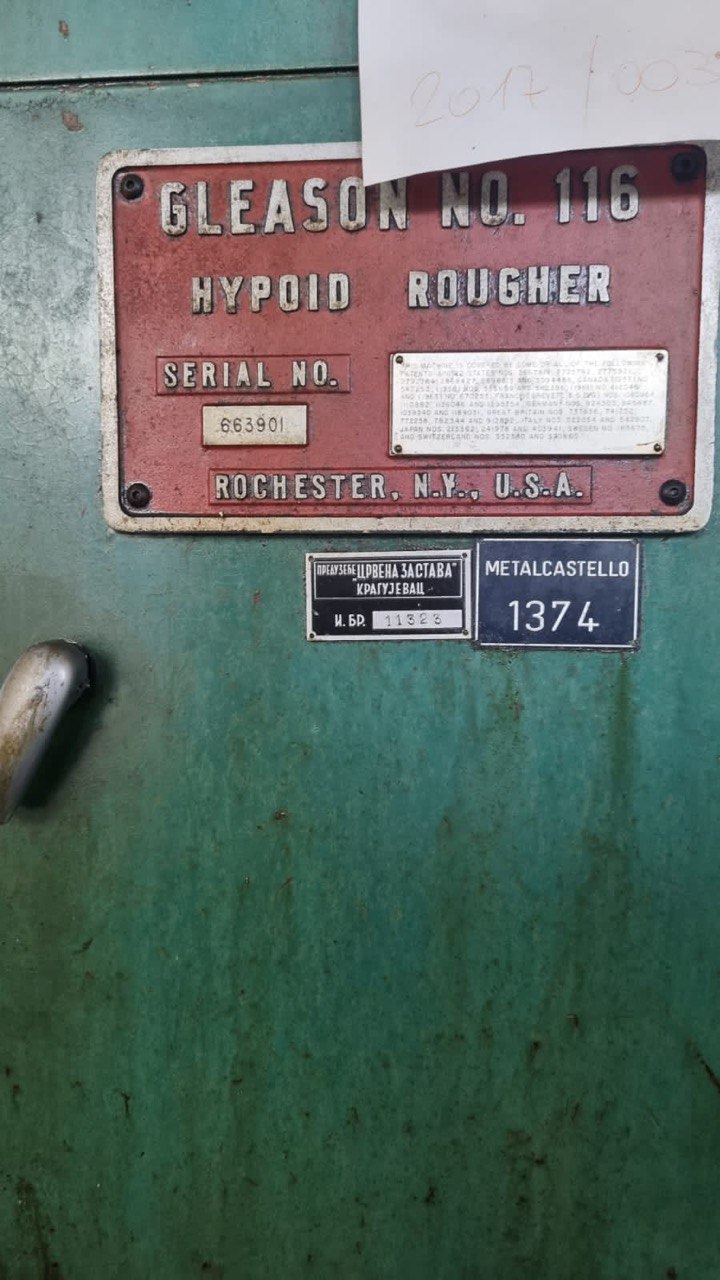

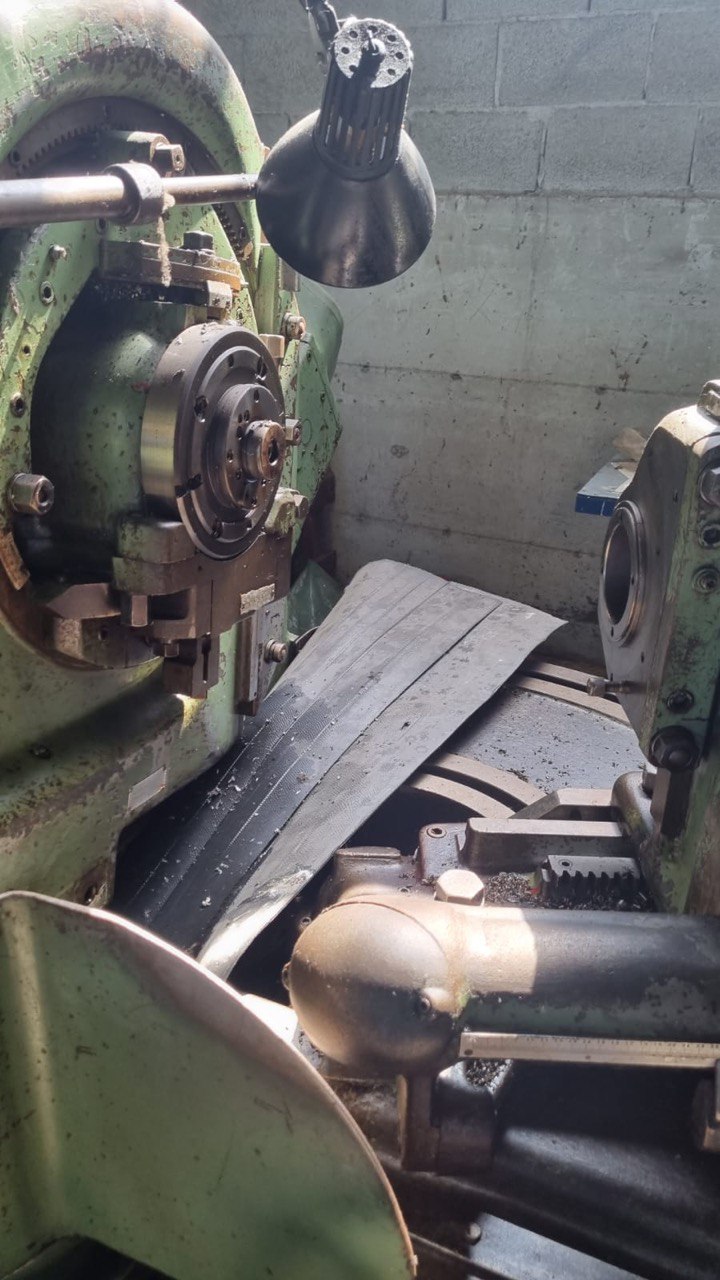

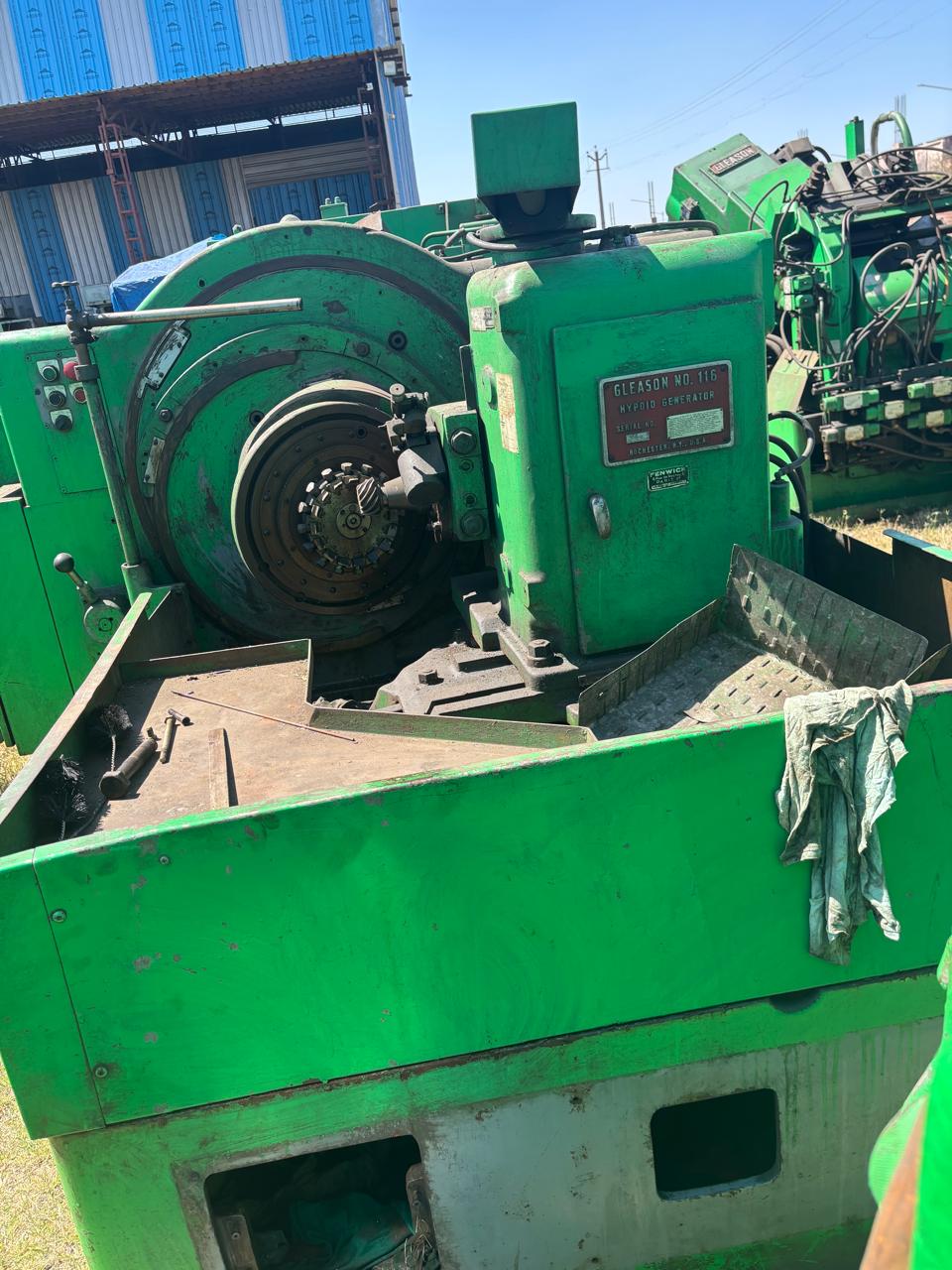

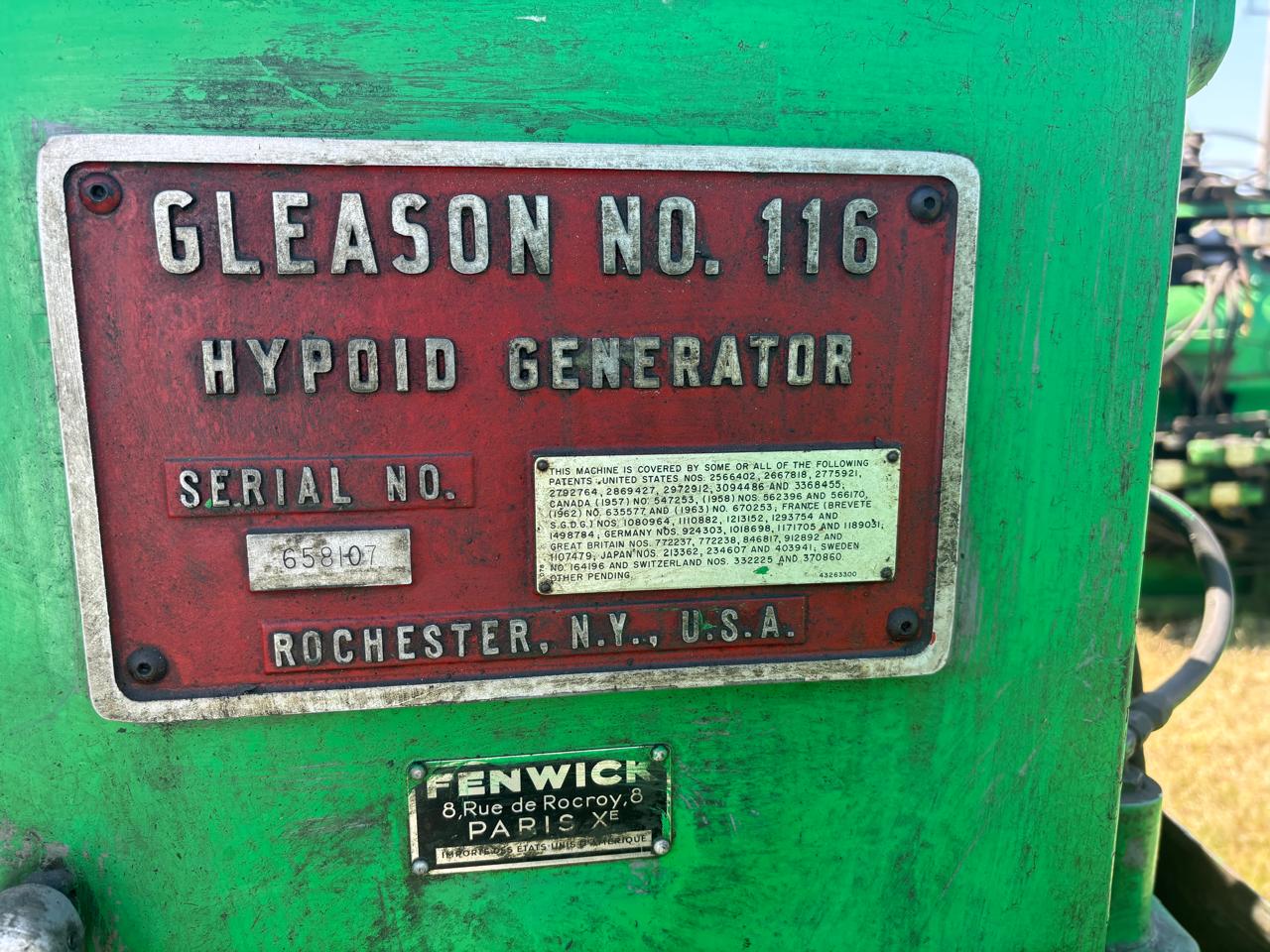

MAKE: Gleason
MODEL: 116
CAPACITY
Max cone distance (30 degree angle and 300 mm cutter): 228 m
Max extreme ratio: 10 to 1
Max gear pitch diameter (30 degree spiral angle):
-Ratio 10 to 1: 457 mm
-Ratio 2 to 1: 406 mm
-Ratio 1 to 1: 323 mm
Diametral pitch (coarsest): 12,7 mod.
Max full depth: 25,4 mm
Max face width: 69,9 mm
Number of teeth: 5 to 150
