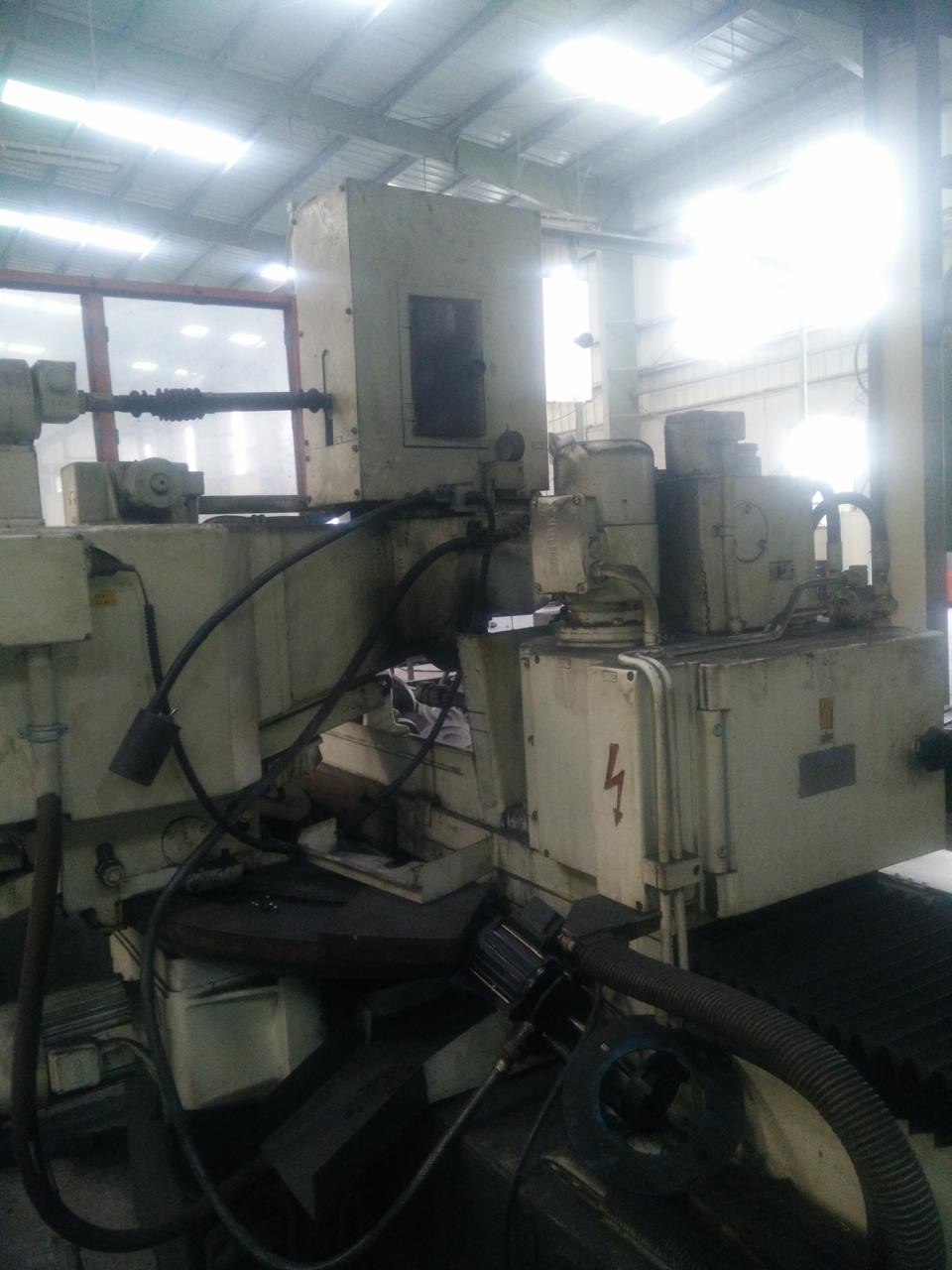

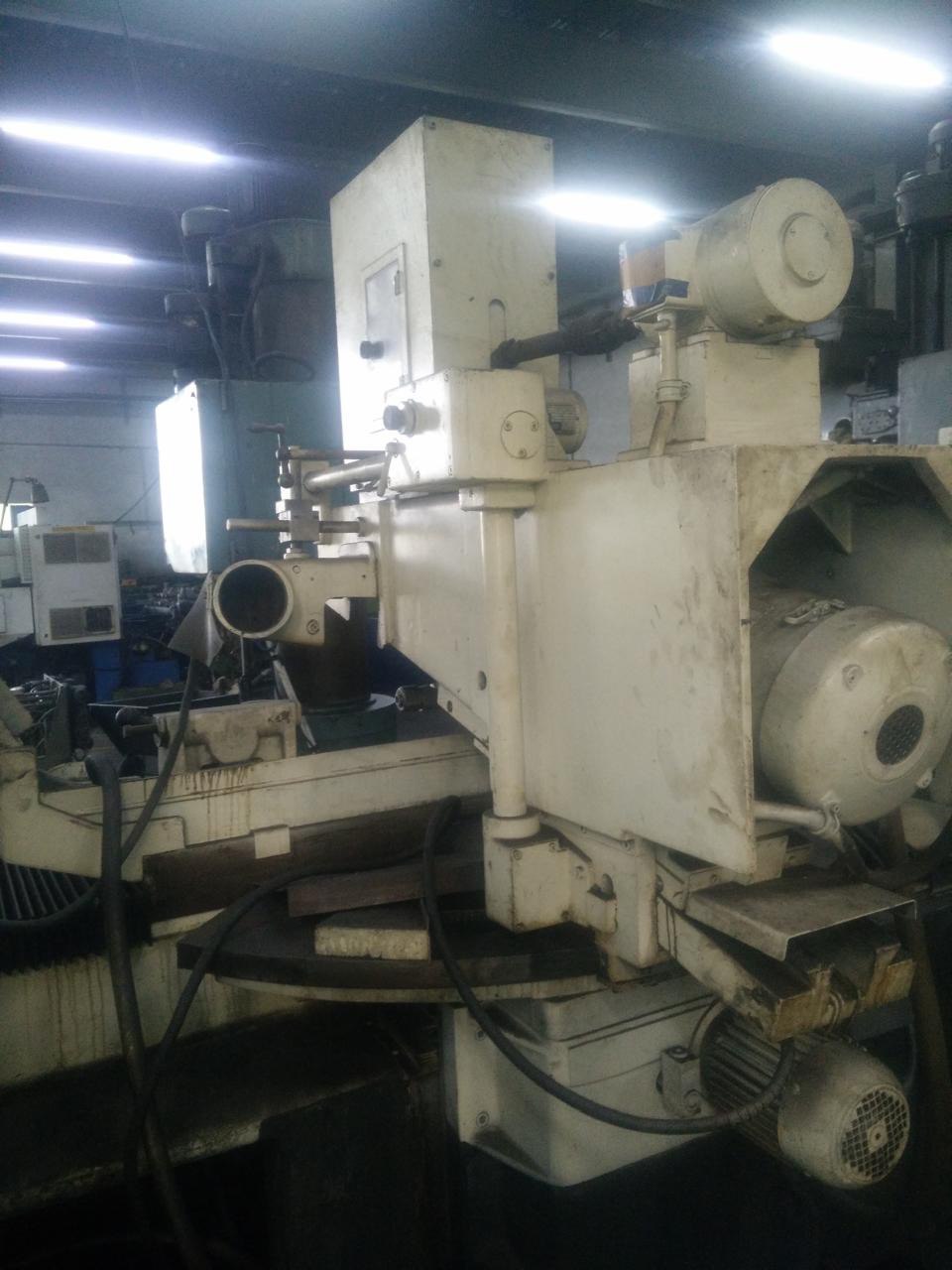

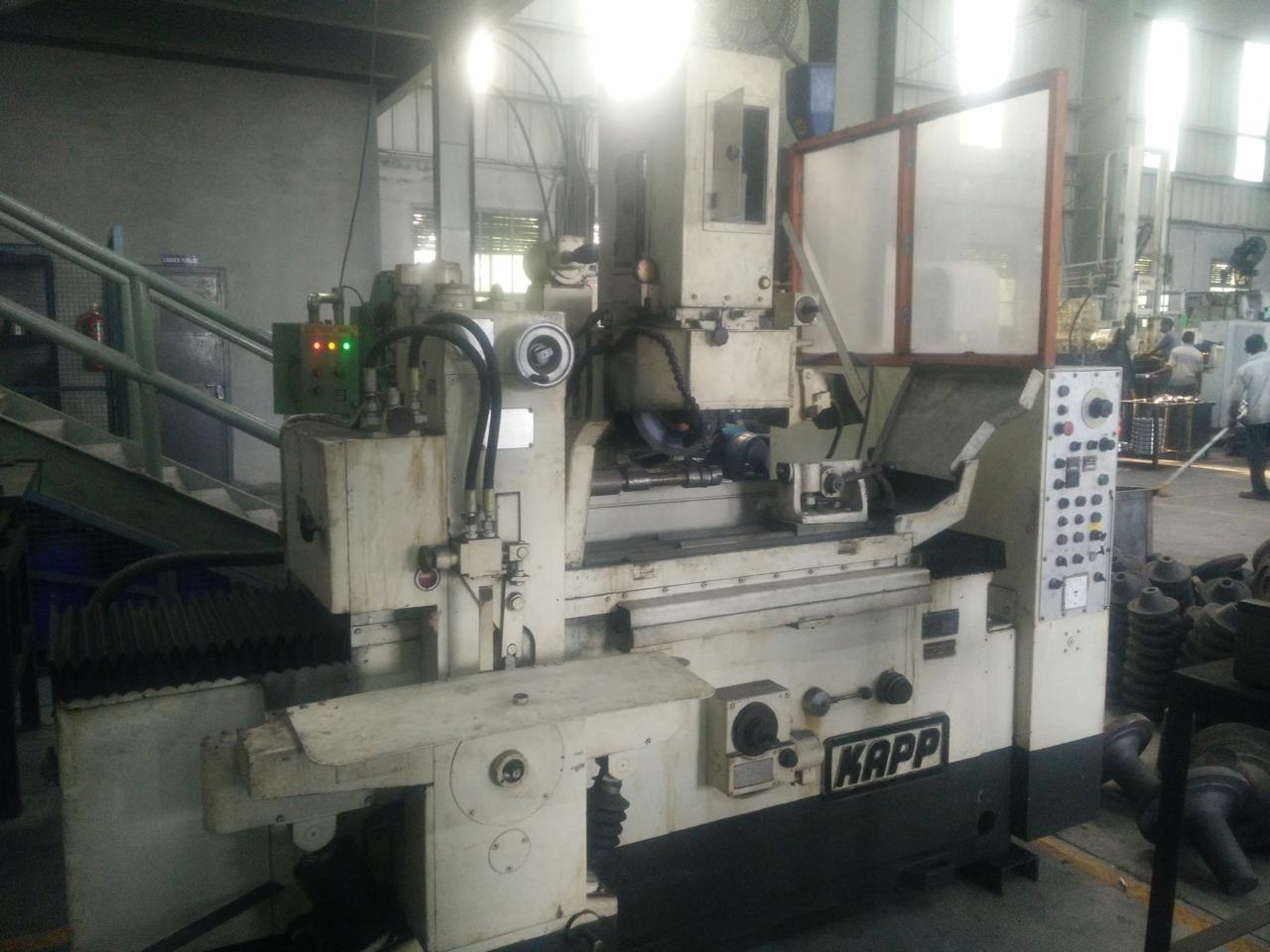

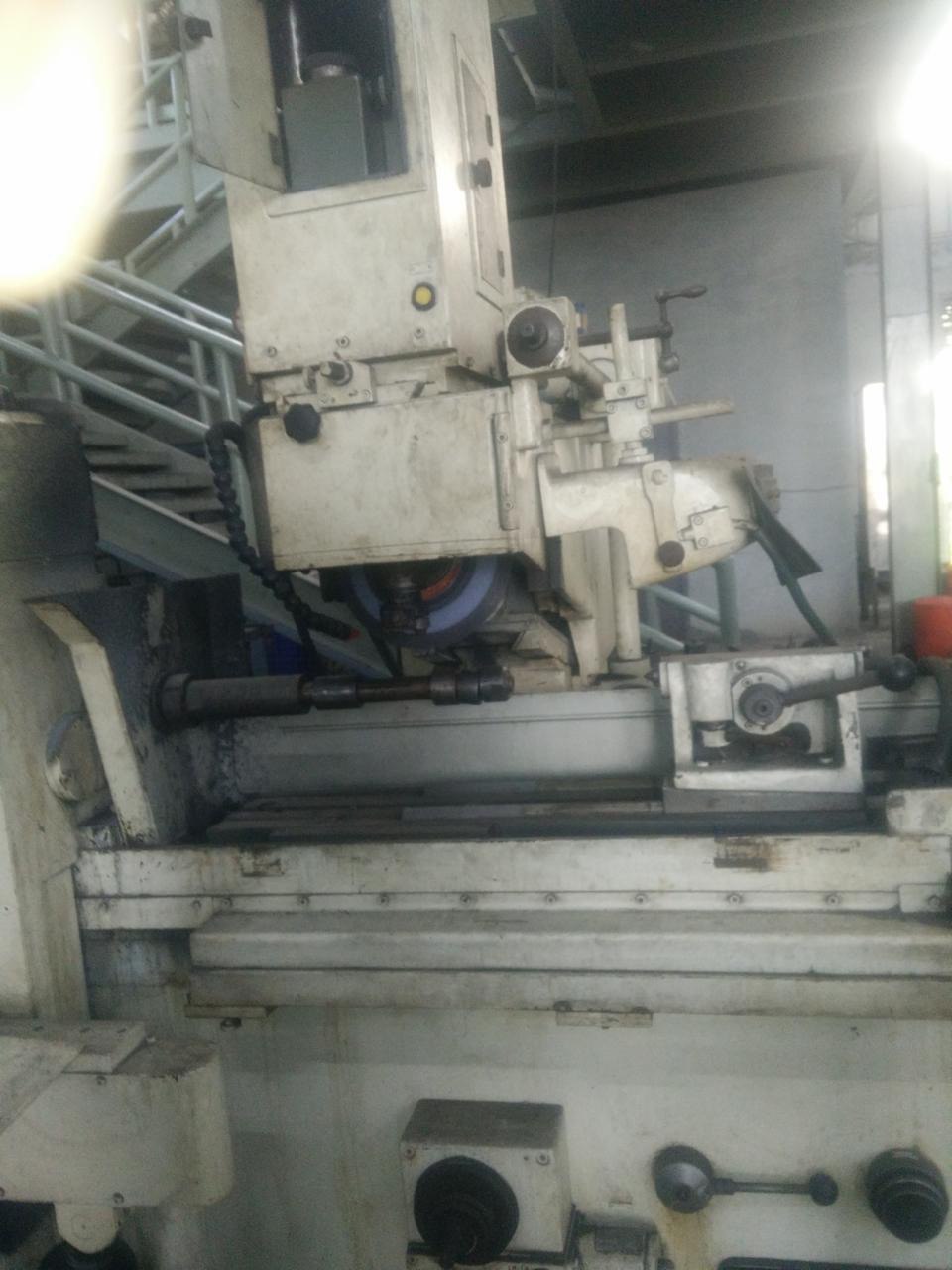

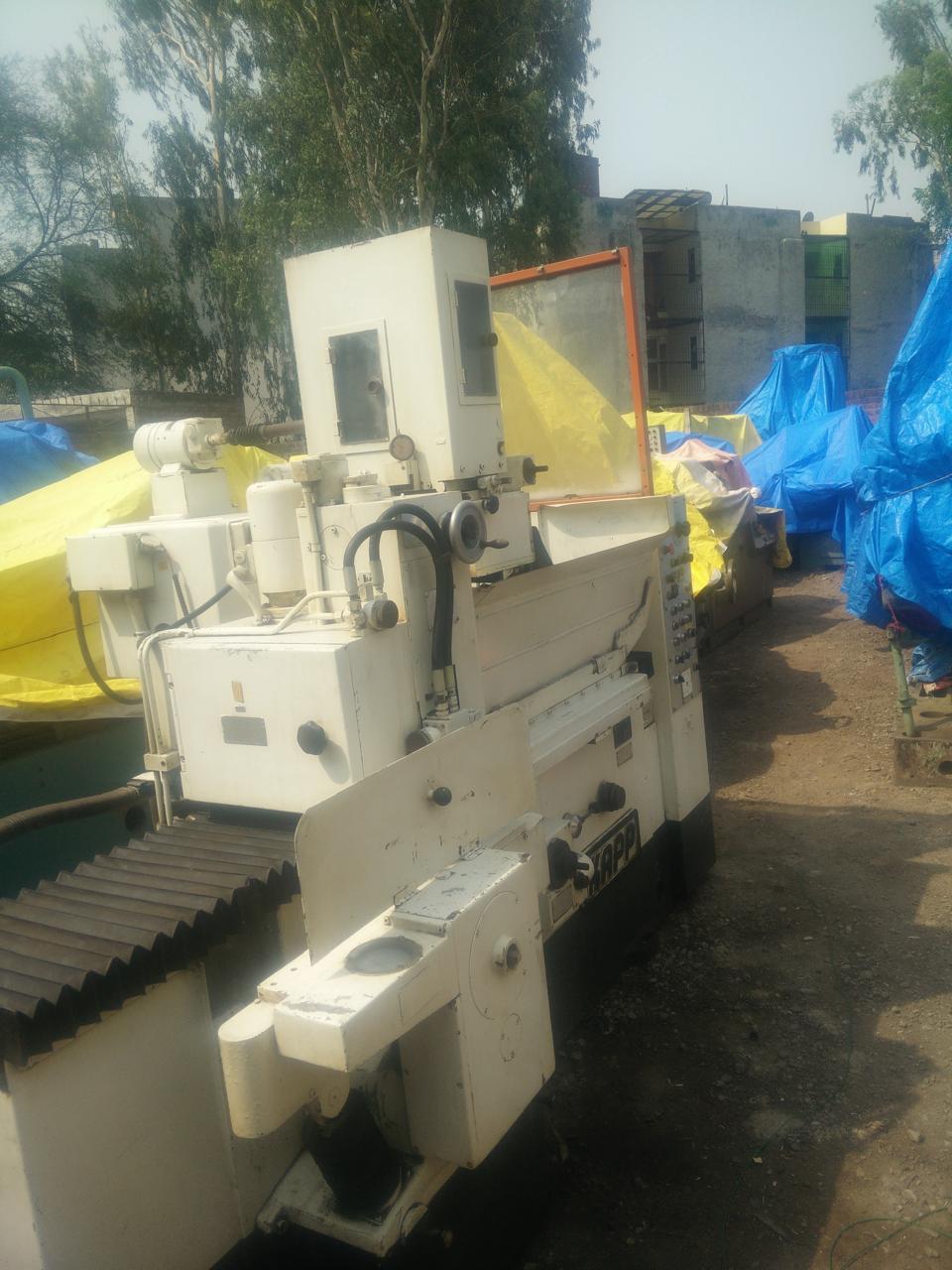

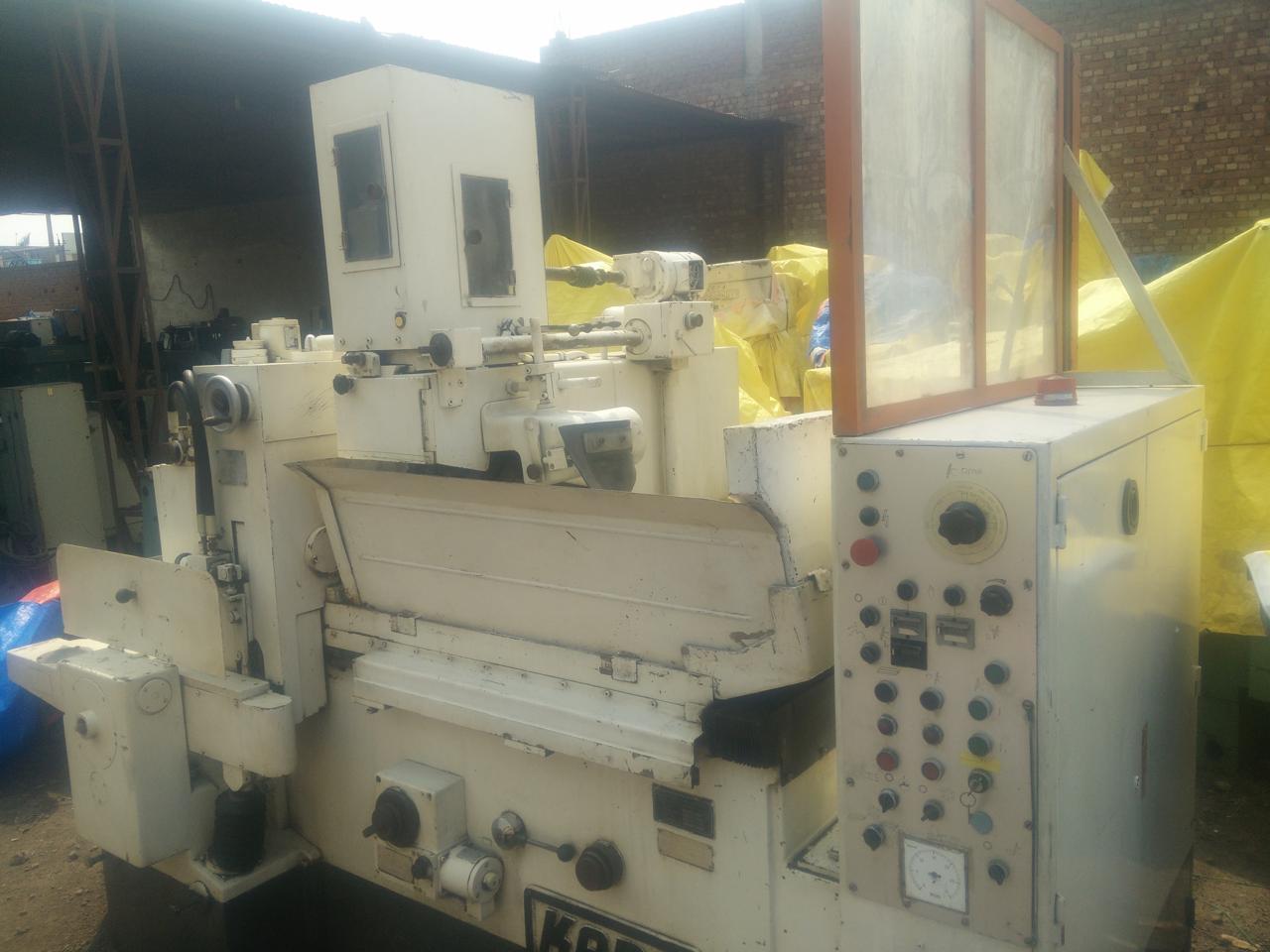

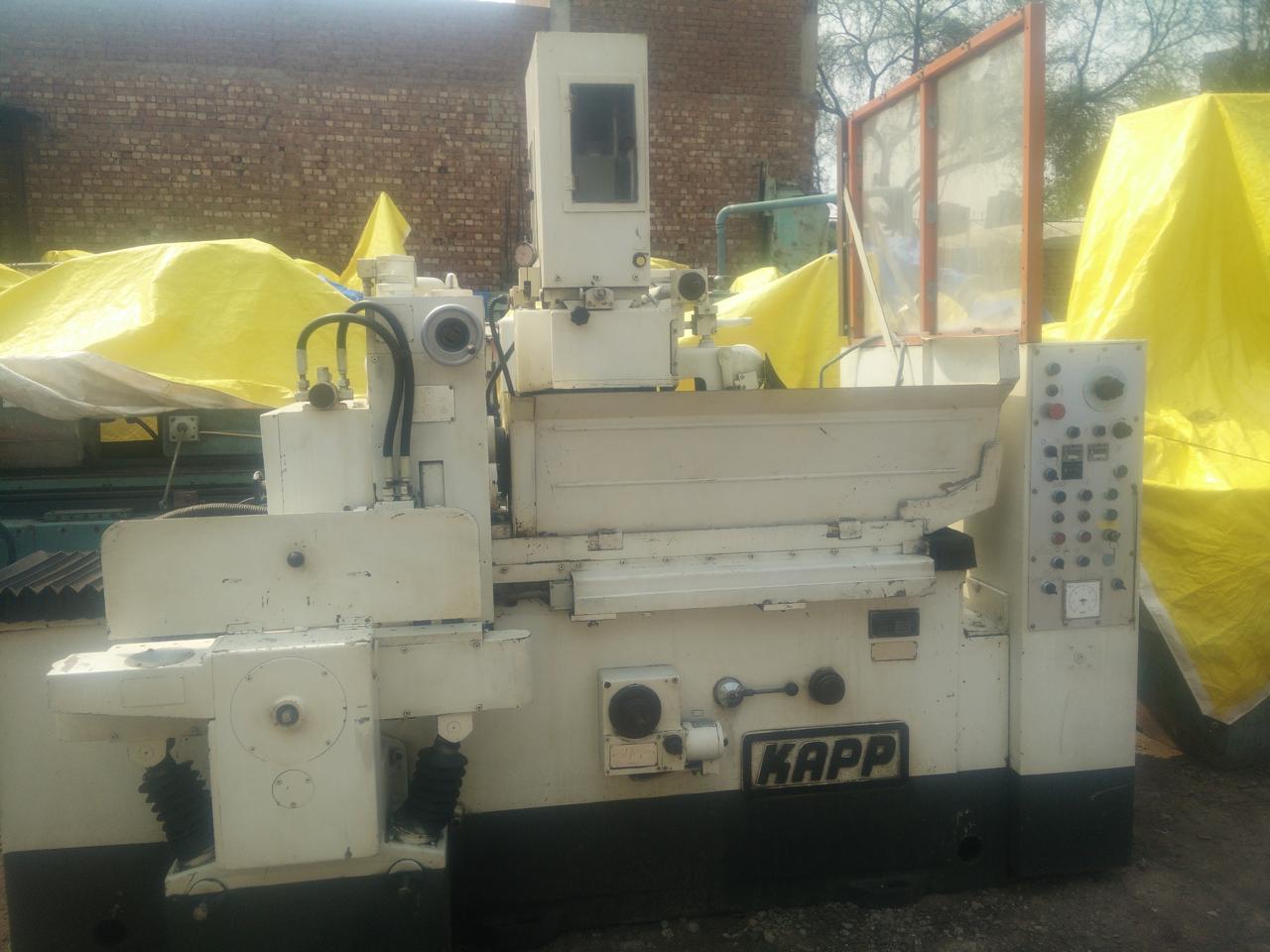

MAKE: CAPP

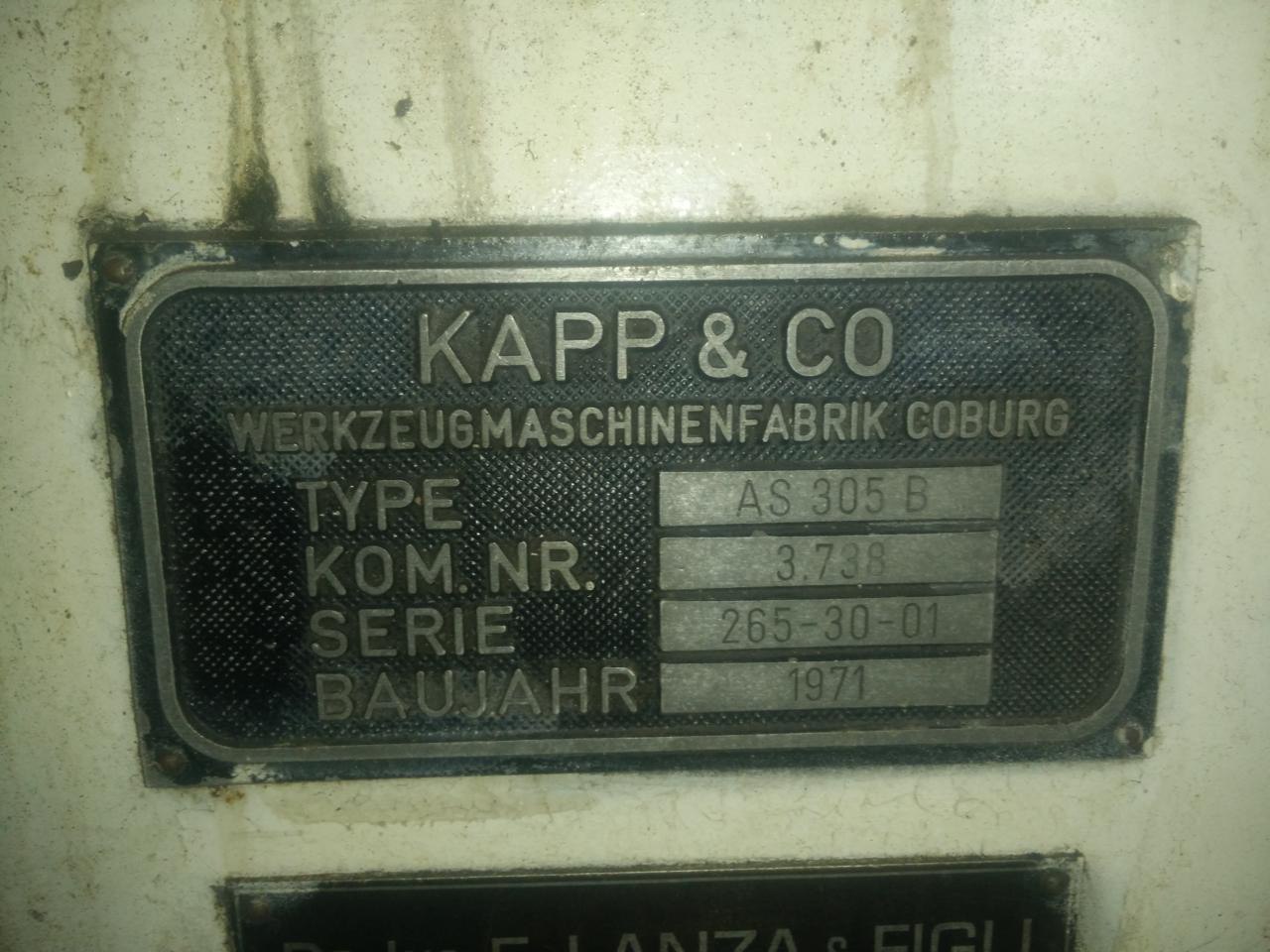

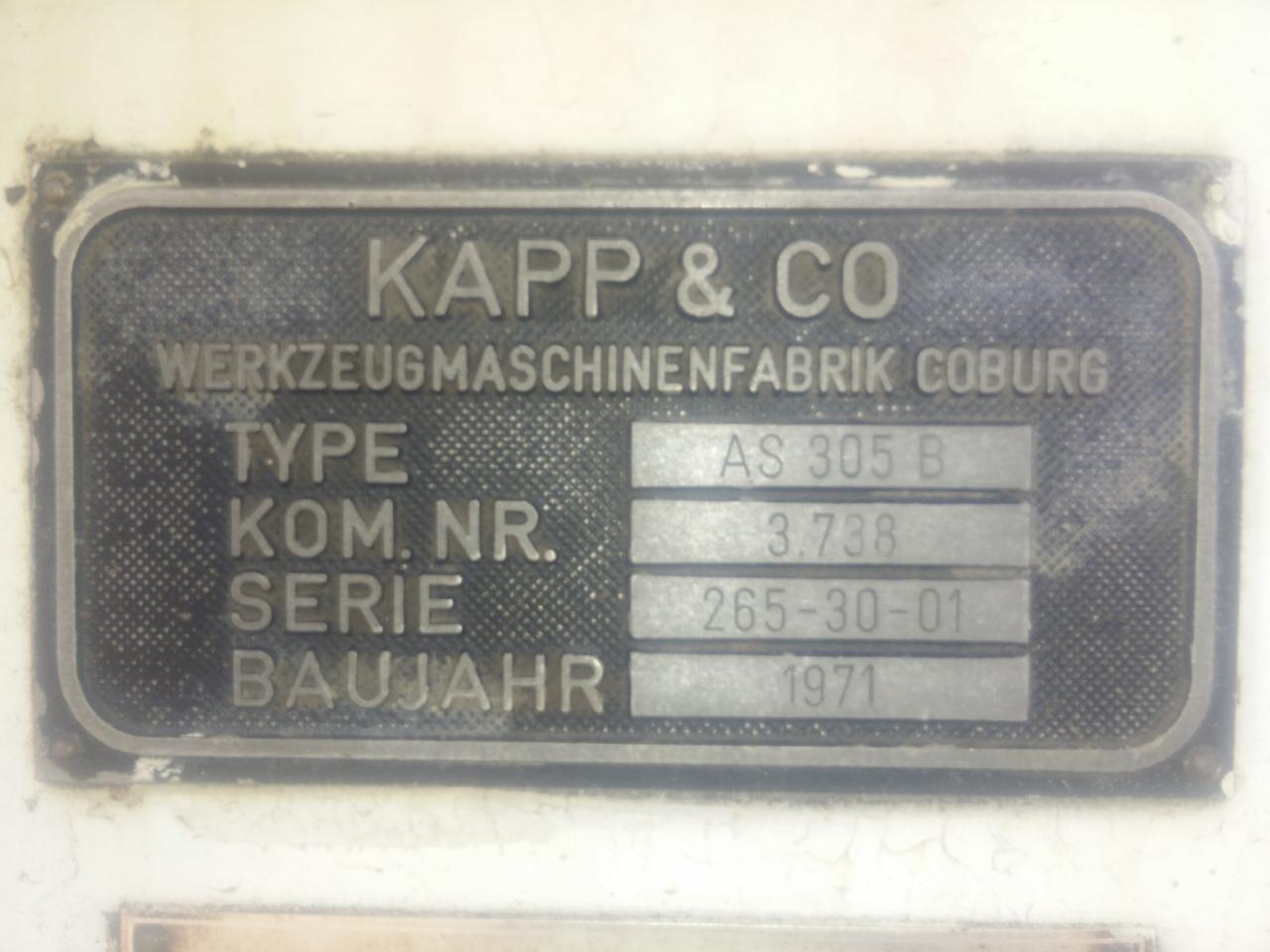

MODEL: AST305B
Max. centre width: 600 mm
Centre height: 155 mm
Maximum clamping length for arbors: 700 mm
Max. table travel: 550 mm
Maximum grinding depth: 90 mm
Table speed infinitely variable: 0-16 m/min
Axial adjustment of the grinding spindle: 220 mm
Vertical adjustment of the grinding slide: 200 mm
Speed of the grinding spindle in standard version: 2200 rpm
Largest number of flutes: 44
Swivelling range of the grinding slide on both sides: 45 degrees
Swivelling range of the grinding spindle from the horizontal to the top: 15 degrees
Largest grinding wheel diameter: 300 mm
Smallest grinding wheel diameter: 150 mm
Largest workpiece diameter: 300 mm
Taper of the main spindle: Morse 4
