| Specification | Details |
|---|---|

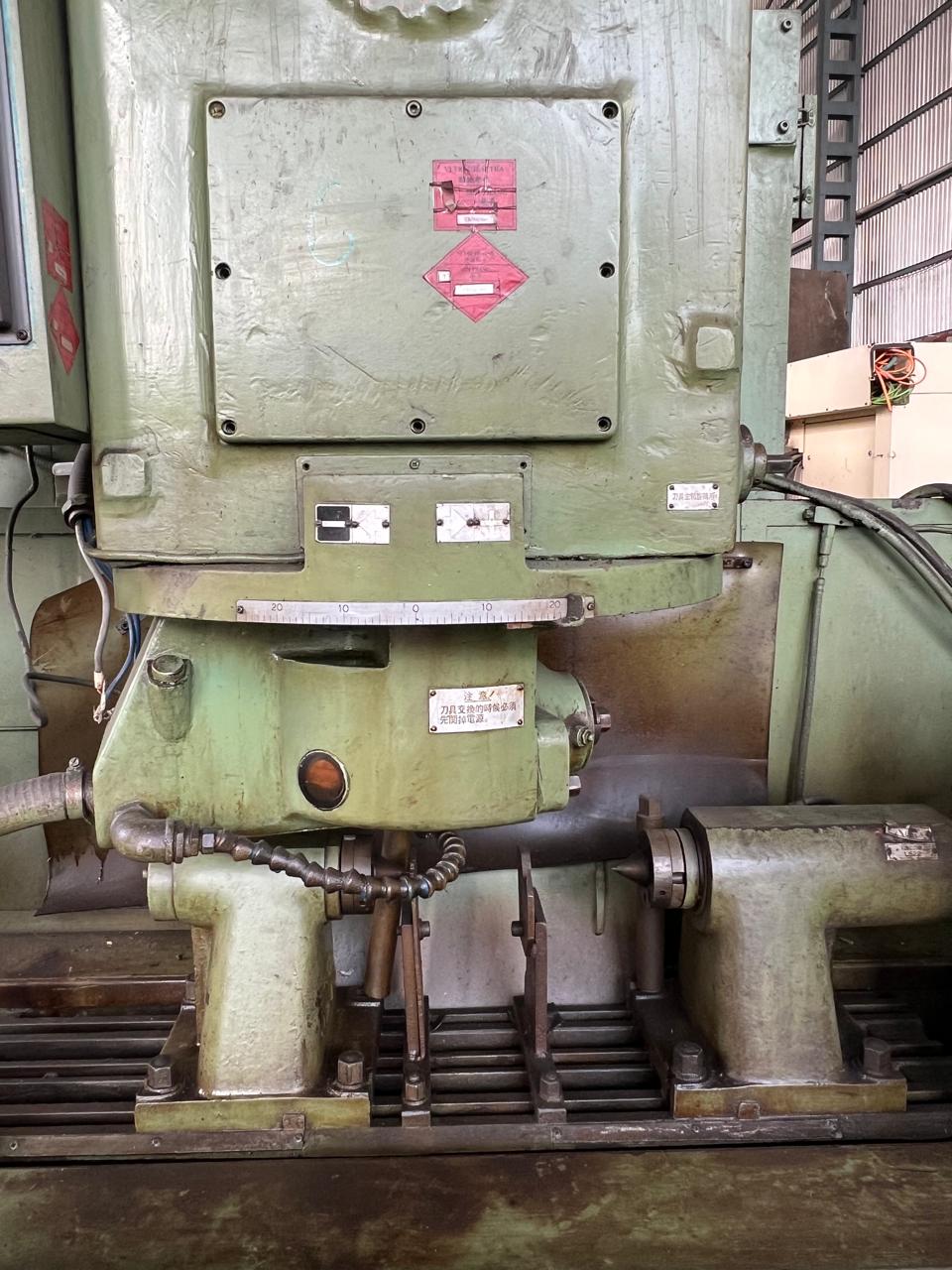

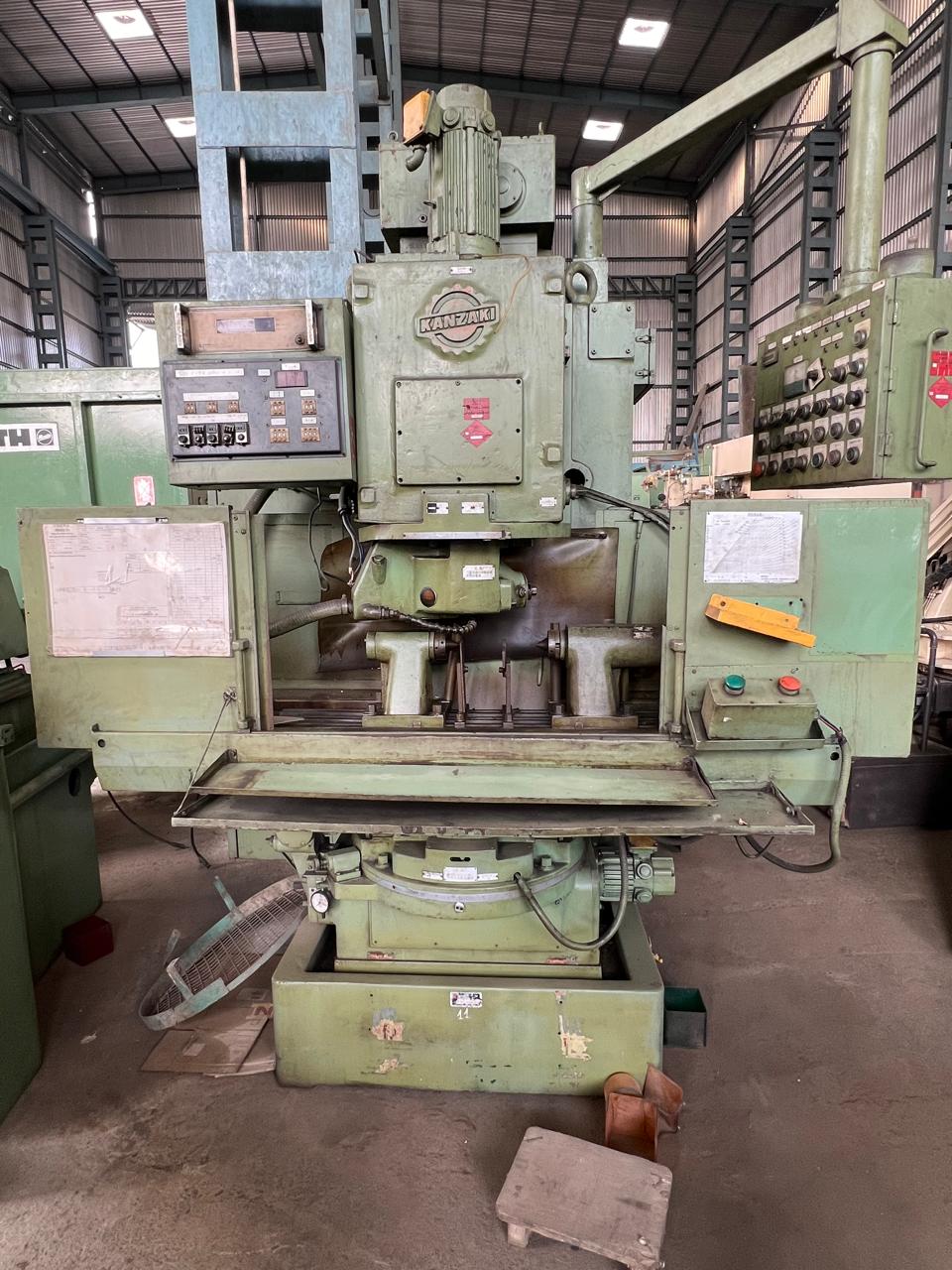

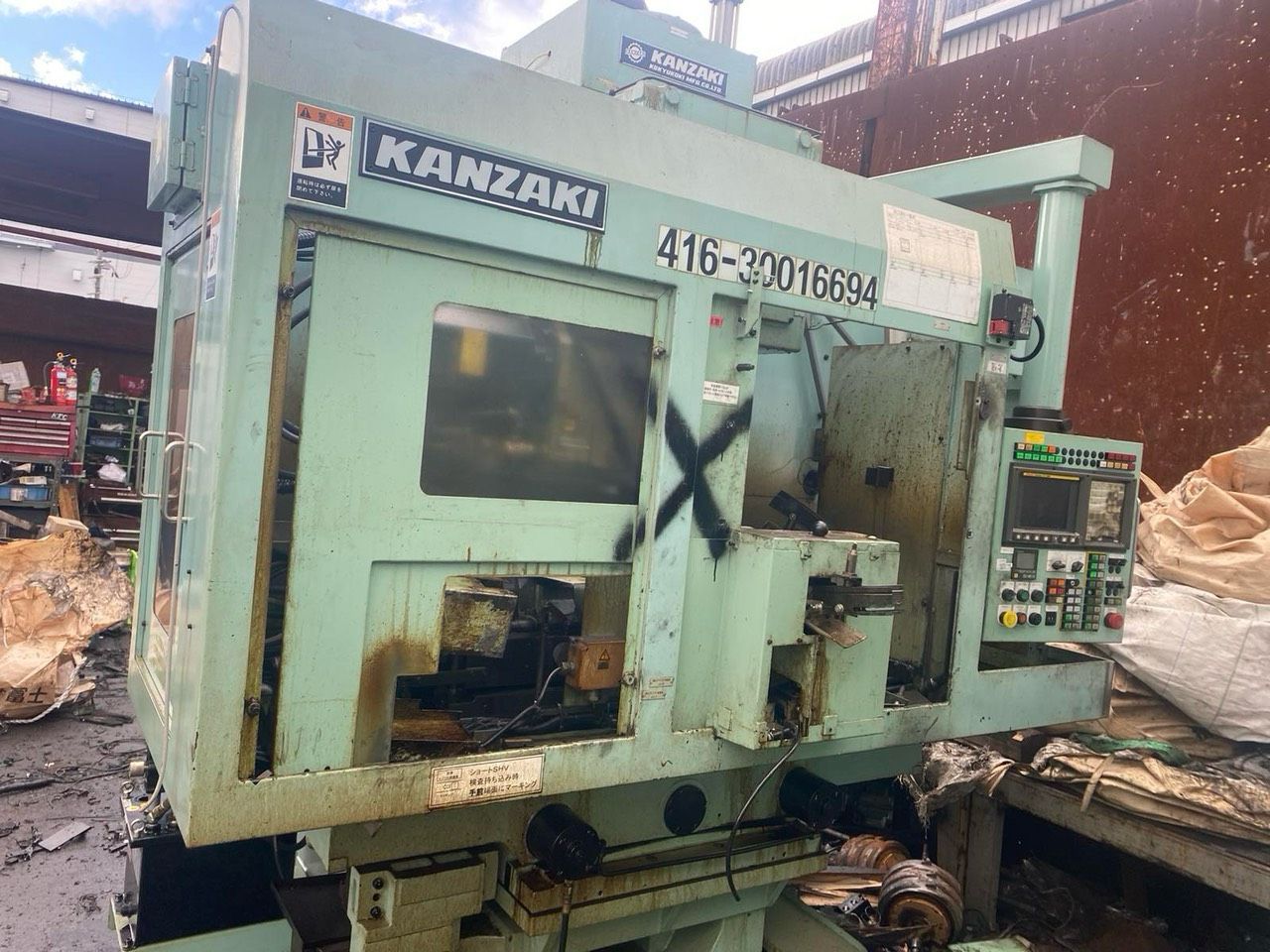

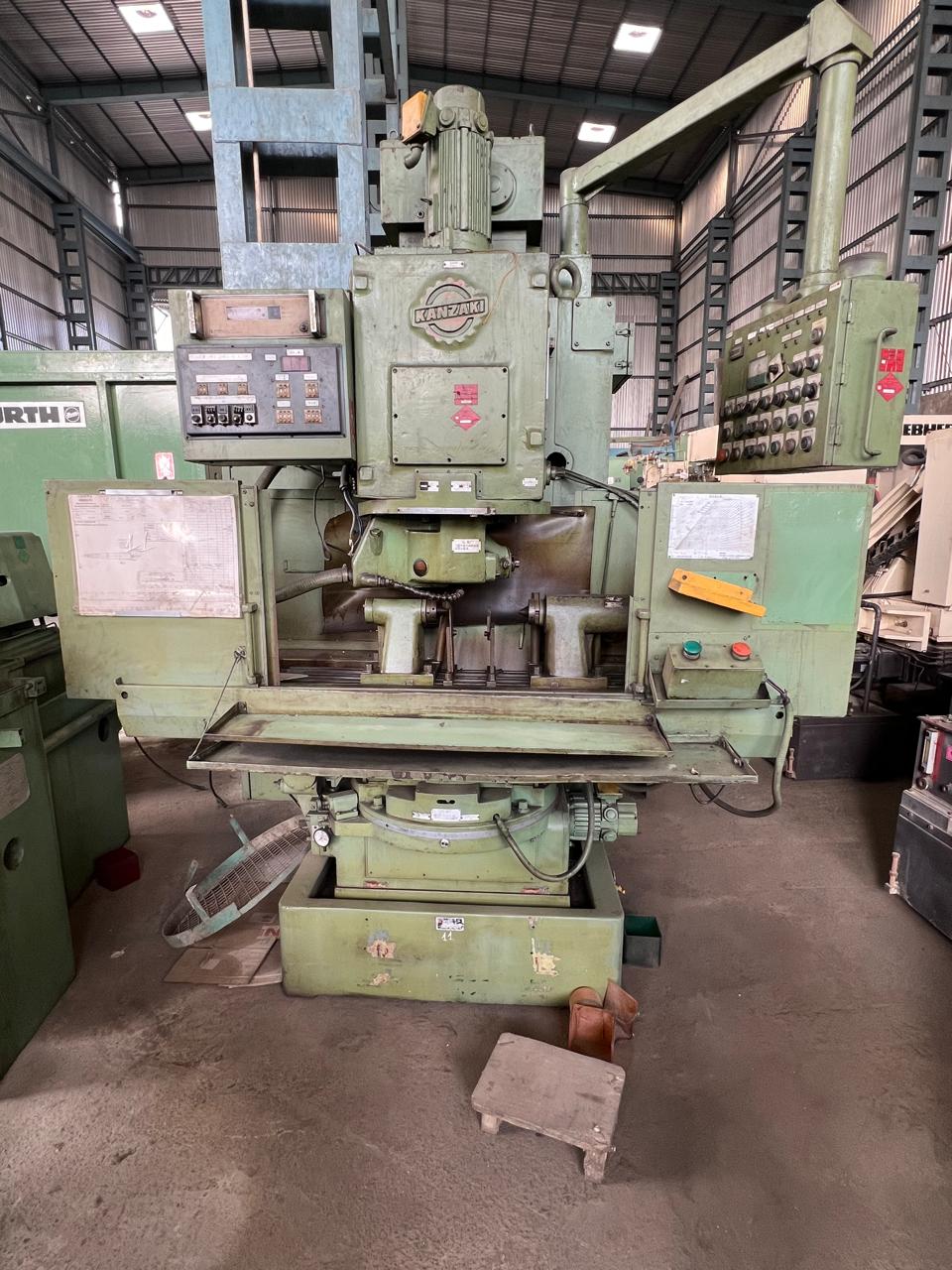

| Manufacturer / Model | Kanzaki (Japan), GSFâ400B NC5 (CNC) |
| Machine Type | CNC-controlled vertical gear shaving machine |

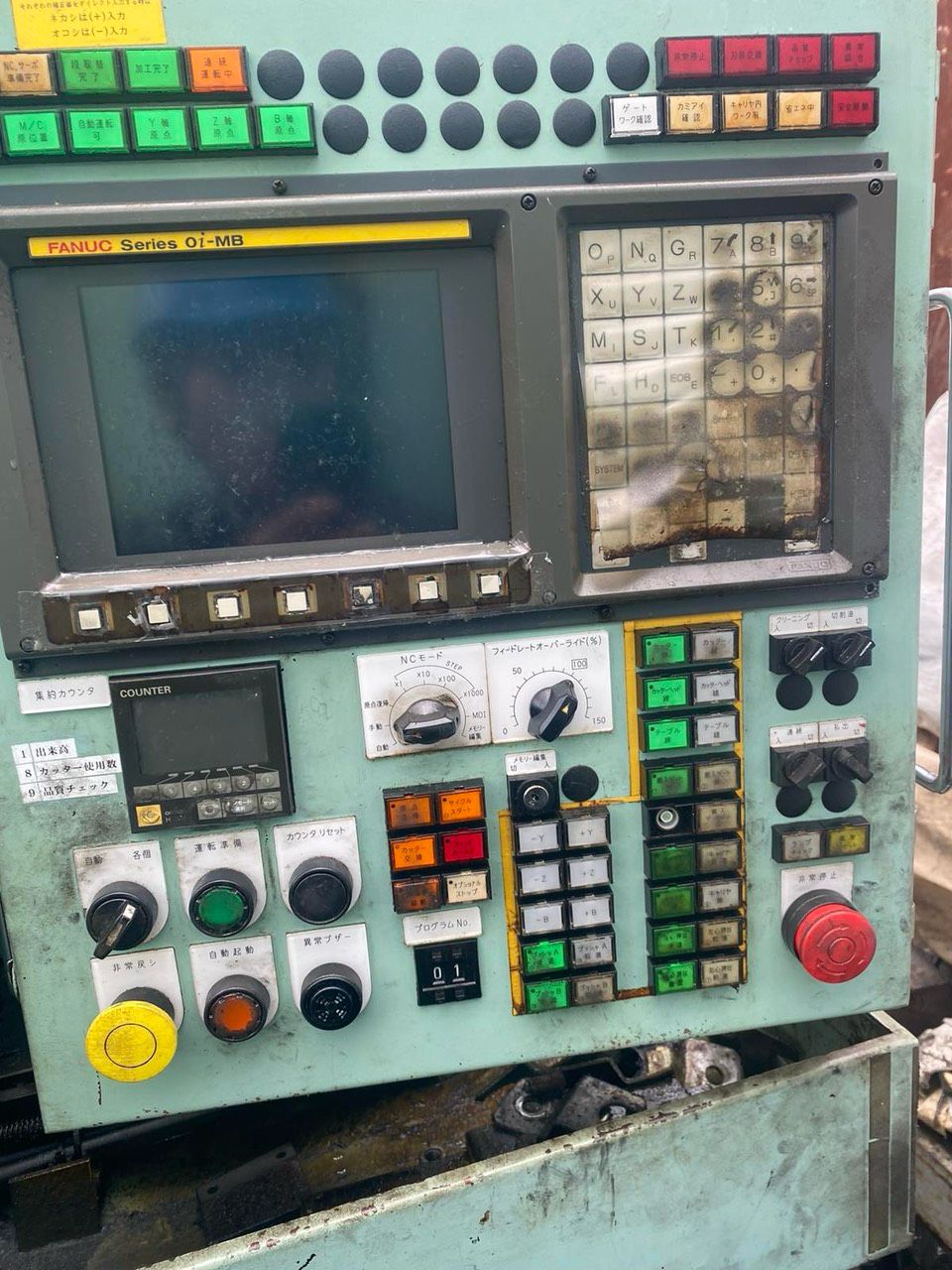

| Control System | Fanuc 6-axis CNC (commonly Fanuc 18i-M or 0i-M series) |
| Max Gear Diameter | 400â¯mm |
| Max Module | 8â¯mm |
| Max Tooth Width | 150â¯mm |
| Min Number of Teeth | ~12 (depends on gear OD/module) |
| Shaving Cutter Diameter | Up to 260â¯mm |
| Worktable Diameter | ~350â400â¯mm |
| Cutter Speed | 45â400â¯rpm |
| Feed Speed | 6â300â¯mm/min |
| Stroke Travel (Z-axis) | Up to 150â¯mm |
| Swing Angle / Tilting | ±20° / Swivel head with diagonal shaving support |
| Motor Power | 5.5â7.5â¯kW main spindle motor |
| Total Power Consumption | ~15â20â¯kVA |
| Weight | ~5,500â6,000â¯kg |
| Power Supply | 380â¯V / 50â¯Hz (3-phase) |
| Features | High-precision CNC shaving, automatic cycle, diagonal shaving, durable |
