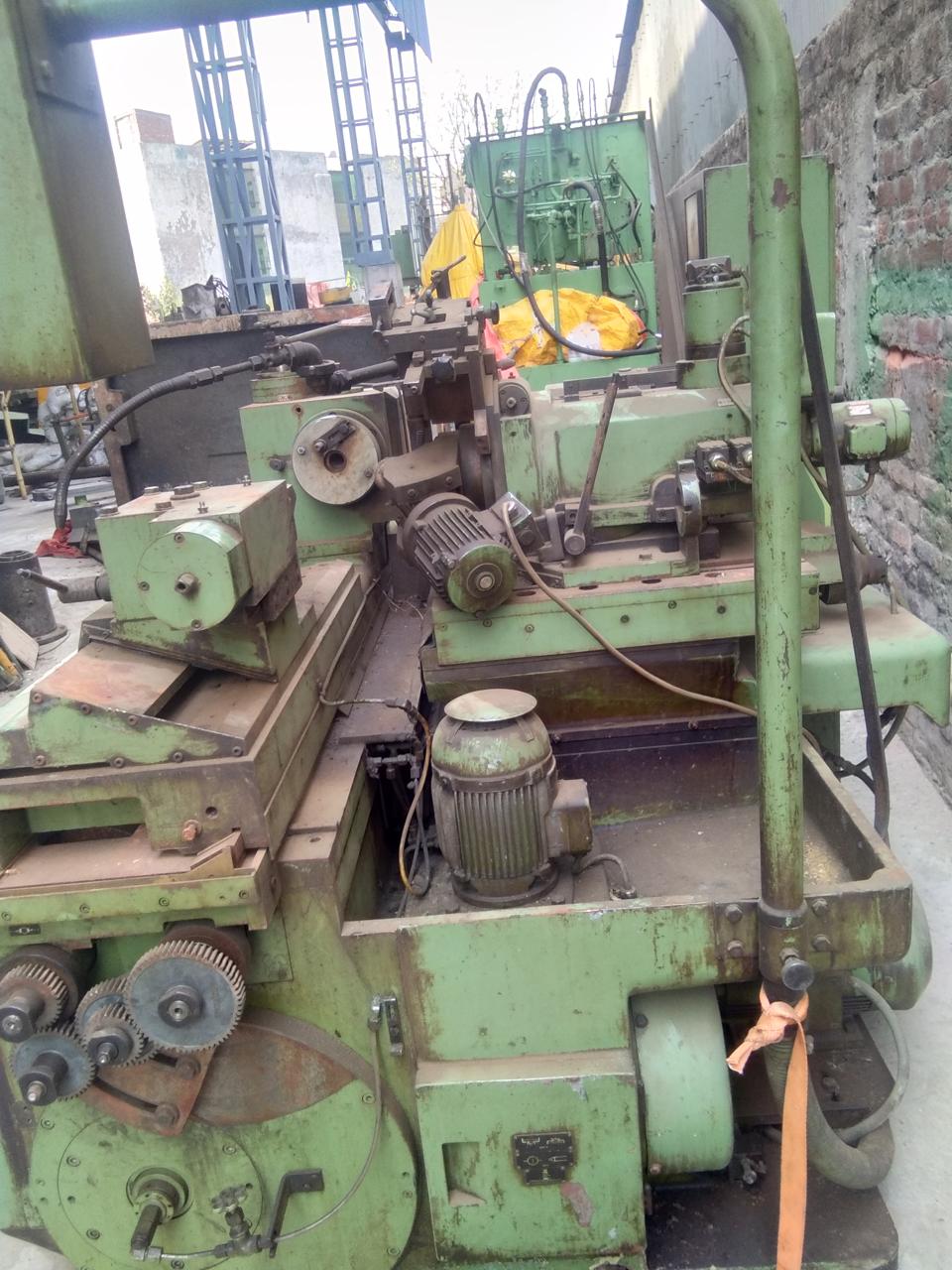

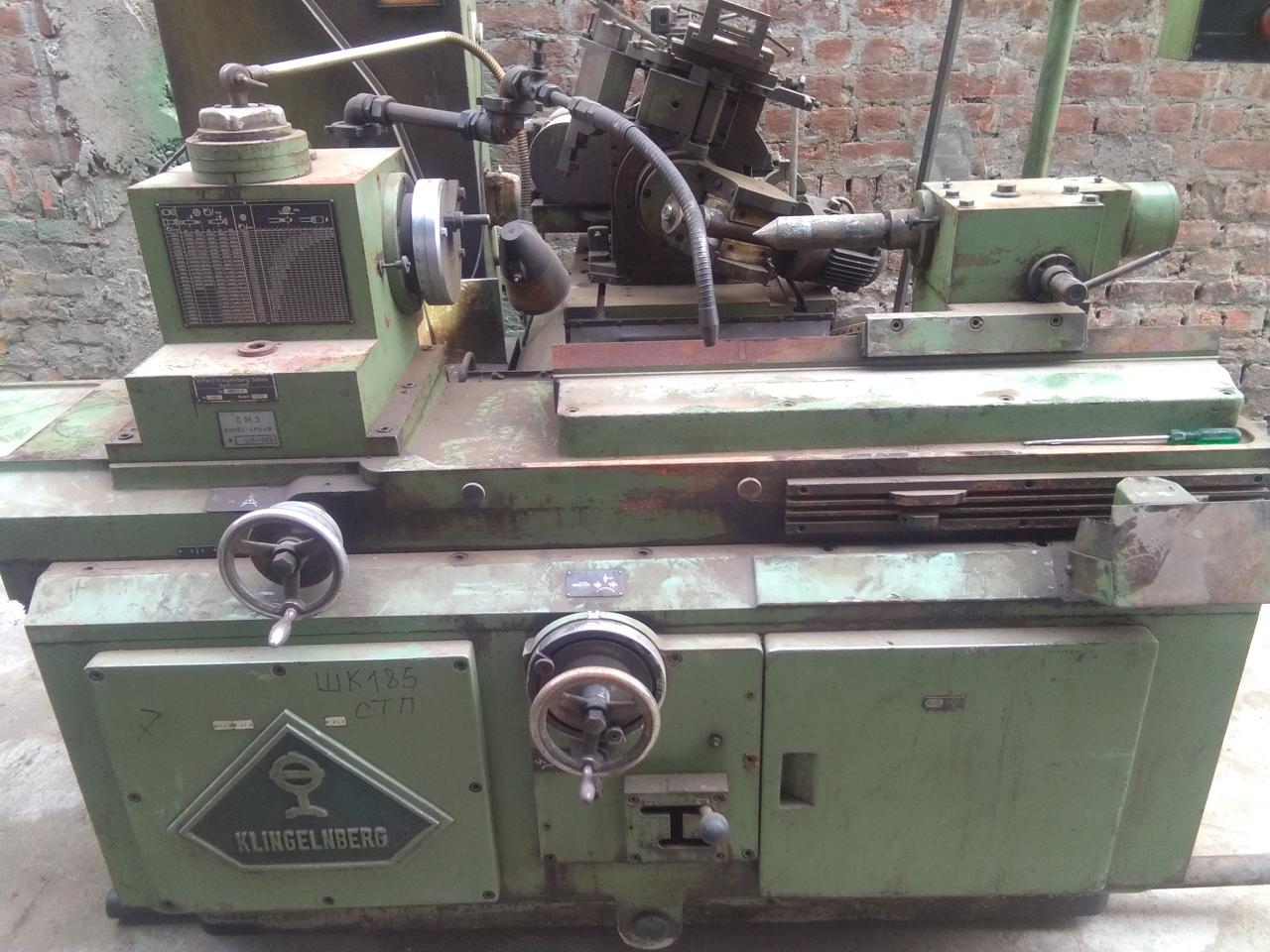

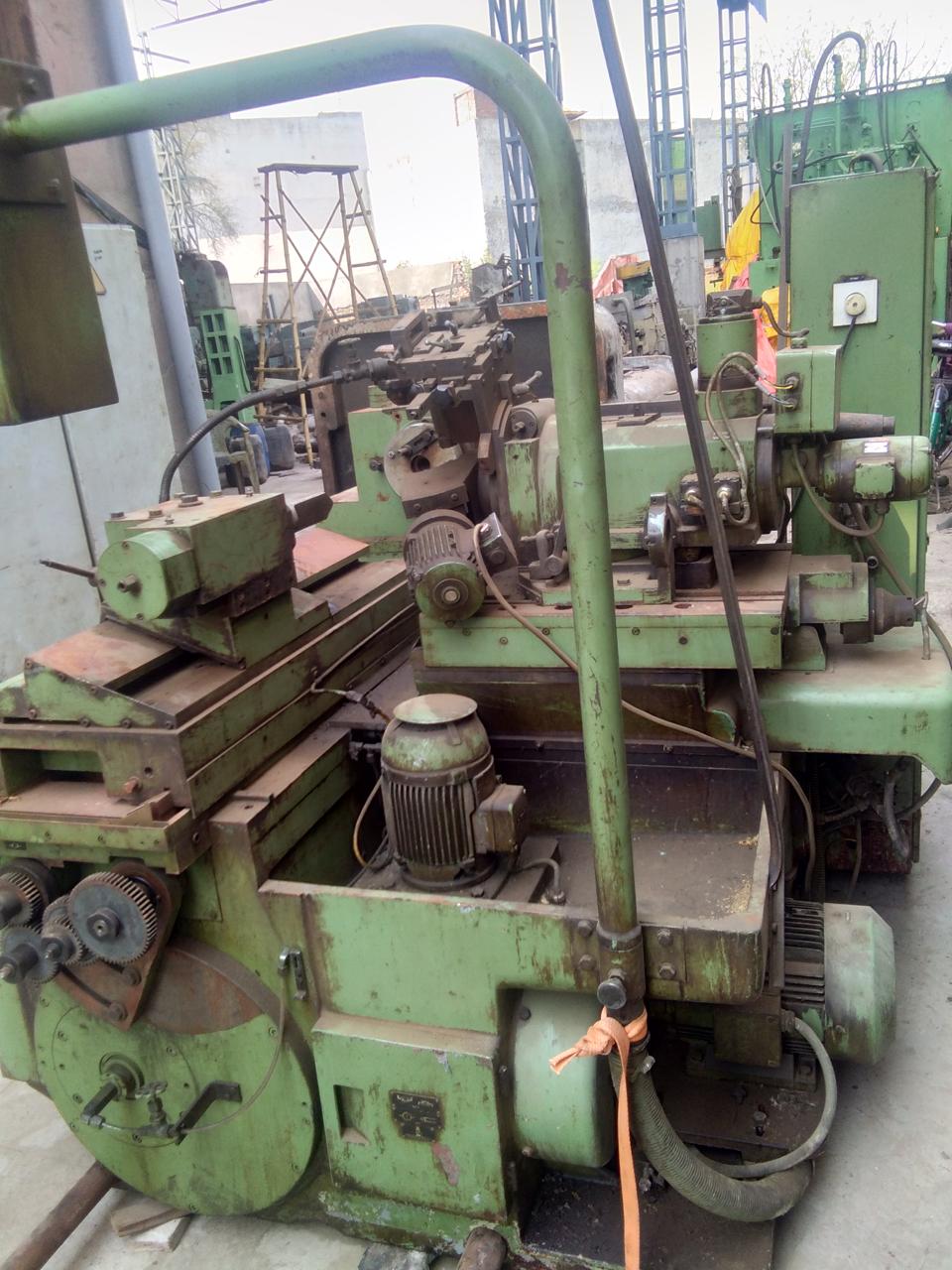

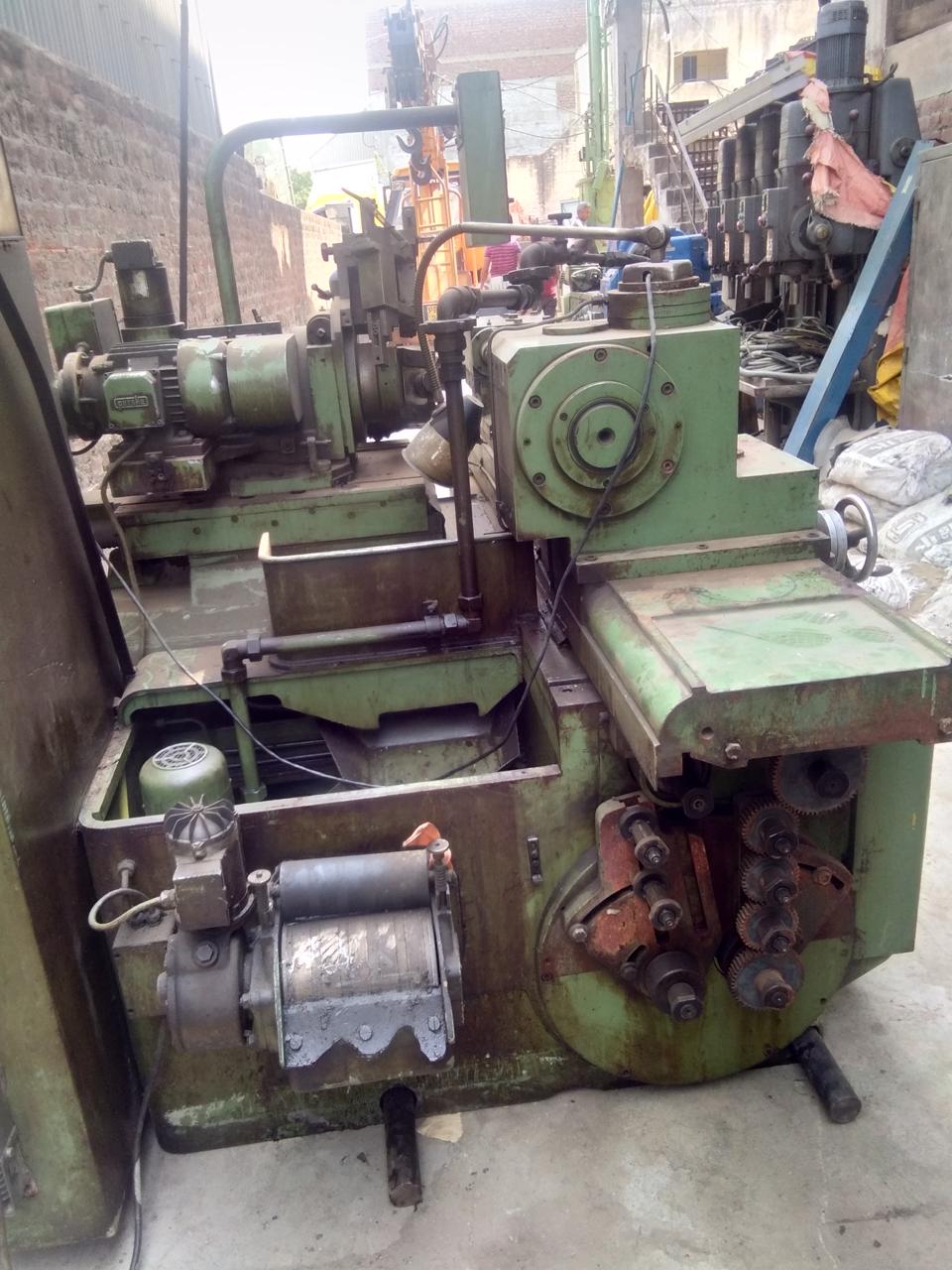

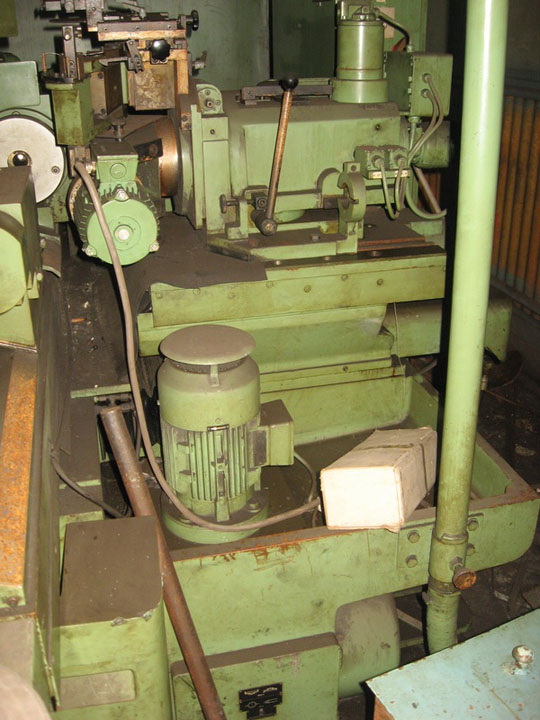

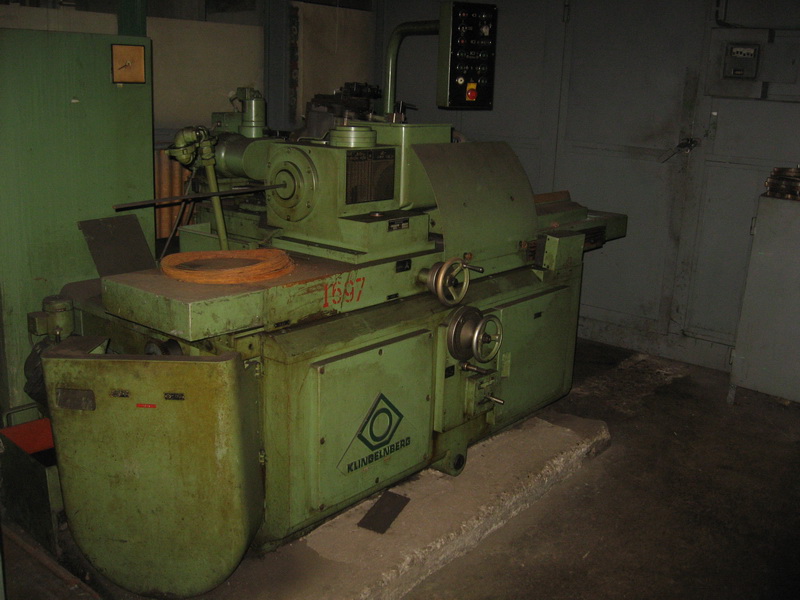

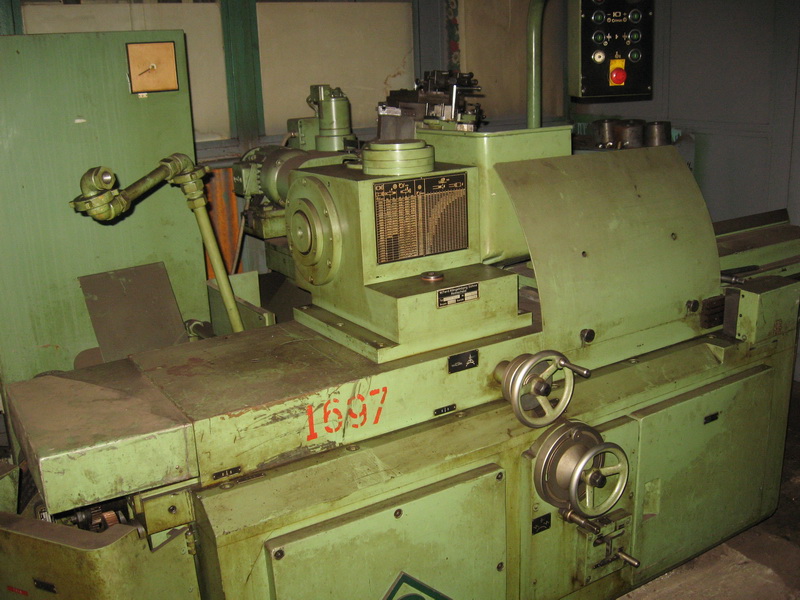

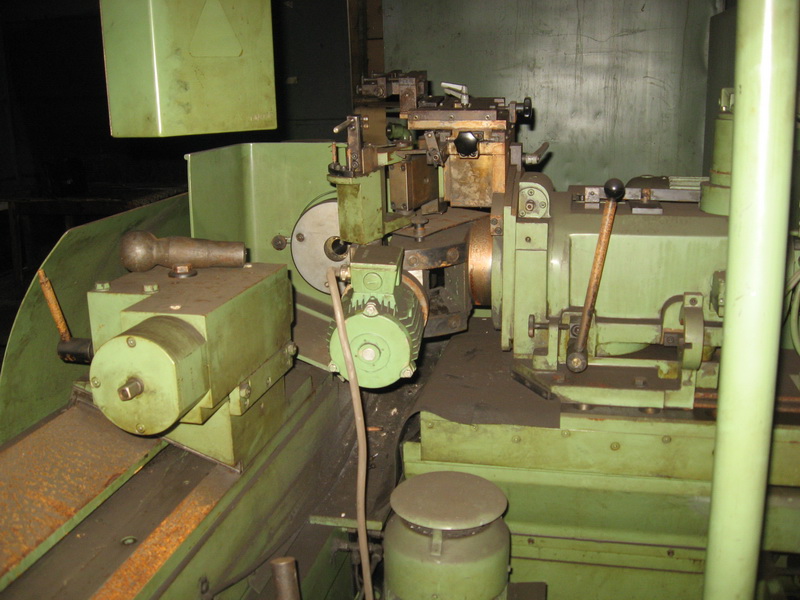

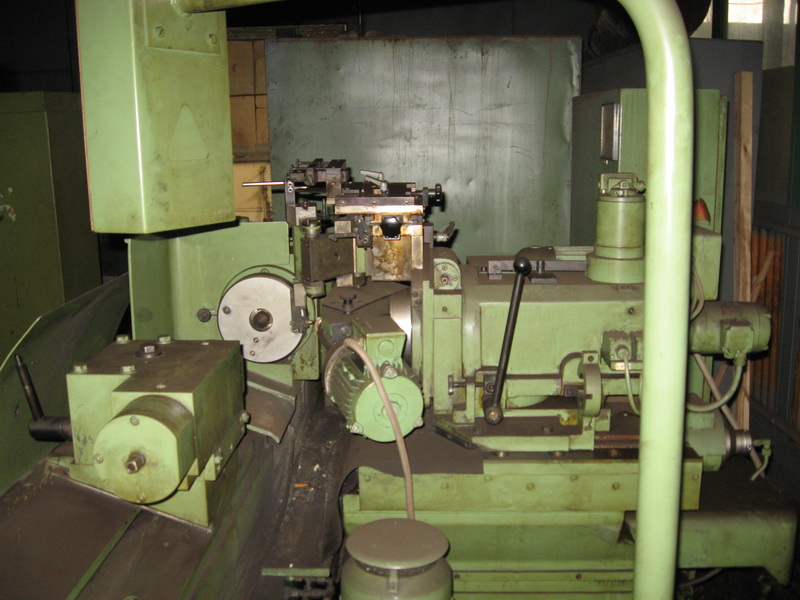

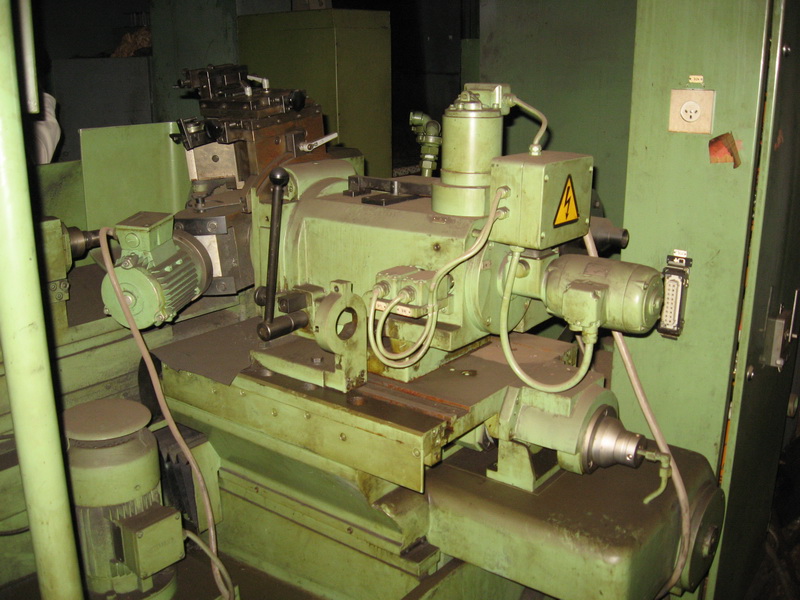

KILINGBURG HOB RELIEVE GRINDER HSF 33B

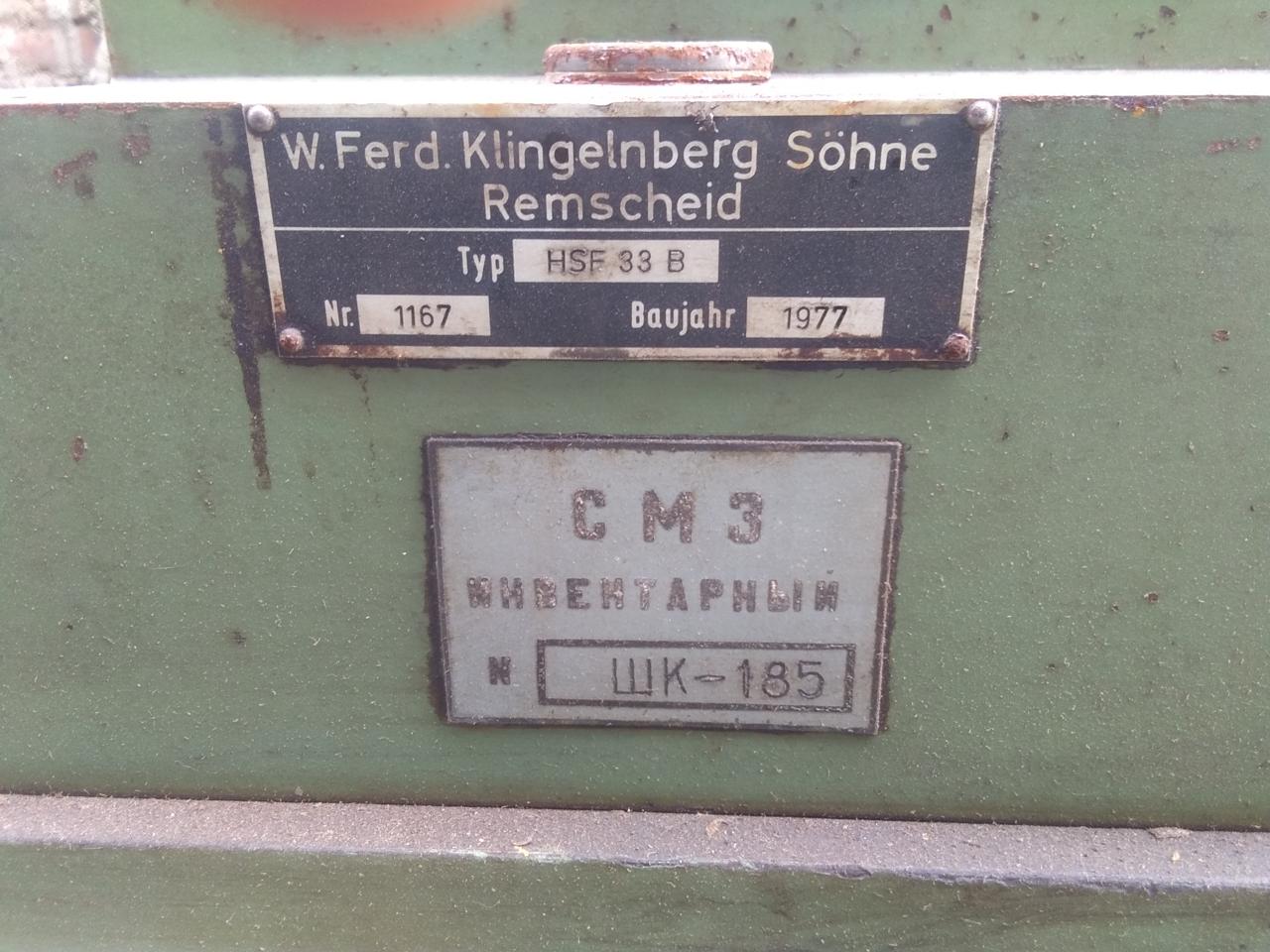

Manufacturer: Klingelnberg (Germany)
Model: HSF 33B
Max diameter of work-piece (cultivated part): 325 mm
Min diameter of work-piece: 10 mm
Max length of work-piece: 750 mm
Max length of grinding (thread mill): 450 mm
Max length of grinding (screw mill): 400 mm
Max run of coil: 250 mm
Min run of coil: 1.5 mm
Max number of runs: 30
Range of modules: 0.5 – 25 M

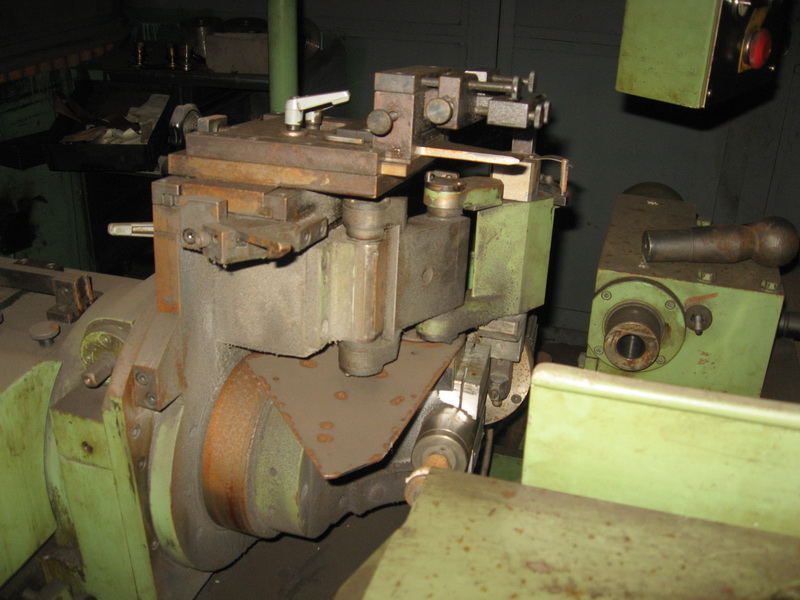

Vertical movement of diamond dresser: Up: 20 mm; Down: 10 mm
Feed step: Steplessly adjustable
Rapid front/back stroke: 1.3 mm/sec
Grinding-spindle speed range: 1,000–15,000 rpm
Machine weight: Approx. 5,400–5,500 kg
Overall dimensions (L × W × H): Approx. 2,950 × 1,810 × 1,350 mm
