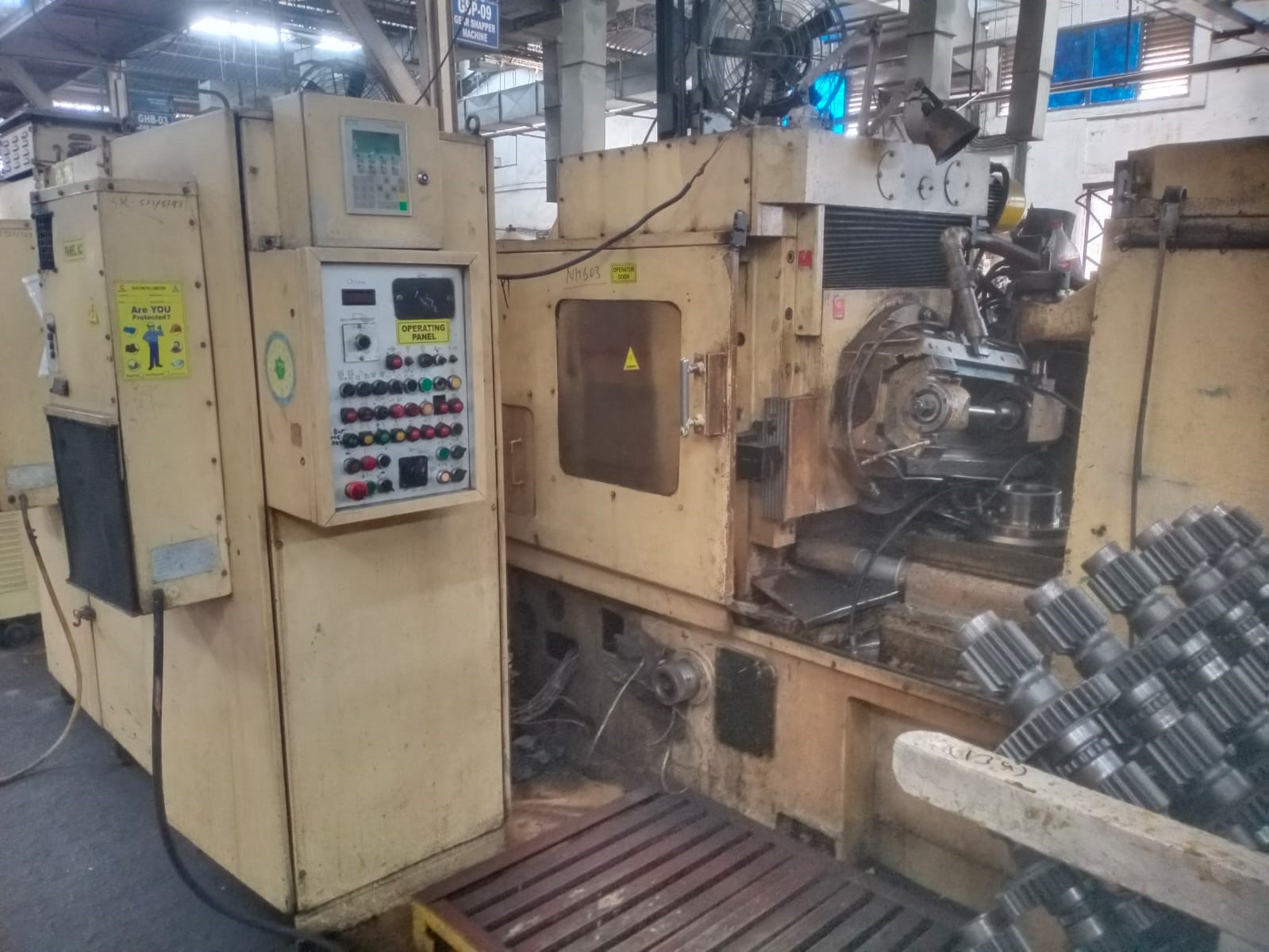

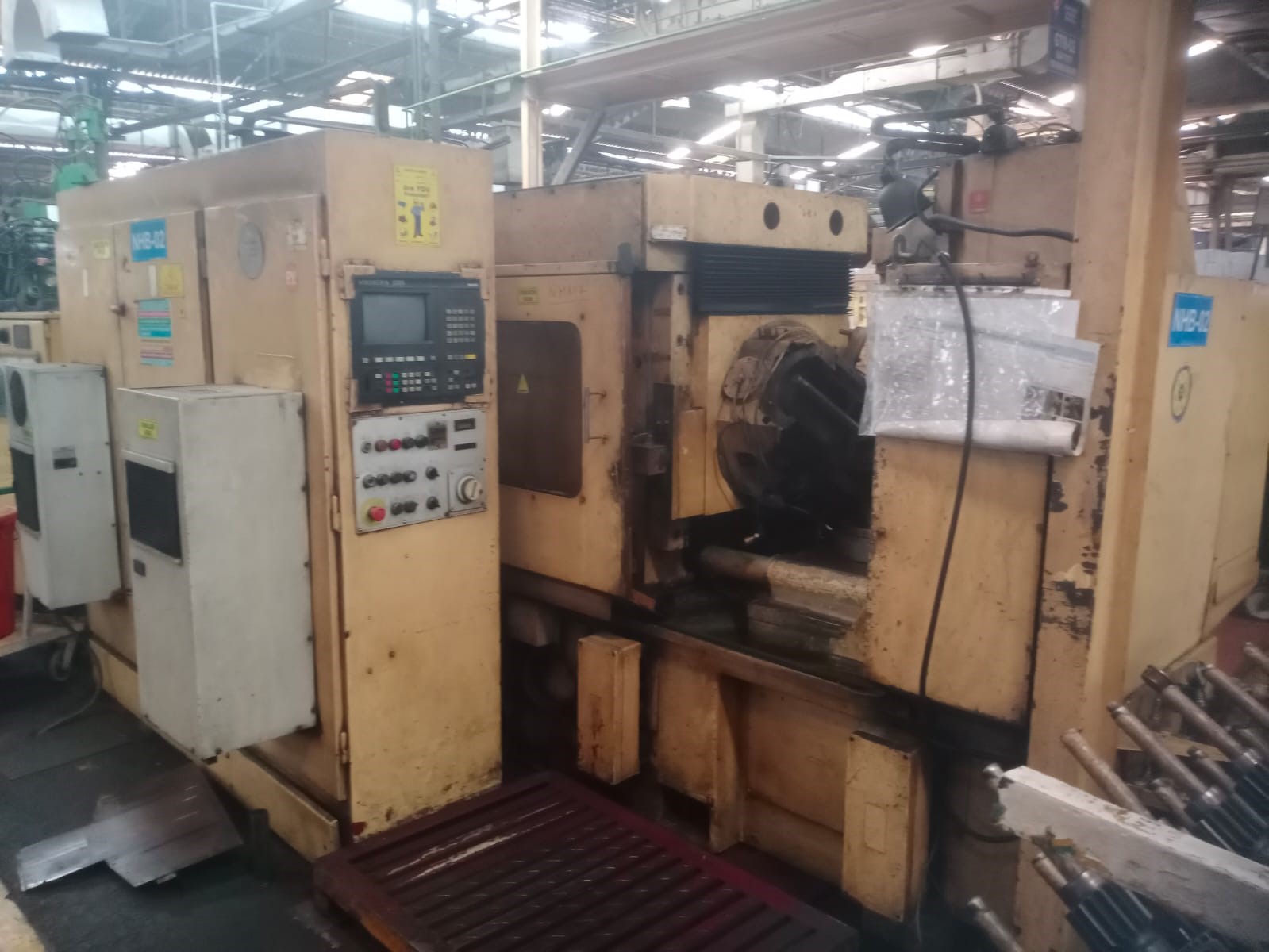

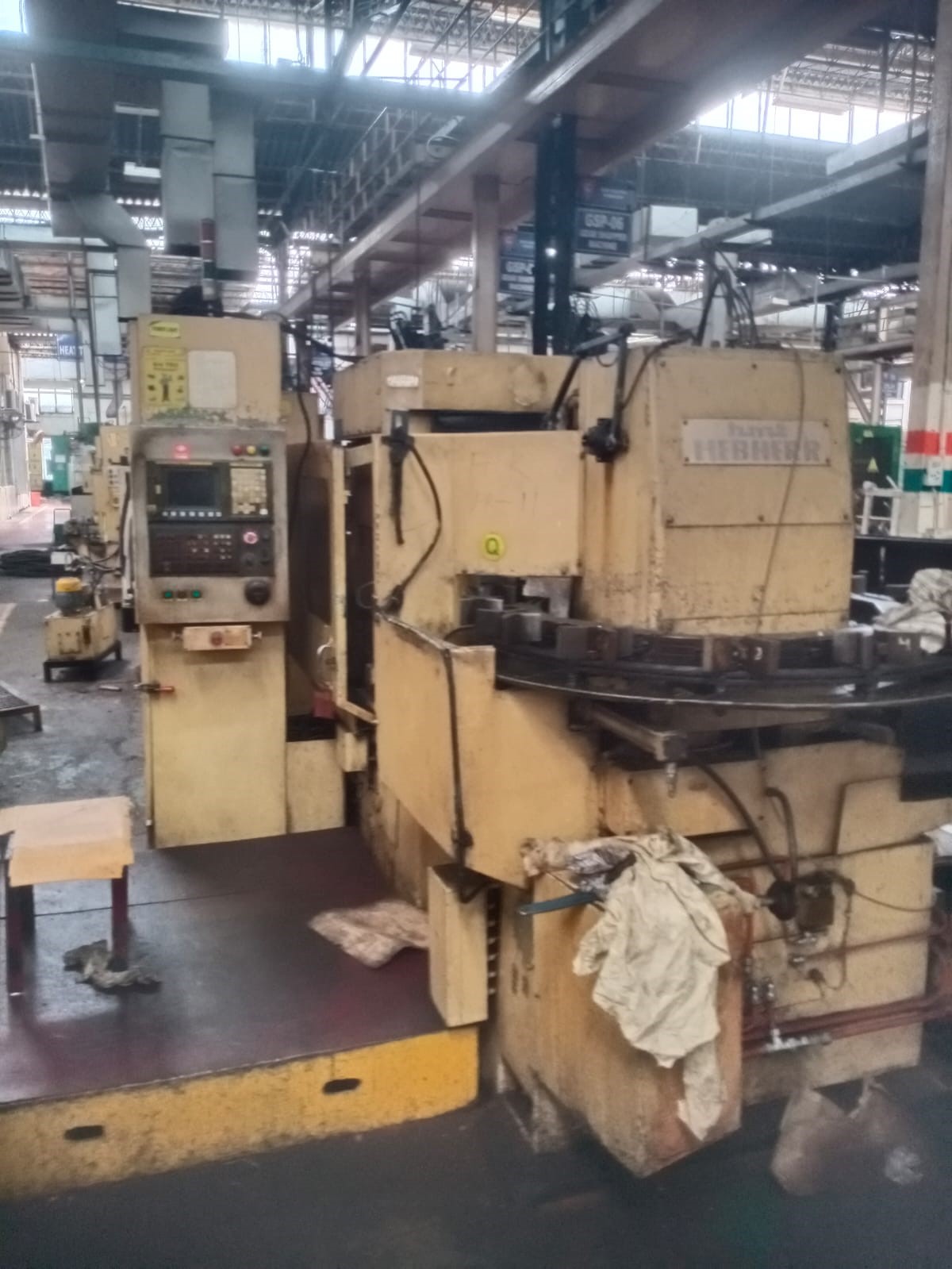

LIEBHERR L200

Manufacturer: Liebherr (Germany)
Model: L 200 (a classic vertical gear hobbing machine)
Max. Gear Diameter: 200 mm (some sources also state 250 mm)
Max. Gear Width: 200 mm
Max. Module: 8 mm
Table Diameter: 240 mm
Table Bore Diameter: 75 mm
Table Load Capacity: 30,000 N
Distance Table to Counter-Stay: 700 mm
Distance Table to Middle of Spindle: 400 mm
Milling (hob) Spindle Taper: MK 5
Milling Head Swivel Angle: 35°
Milling Spindle Speed: 100–500 rpm
Milling Cutter Diameter/Width: 192/250 mm
Adjustment of Milling Spindle (Axial Travel): 200 mm
Max. Radial Travel of Hob: 160 mm
Max. Axial Travel of Hob: 200 mm
Main Drive Power: 18 kW
Tangential & Radial Feed Ranges: Radial: 1.6–1,600 mm/min; Axial: 1–1,000 mm/min; Tangential: 0.375–375 mm/min
Machine Weight: ~9,000–11,000 kg (~10 t)
Dimensions: ~4,600 × 2,710 × 2,230 mm; footprint ~5 m × 2.7 m × 2.2 m
