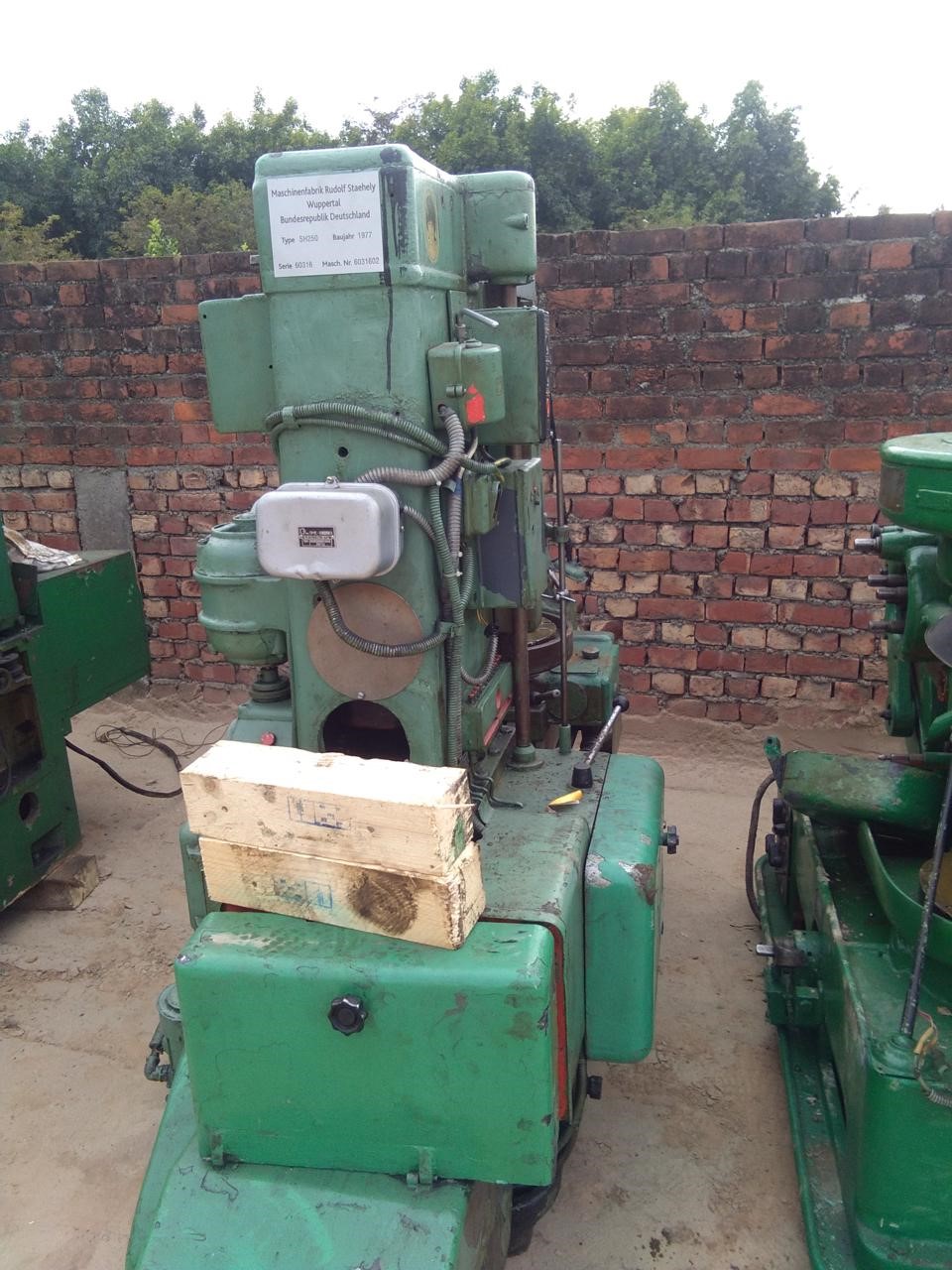

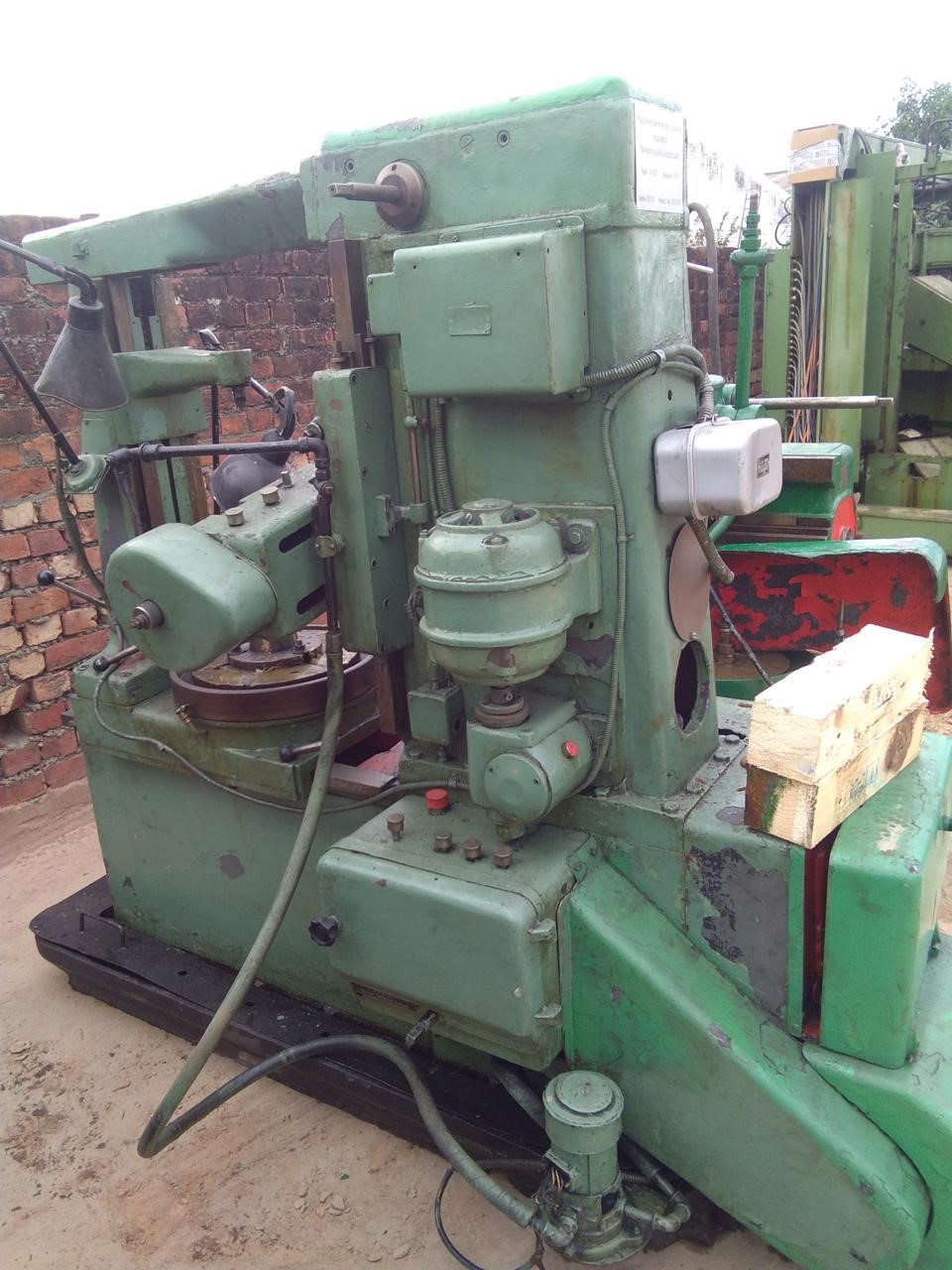

SH 250 PFAUTER HOBBING

Key Specifications

1. Machine Make: Pfauter (Germany)

2. Machine Type: Gear Hobbing Machine

3. Maximum Gear Diameter: 250 mm

4. Maximum Module Capacity: 5 – 6 Module

5. Maximum Gear Width: Approx. 200 – 240 mm

6. Table Diameter: Approx. 250 – 300 mm

7. Table Bore: 63 – 80 mm

8. Maximum Hob Diameter: 150 – 160 mm

9. Maximum Hob Length: 200 – 220 mm

10. Hob Head Swivel Angle: ±40° for cutting helical gears

11. Axial Slide Travel: Approx. 200 mm

12. Tangential Hob Shift: Approx. 170 mm

13. Center Distance (Tool to Workpiece): Approx. 25 – 225 mm

14. Hob Spindle Speed: Approx. 150 – 600 RPM

15. Main Motor Power: Approx. 6 – 13 kW
