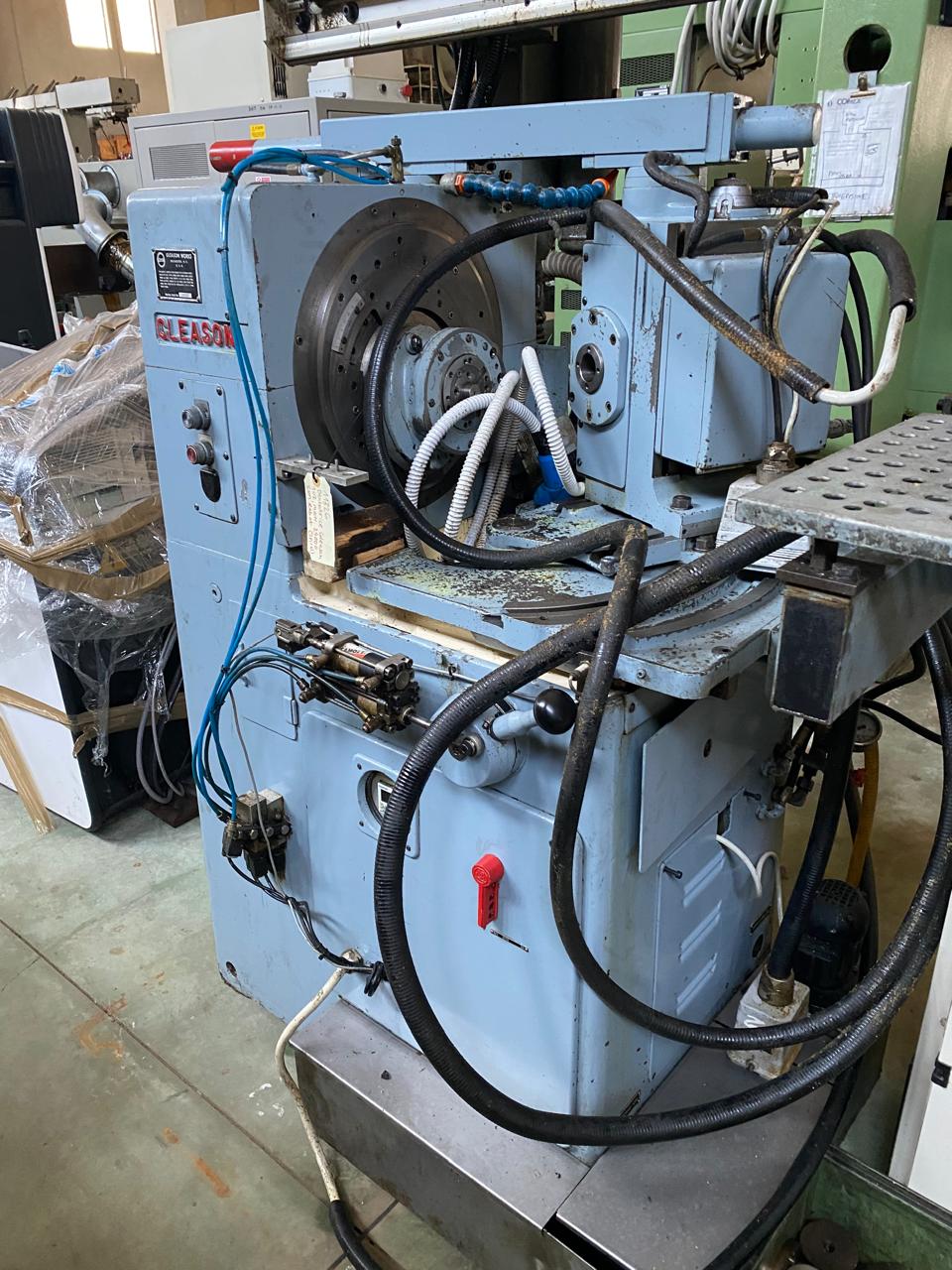

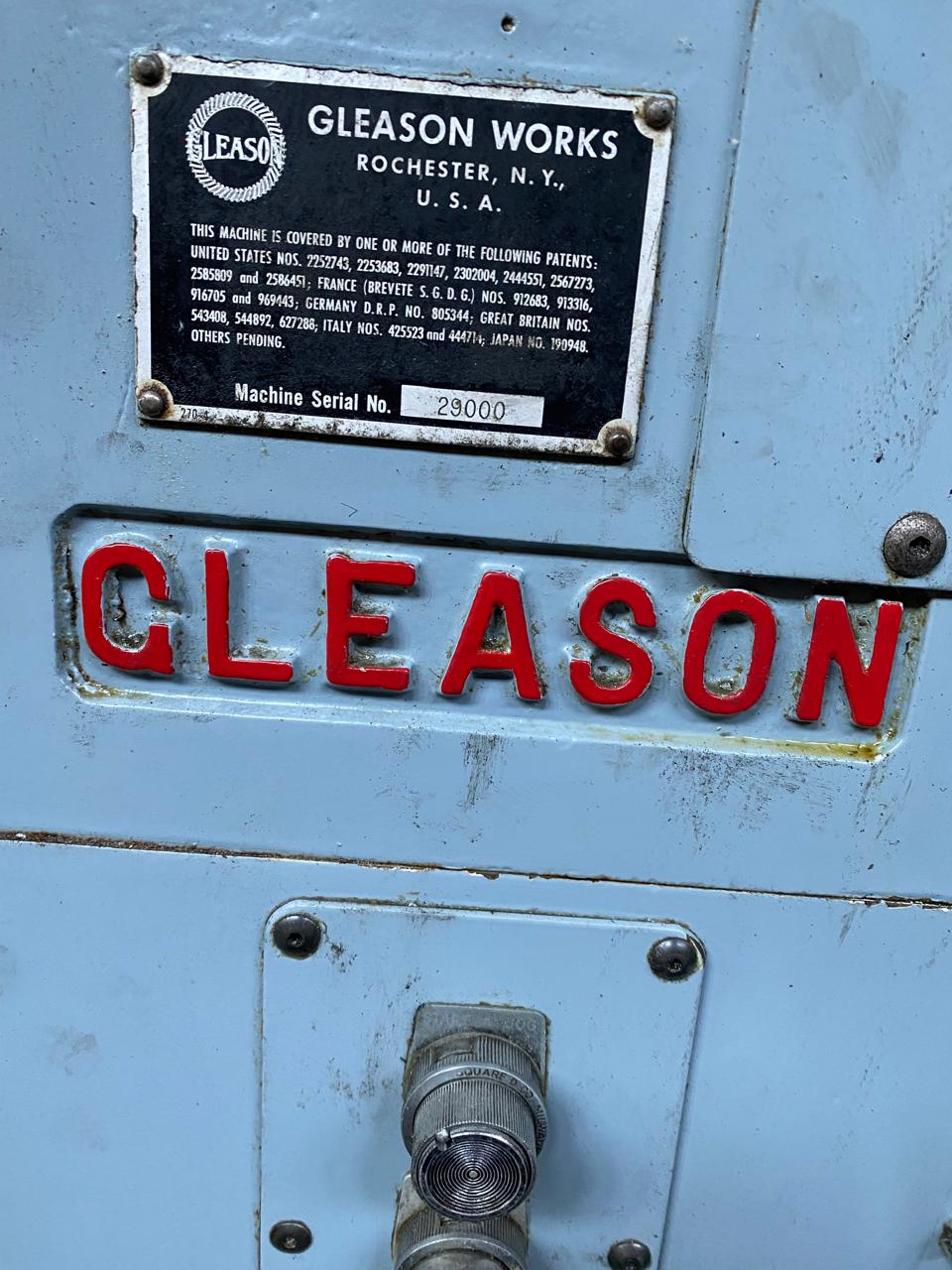

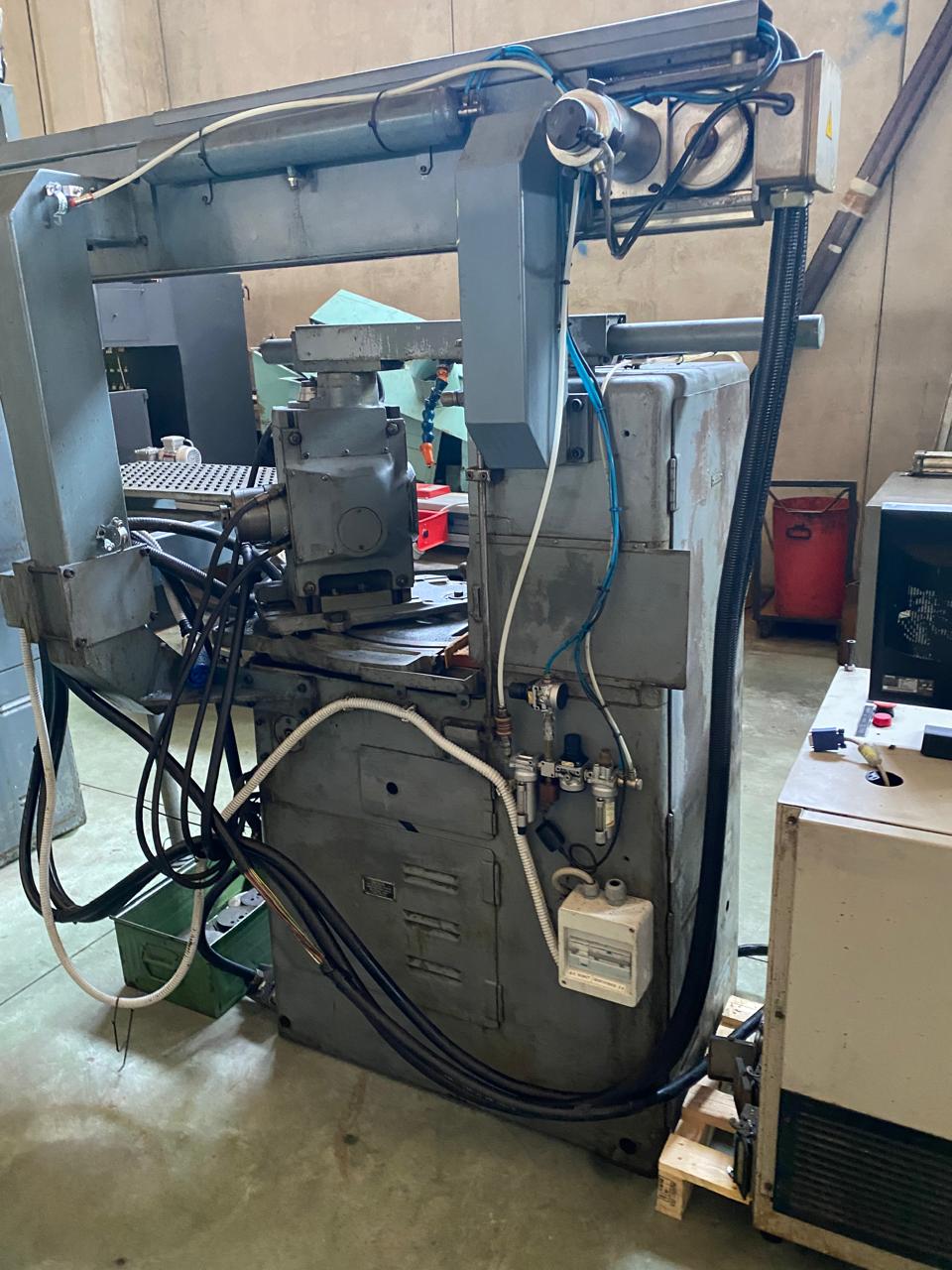

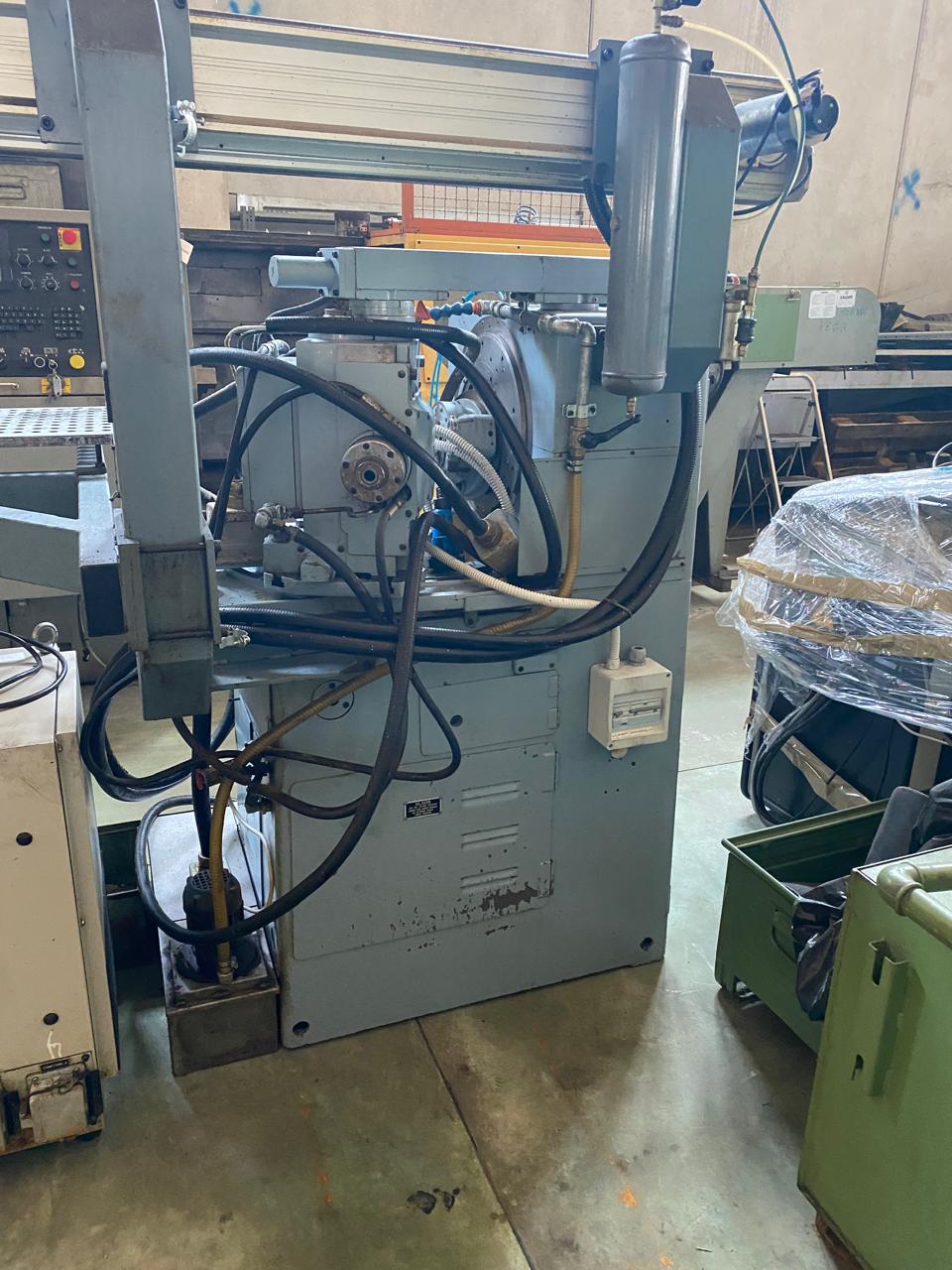

Specifications:
Diametral pitch (coarsest) 16 DP 1.6 Mod
Diametral pitch (finest) Limited only by smallest practical cutter point width
Cone Distance 0” – 2 5/16” 0 – 59mm
Workhead angle -12 deg. To 90 deg
Extreme ratio Any practical ratio
Minimum ratio for non-generated spiral bevel gears 2.5 to 1
Minimum ratio for non-generated hypoid gears 3.5 to 1
Maximum gear pitch diameter (shafts at 90 degree)
Face width ( maximum) 7/14” 11mm
Number of teeth 5-200, except prime
WORK SPINDLE
Diameter of taper bore,large end 1 17/32”
Taper ½” /ft
Depth of taper 3”
Diameter of hole through spindle ¾”
CUTTER DIAMETER 1.1”, 1.5”, 2”, 2.75” 3.5” 28mm, 38mm, 51mm,
70mm, 89mm
WORK HEAD SETTINGS
Maximum offset above centre 1” 29mm
Maximum offset below centre 1” 29mm
Max distance from machine centre to nose of spindle 5.0” 127mm
Min distance from machine centre to nose of spindle 1 ¼” 32m
